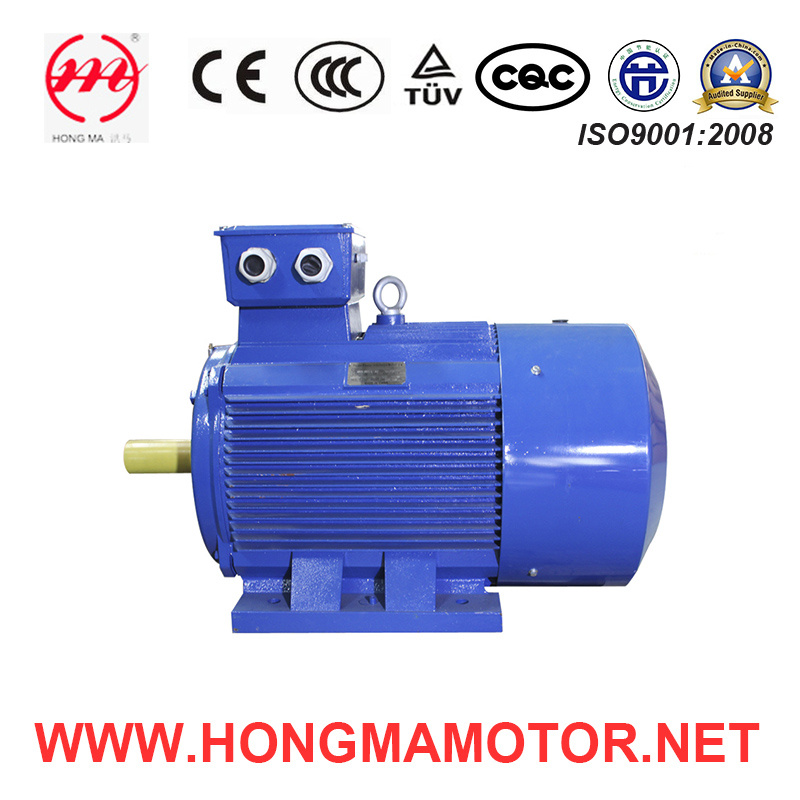

3HMI-Ie3 Series Cast-Iron Housing Premium Efficiency Motor 4pole with 45kw

Name: 3HMI-Ie3 Series Cast-Iron Housing Premium Efficiency Motor 4pole with 45kw
Brand: all-electronics-online.com
SKU: 709675632
Availability: InStock
Rating: 5 (125 reviews)

Price:	US $ 760/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	3HMI225M-4-45KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Efficiency Class:	Eff2
Frame Size:	H225
Rated Power:	45kw
Protection Class:	IP44, IP54, IP55, IP56
Frequency:	50Hz, 60Hz
Rated Voltage:	220/380V, 380/660V, 230/400
Poles:	4
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Direct on-line Starting
Certification:	IEC Standard.
Brand:	Hongma

Product Description

3HMI-IE3 Series Cast-Iron Housing Premium Efficiency Motor

3HMI-IE3 Series Motors are designed of Premium efficiency, energy saving, high quality performance, small vibration, low noise, long life, high reliability, easy maintenance and large start torque, etc. The mounting dimension and power totally conform to IEC standard within the range of frame size 80 to 355.

3HMI-IE3 Series Cast-Iron Housing Premium Efficiency Motor Characteristics and advantages:
Frame Size: H80-355
Poles: 2, 4, 6poles
Rated Power: 0.75KW-315KW
Rated Voltage: 220/380V, 380/660V, 230/400V, 400V/690V
Frequency: 50HZ, 60HZ
Protection Class: IP44, IP54, IP55, IP56
Insulation Class: B, F, H
Mounting Type:B3, B5, B35 multi and pad mounting
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

3HMI-IE3 Series Technical Data

Type		(kW)	η(%)	Cosφ	r/min	Rated current(A)			Ts/Tn		Is/In
Type		(kW)	η(%)	Cosφ	r/min	380	400	415	Ts/Tn		Is/In
3HMI	80M1-2	0.75	80.7	0.83	2880	1.70	1.62	1.56	2.2	2.3	7
3HMI	80M2-2	1.1	82.7	0.84	2880	2.41	2.29	2.20			7.9
3HMI	90S-2	1.5	84.2	0.84	2895	3.22	3.06	2.95
3HMI	90L-2	2.2	85.9	0.85	2985	4.58	4.35	4.19
3HMI	100L-2	3	87.1	0.87	2895	6.02	5.71	5.51			8.1
3HMI	112M-2	4	81.5	0.87	2905	8.57	8.14	7.85
3HMI	132S1-2	5.5	89.2	0.88	2930	10.65	10.11	9.75
3HMI	132S2-2	7.5	90.1	0.88	2930	14.37	13.65	13.16
3HMI	160M1-2	11	91.2	0.89	2945	20.59	19.56	18.85
3HMI	160M2-2	15	91.9	0.89	2945	27.86	26.47	25.51
3HMI	160L-2	18.5	92.4	0.90	2955	33.80	32.11	30.95
3HMI	180M-2	22	92.7	0.90	2955	40.07	38.06	36.69	2
3HMI	200L1-2	30	93.3	0.90	2960	54.28	51.57	49.71
3HMI	200L2-2	37	93.7	0.90	2960	66.66	63.33	61.04
3HMI	225M-2	45	94	0.90	2965	80.82	76.78	74.00
3HMI	250M-2	55	94.3	0.90	2970	98.46	93.54	90.16
3HMI	280S-2	75	94.7	0.90	2975	133.70	127.02	122.43
3HMI	280M-2	90	95	0.91	2975	158.18	150.27	144.84
3HMI	315S-2	110	95.2	0.91	2978	192.92	183.28	176.65	1.8	2.2	7.7
3HMI	315M-2	132	95.4	0.91	2978	231.02	219.47	211.54
3HMI	315L1-2	160	95.6	0.92	2980	276.40	262.58	253.09
3HMI	315L2-2	200	95.8	0.92	2980	344.78	327.54	315.70
3HMI	355M-2	250	95.8	0.92	2982	430.98	409.43	394.63	1.6
3HMI	355L-2	315	95.8	0.92	2982	543.03	515.88	497.23	1.6
3HMI	802-4	0.75	82.5	0.76	1420	1.82	1.73	1.66	2.3	2.3	6.5
3HMI	90S-4	1.1	84.1	0.77	1445	2.58	2.45	2.36
3HMI	90L-4	1.5	85.3	0.79	1445	3.38	3.21	3.10
3HMI	100L1-4	2.2	86.7	0.81	1435	4.76	4.52	4.36			7.5
3HMI	100L2-4	3	87.7	0.82	1435	6.34	6.02	5.80
3HMI	112M-4	4	88.6	0.82	1440	8.37	7.95	7.66
3HMI	132S-4	5.5	89.6	0.83	1460	11.24	10.68	10.29
3HMI	132M-4	7.5	90.4	0.84	1460	15.01	14.26	13.74
3HMI	160M-4	11	91.4	0.84	1465	21.77	20.68	19.93	2.2		8.9
3HMI	160L-4	15	92.1	0.85	1465	29.11	27.66	26.66			8.9
3HMI	180M-4	18.5	92.6	0.86	1470	35.30	33.53	32.32			7.9
3HMI	180L-4	22	93	0.86	1470	41.79	39.70	38.27
3HMI	200L-4	30	93.6	0.86	1475	56.63	53.79	51.85
3HMI	225S-4	37	93.9	0.87	1485	68.82	65.37	63.01
3HMI	225M-4	45	94.2	0.87	1485	83.43	79.26	76.39
3HMI	250M-4	55	94.6	0.87	1485	101.54	96.46	92.97
3HMI	280S-4	75	95	0.87	1486	137.88	130.98	126.25
3HMI	280M-4	90	95.2	0.87	1486	165.10	156.85	151.18
3HMI	315S-4	110	95.4	0.88	1488	199.08	189.13	182.29	2.1	2.2	7.6
3HMI	315M-4	132	95.6	0.88	1488	238.40	226.48	218.29
3HMI	315L1-4	160	95.8	0.89	1488	285.12	270.87	261.08
3HMI	315L2-4	200	96	0.89	1490	355.66	337.88	325.67
3HMI	355M-4	250	96.0	0.90	1490	439.64	417.66	402.56
3HMI	355L-4	315	96.0	0.90	1490	553.94	526.25	507.23
3HMI	90S-6	0.75	78.9	0.72	935	2.01	1.91	1.84
3HMI	90L-6	1.1	81	0.73	945	2.83	2.69	2.59
3HMI	100L-6	1.5	82.5	0.75	949	3.68	3.50	3.37
3HMI	112M-6	2.2	84.3	0.76	955	5.22	4.96	4.78
3HMI	132S-6	3	85.6	0.76	968	7.01	6.66	6.42
3HMI	132M1-6	4	86.8	0.76	968	9.21	8.75	8.44
3HMI	132M2-6	5.5	88	0.77	968	12.33	11.72	11.29
3HMI	160M-6	7.5	89.1	0.77	970	16.61	15.78	15.21
3HMI	160L-6	11	90.3	0.78	970	23.73	22.54	21.73
3HMI	180L-6	15	91.2	0.81	978	30.85	29.31	28.25
3HMI	200L1-6	18.5	91.7	0.81	980	37.84	35.95	34.65
3HMI	200L2-6	22	92.2	0.83	980	43.68	41.50	40.00
3HMI	225M-6	30	92.9	0.84	980	58.41	55.49	53.48
3HMI	250M-6	37	93.9	0.86	985	69.62	66.13	63.74
3HMI	280S-6	45	93.7	0.86	985	84.85	80.61	77.69
3HMI	280M-6	55	94.1	0.86	985	103.26	98.10	94.55
3HMI	315S-6	75	94.6	0.86	988	140.07	133.06	128.26
3HMI	315M-6	90	94.9	0.86	988	167.55	159.17	153.42
3HMI	315L1-6	110	95.1	0.86	988	204.35	194.14	187.12
3HMI	315L2-6	132	95.4	0.87	988	241.64	229.56	221.26
3HMI	355M1-6	160	95.6	0.88	990	288.97	274.52	264.60
3HMI	355M3-6	200	95.8	0.88	990	360.45	342.43	330.05
3HMI	355L2-6	250	95.8	0.88	990	450.57	428.04	412.57

3HMI-IE3 Series Outline Dimensions .

TYPE		MOUNTING DIMENSIONS																OVERALL DIMENSIONS
EFF LEVEL	Frame	A	B	C	D	E	F	G	H	K	Z	KK	P	M	N	S	T	AB	AC	AD	HD	L
3HMI-IE3	80M	125	100	50	19	40	6	15.5	80	10	M6×16	1-M20×1.5	200	165	130	12	3.5	152	153	122	202	290
3HMI-IE3	90S	140	100	56	24	50	8	20	90	10	M8×19	2-M20×1.5	200	165	130	12	3.5	168	172	135	225	315
3HMI-IE3	90L	140	125	56	24	50	8	20	90	10	M8×19	2-M20×1.5	200	165	130	12	3.5	168	172	135	225	340
3HMI-IE3	100L	160	140	63	28	60	8	24	100	12	M10×22	2-M20×1.5	250	215	180	15	4	192	193	145	245	370
3HMI-IE3	112M	190	140	70	28	60	8	24	112	12	M10×22	2-M25×1.5	250	215	180	15	4	222	223	165	277	395
3HMI-IE3	132S	216	140	89	38	80	10	33.3	132	12	M12×28	2-M25×1.5	300	265	230	15	4	248	265	208	340	470
3HMI-IE3	132M	216	178	89	38	80	10	33.3	132	12	M12×28	2-M25×1.5	300	265	230	15	4	248	265	208	340	500
3HMI-IE3	160M	254	210	108	42	110	12	37	160	15	M12×28	2-M40×1.5	350	300	250	19	5	315	330	260	420	605
3HMI-IE3	160L	254	254	108	42	110	12	37	160	15	M12×28	2-M40×1.5	350	300	250	19	5	315	330	260	420	680
3HMI-IE3	180M	279	241	121	48	110	14	42.5	160	15	M12×28	2-M40×1.5	350	300	250	19	5	350	352	285	445	694
3HMI-IE3	180L	279	279	121	48	110	14	42.5	160	15	M12×28	2-M40×1.5	350	300	250	19	5	350	352	285	445	732
3HMI-IE3	200L	318	305	133	55	110	16	49	200	19	M20×42	2-M50×1.5	400	350	300	19	5	390	394	315	515	774
3HMI-IE3	225S(4-8P)	356	286	149	60	140	18	53	225	19	M20×42	2-M50×1.5	450	400	350	19	5	435	442	335	560	820
3HMI-IE3	225M(2P)	356	311	149	55	110	16	49	225	19	M20×42	2-M50×1.5	450	400	350	19	5	435	442	335	560	813
3HMI-IE3	225M(4-8P)	356	311	149	60	140	18	53	225	19	M20×42	2-M50×1.5	450	400	350	19	5	435	442	335	560	873
3HMI-IE3	250M(2P)	406	349	168	60	140	18	53	250	24	M20×42	2-M63×1.5	550	500	450	19	5	490	481	375	625	922
3HMI-IE3	250M(4-8P)	406	349	168	65	140	18	58	250	24	M20×42	2-M63×1.5	550	500	450	19	5	490	481	375	625	922
3HMI-IE3	280S(2P)	457	368	190	65	140	18	58	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	991
3HMI-IE3	280M(2P)	457	419	190	65	140	18	58	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	1040
3HMI-IE3	280S(4-8P)	457	368	190	75	140	20	67.5	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	991
3HMI-IE3	280M(4-8P)	457	419	190	75	140	20	67.5	280	24	M20×42	2-M63×1.5	550	500	450	19	5	547	550	400	680	1040
3HMI-IE3	315S(2P)	508	406	216	65	140	18	58	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1160
3HMI-IE3	315M(2P)	508	457	216	65	140	18	58	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1270
3HMI-IE3	315L(2P)	508	508	216	65	140	18	58	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1270
3HMI-IE3	315S(4-10P)	508	406	216	80	170	22	71	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1190
3HMI-IE3	315M(4-10P)	508	457	216	80	170	22	71	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1300
3HMI-IE3	315L(4-10P)	508	508	216	80	170	22	71	315	28	M20×42	2-M63×1.5	660	600	550	24	6	630	600	540	855	1300
3HMI-IE3	355M(2P)	610	560	254	75	140	20	67.5	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1500
3HMI-IE3	355L(2P)	610	630	254	75	140	20	67.5	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1500
3HMI-IE3	355M(4-10P)	610	560	254	95	170	25	86	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1530
3HMI-IE3	355L(4-10P)	610	630	254	95	170	25	86	355	28	M20×42	2-M63×1.5	800	740	680	24	6	730	710	655	1010	1530

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
