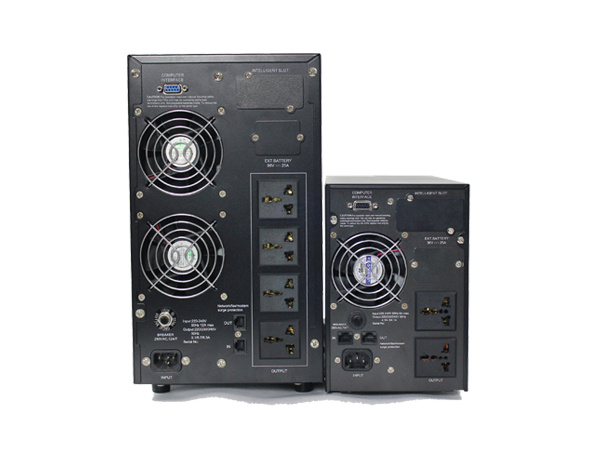

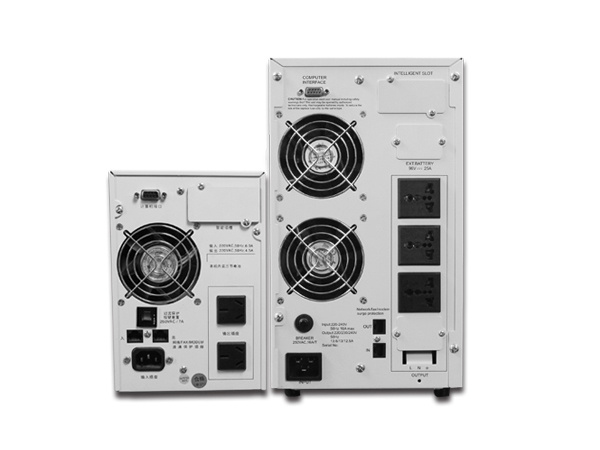

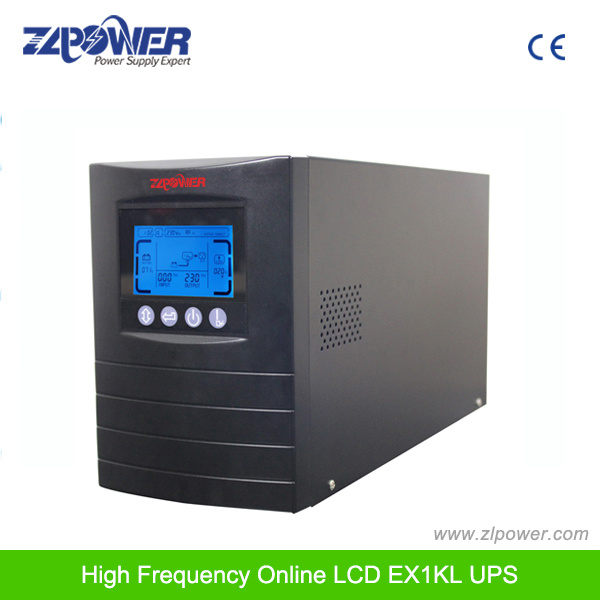

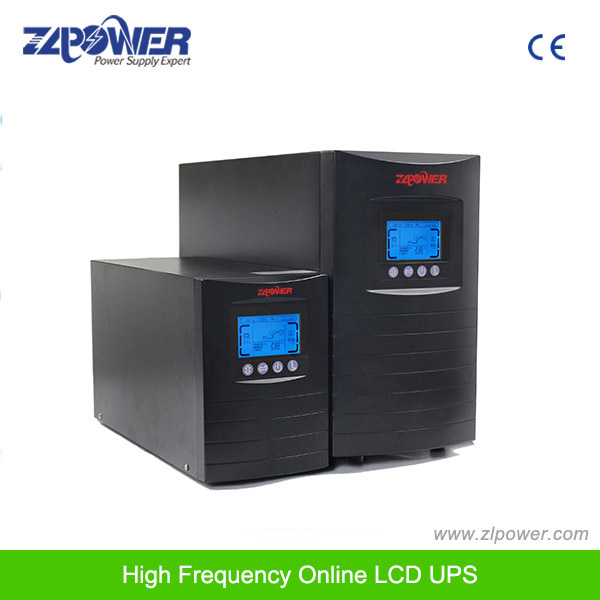

3kVA/2400W High Frequency Online UPS Uninterruptible Power Supply (EX3K/T3K)
| Price: |
US $ 206-217/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
EX1-3kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
3kVA/2400W Online UPS Uninterruptible Power Supply |
| Wave Form: |
Pure Sine Wave Form |
| Optional Internal Batteries: |
Yes |
| Phase Type: |
Single Phase |
| Output Power Factor: |
0.8 |
| Transfer Time: |
0ms |
| Appliances: |
Homage UPS, Bank, Hospital, Severs etc |
| Display: |
LED/LCD Display |
| Warranty: |
2 Years |
| Applications: |
Hospital Bureau Telecom |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Zlpower |
| Output Capacity: |
3kVA |
Product Description
3KVA/2400W Online UPS Uninterruptible Power Supply

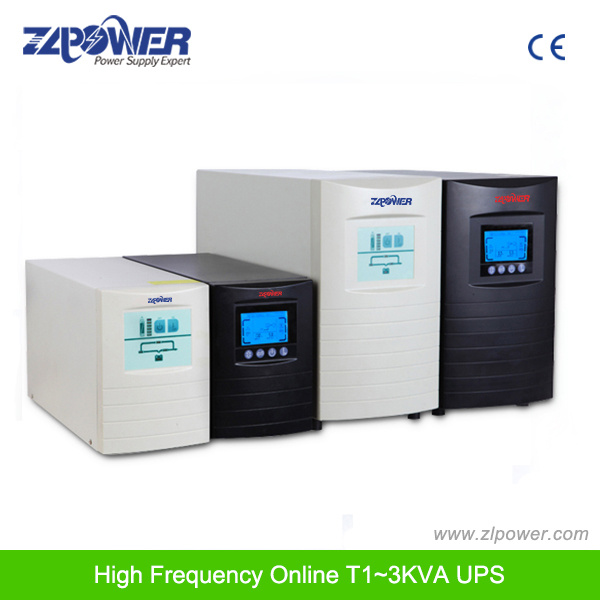

1-10kva Single phase UPS Power Range
>>Application
Specially designed for servers data-center critical network devices,sensitive electronic euipment,telecom, bank,hospital, bureau,traffic,public security,Army and so on...
>>Main Feature
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
*Output Voltage, Frequency parameter and bypass function can be set via the display.
*Advanced MCU microprocessor control technology and DSP technology, ensure long life reliability.
*192vdc battery input voltage.
*Wide input AC voltage range, Zero transfer time
*True online double conversion technology.
*N+X Parallel Redundancy
*Excellent Protection against over voltage, over load, over current, over charge and so on.
*Input L and N lines reverse wiring detection, Auto start when AC back.
*DC start function, Input PFC revise function.
*Humanization bypass output can be adjustable.
*Smart RS232 communication with monitoring software
*Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
*Available to work with generators.
*Lightning, surge, short circuit, Network/fax/modem surge protection
>>Specification
| Online UPS MODEL | EX6K | EX10K | EX6KL | EX10KL | EX3110KL | EX3115KL | EX3120KL |
| CAPACITY | VA/W | 6KVA/4.8KW | 10KVA/8KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| INPUT | Nominal Voltage | 220/230/240VAC | 380VAC |
| Voltage Range | 120-275VAC | 210-475VAC |
| Frequency Range | 46-64Hz: 50Hz, 60Hz auto sense |
| Phase | Single phase with Ground | Three phase (4 Wires+Ground) |
| Power Factor | >=0.99 | >=0.95 |
| OUTPUT | Voltage | 220/230/240*(1±1%)VAC |
| Frequency | 50/60Hz(Adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.1%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.1%) |
| Wave Form | Pure Sine Wave |
| Power Factor | 0.8 |
| Harmonic Distortion | =<2% THD (Linear Load), =<6% THD (Non-Linear Load) |
| Overload Capacity | Normal when load < 105%; 105%-125% for 1 min, 125%-150% for 30sec |
| Current Crest Ratio | 3:1 |
| Connections | Terminal block |
| Efficiency | To AC Mode | 88% | 85% |
| To Battery Mode | up to 90% |
| Battery | Type | Sealed free maintenance lead acid battery |
| Nominal DC voltage | Built in batteries 12v7.2ah*16pcs | 192VDC | 192VDC |
| Quantity | 16pcs | 16pcs | Depends on requested back-up time | Depends on requested back-up time |
| Back-up Time (Full load) | >=7 minutes | >=5 minutes | Depends on the capacity of external battery bank | Depends on the capacity of external battery bank |
| Recharge Time | 7 hours to 90% | Depends on the capacity of external battery bank | Depends on the capacity of external battery bank |
| Charge current(MAX) | 2.0A | 4.2A or 8A | 4.2A or 8A |
| Charge voltage | 220Vdc ± 1% |
| Bypass | Automatic Transfer | On overload and UPS failure |
| Before UPS Power-on | Default "NO" user adjustable to "YES" |
| Transfer Time | | Zero |
| Indicators | LED Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code |
| Audible Alarm | | Bypass, On battery mode, Battery low, Overload, Fault |
| Acoustic noise | At 1 meter distance | <55dB | <60dB |
| Communications | Intelligent RS232 serial port | Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC |
| SNMP (Optional) | Power management from SNMP manager and web browser |
| USB (Optional) | Windows family software and Mac OS |
| Environmental | Operating Temperature | 0~40 °C |
| Operating Humidity | 20~90% ( Non Condensing) |
| Weight | Net weight (kg) | 57 | 67.5 | 18 | 20 | 27 | 35 | 35 |
| UPS Dimension | L*W*H (mm) | 500*248*616 | 500*248*616 | 500*240*460 | 500*240*460 | 500*248*616 | 500*248*616 | 500*248*616 |
| There are two types: Standard type and Professional type, Professional type is with EPO, online maintenance and other functions. |
Company Information
SHENZHEN ZLPOWER ELECTRONIC CO.,LTD
1. A professional manufacturer which cover UPS,inverters and batteries with 8 years experience
2. Own 68 countries and market over the world
3. Welcome OEM, high quality with CE&ISO certificate
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
