| Prod Model: |
QW-3kVA2450 |
| Rated Power: |
3000va/2400W |
| Waveform: |
Pure Sine Wave |
| Solar Controller: |
50A |
| Input: |
230VAC |
| Selectable Voltage Range: |
170-280 VAC (for Computers) 90-280 VAC |
| Maximum PV Array Open Circuit Voltage: |
60 VDC |
| Battery Voltage: |
24V |
| Maximum Solar Charge Current: |
50A |
| Maximum AC Charge Current: |
30A |
| Keyword: |
Solar Inverter |
Product Description

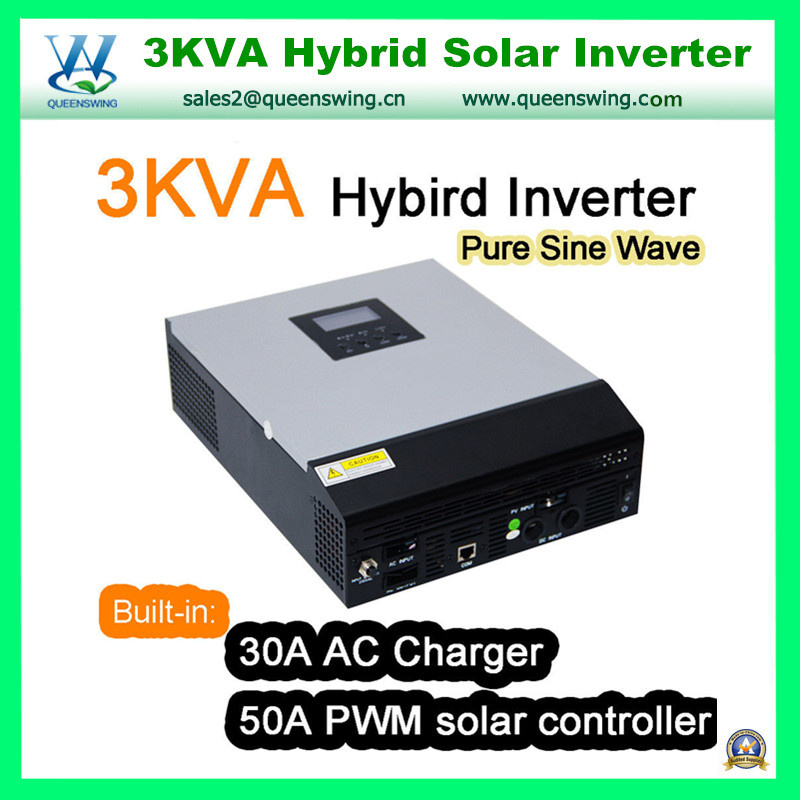

3kVA 2400W PWM Solar Controller Hybrid Inverter Pure Sine Wave Power Inverter (QW-3kVA2450)
Key Features:1. 2400W Pure Sine Wave Output single phase
2. Built-in 50A PWM Solar Charger
3. Built-in 3-Stage High Efficiency 30A Battery Charger
4. Supports 50hz or 60hz via LCD program

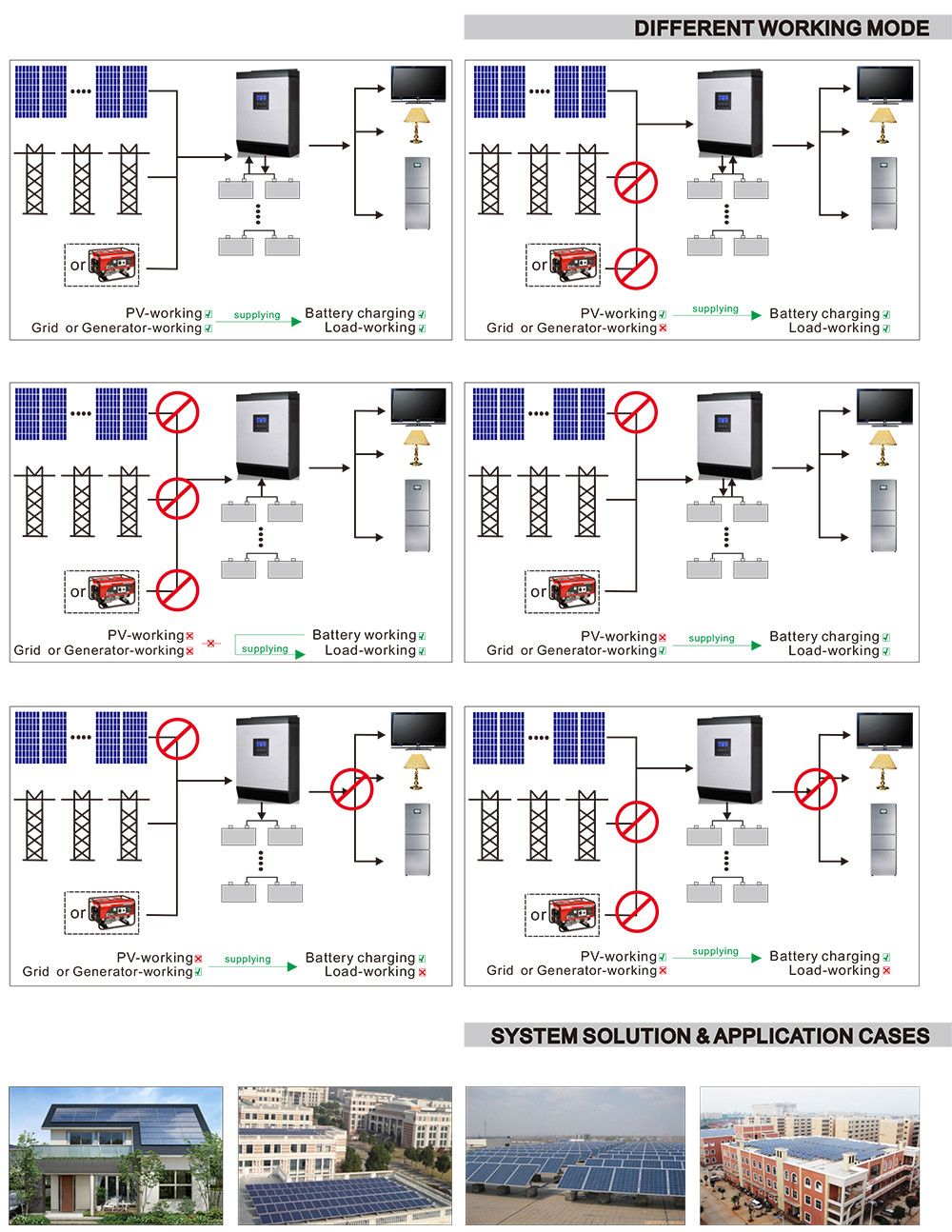

5. Dual Priority Operation Selectable: AC vs. DC Mode
6. Fuse Protection Against Reverse Polarity
7. Free Monitoring Software
8. Works With 24Vdc Battery System Only
9. Works With 220~240Vac Load Only
10. Transfer time <9ms

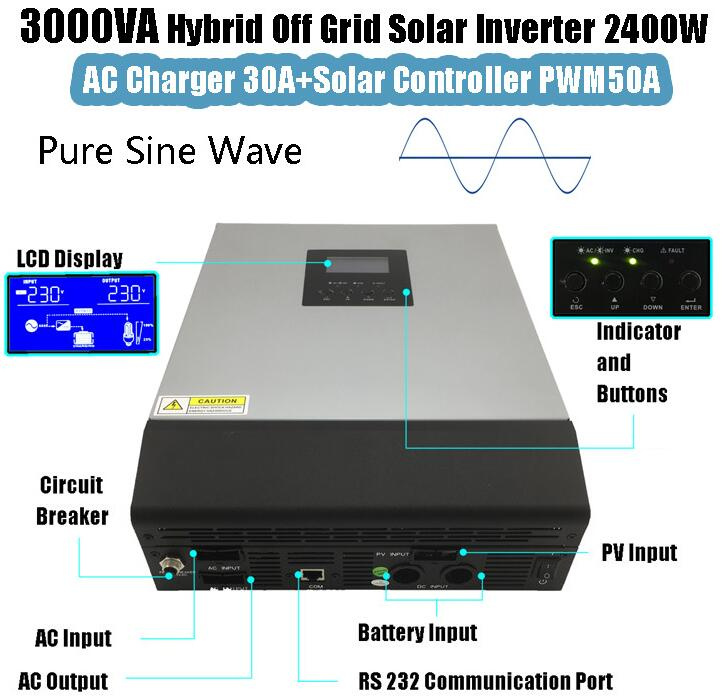

11. Programmable LCD with menu
12. 24 hour operation
Technical Data| 1-5KVA HYBRID SOLAR INVERTER BUILT IN PWM SOLAR CHARGE CONTROLLER |
| Model | 1K-12V | 2K-24V | 3K-24V | 4K-48V | 5K-48V |
| Rated Power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances) |
| Frequency Range | 50 / 60Hz (optional) |
| OUTPUT |
| AC Voltage Regulation(Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computer)
20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 12 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC |
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC |
| Overcharge Protection | 15 VDC | 30 VDC | 30 VDC | 60 VDC | 60 VDC |
| Maximum Charge Current | 10A/20A | 20A or 30A | 20A or 30A | 60A | 60A |
| SOLAR CHARGER(OPTION) |
| Charging Current | 50A |
| Maximum PV Array Open Circuit Voltage | 40 VDC | 60 VDC | 60 VDC | 105 VDC | 105 VDC |
| Standby Power Consumption | 1W | 2W | 2W | 2W | 2W |
| PHYSICAL |
| Dimension, D x W x H(mm) | 420x350x180 | 420x350x180 | 420x350x180 | 540x400x210 | 540x400x210 |
| Gross Weight(kg) | 6.5 | 8.35 | 8.85 | 11.0 | 12.0 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0ºC - 55°C |
| Storage Temperature | -15ºC - 60°C |
| Product specifications are subject to change without further notice |

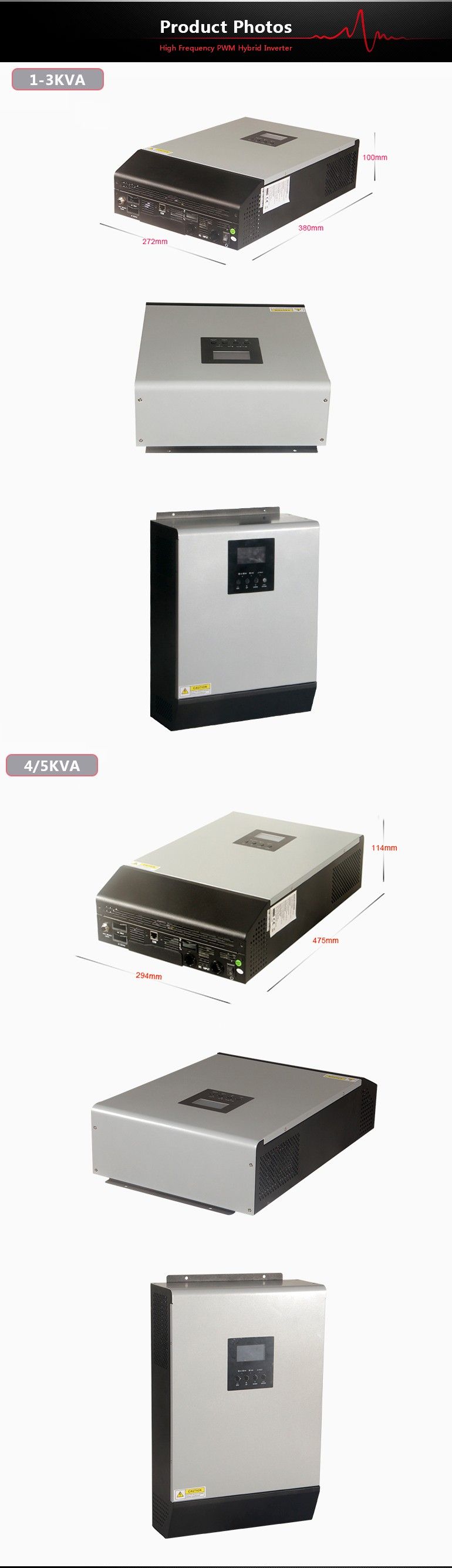

Product Pictures

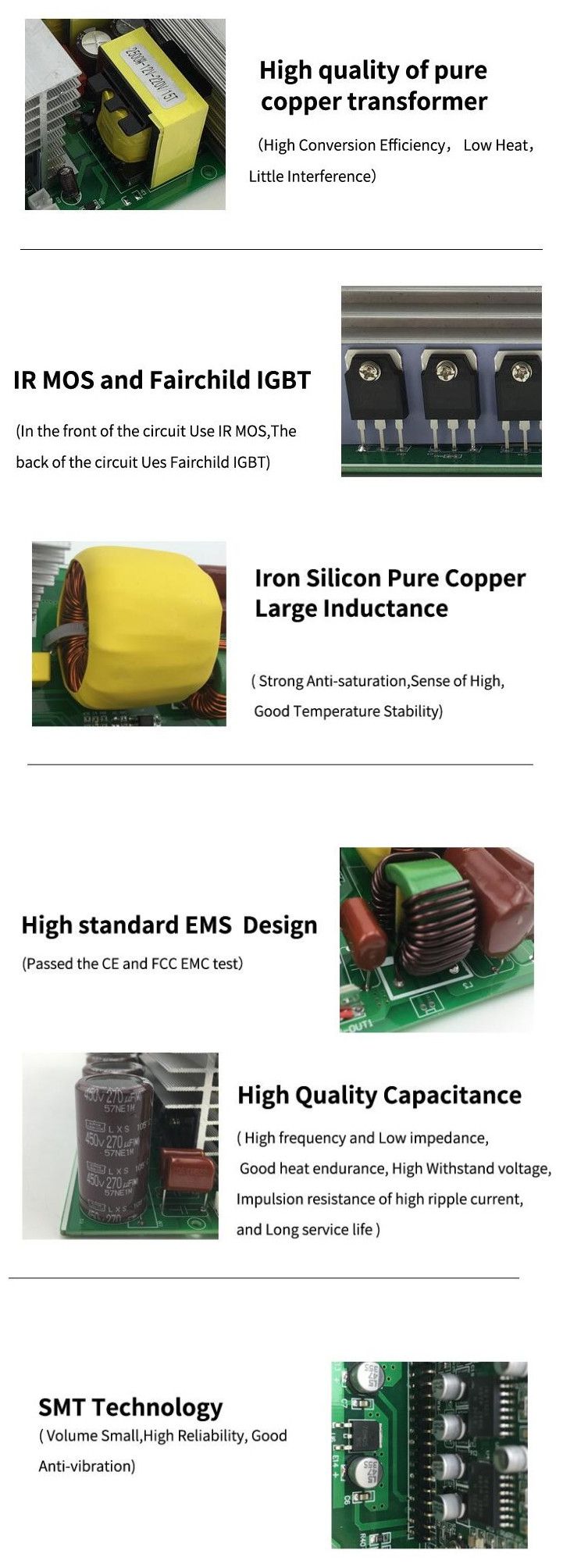

Product Details:
