3kVA Single Phase Line Interactive UPS with Internal Batteries

Prod Model:	REVE 3KVA
Color:	Black
Certification:	Ce, ISO, Patent
Battery Type:	Lead-Acid Maintenance-Free Battery
Display:	LCD or LED Optional
Frequency:	50Hz ~ 60Hz
Delivery Time:	Within 5 Days for Sample; 15days for Production
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Brand:	Sc Power
Classification:	UPS

Product Description

3KVA Single phase Line interactive ups with internal batteries

Product Description:
1.Single phase with pure sine wave
2.600VA-3KVA
3.Input voltage 110/120VAC or 220/230/240VAC
4.THD<3%
5.Complete in all respects with all protection devices for operation
Features:
.Excellent microprocessor control guarantees superior quality and reliability
.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mode


Technical Parameters:

MODEL		REVE 300	REVE 600	REVE 800	REVE 1K	REVE 1.5K	REVE 2K
Phase		Single phase with ground
Capacity		300VA/180W	600VA/360W	800VA/480W	1000VA/600W	1500VA/900W	2000VA/1200W
Display		LCD or Graphic LED
Casing Material		Plastic
INPUT
Voltage		110/120VAC or 220/230/240VAC
Voltage Range		81-145 VAC / 162 - 290 VAC
Frequency Range		50/60Hz (Auto sensing)
OUTPUT
AV Voltage Regulation (Batt. Mode)		± 10%
Frequency Range (Batt. Mode)		50Hz or 60Hz ± 1%
Transfer Time		≤4ms
Waveform (Batt. Mode)		Pure Sinewave
BATTERY
Standard Model built in battery	Battery Type	Lead-Acid Maintenance-Free Battery
	Battery Type & Number	12V/7Ah x 1		12V/7Ah x 2	12V/7Ah x 2	12V/7Ah x 4	12V/7Ah x 4
	Voltage	13.8Vdc ± 1%		27.5Vdc ± 1%		55Vdc ± 1%
	Charging Current	Default: 1.0A ± 10%; Max: 2.0A ± 10%
	Typical Recharge Time	4 hrs recover to 90% capacity		6 hrs recover to 90% capacity
Long-run Model external battery	Battery Type & Number	Depending on application
	Charging Current	1A ~ 20A (Can adjust with software and LCD/LED control button)
	Backup Time	Depends on Capacity and Volume of External Batteries
	Charging Voltage	13.8Vdc ± 1%		27.5Vdc ± 1%		55Vdc ± 1%
INDICATORS
LCD or Graphic LED Display		UPS Status, Load Level, Input/Output Voltage, Discharge Timer, and Fault Conditions
PROTECTION
Full Protection		Overload, discharge, and overcharge protection
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continously sounding
PHYSICAL
Dimension D x W x H (mm)		328 x 80 x 182		328 x 80 x 182		397 x 146 x 205
Net Weight (kgs)		3.2	4.1	4.8	5.6	12.2	13.7
ENVIRONMENTAL
Humidity		20-90% RH @ 0-40ºC (Non-condensing)
Noise Level		Less than 40dB		Less than 45dB		Less than 55dB
MANAGEMENT
Smart RS-232		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC
USB

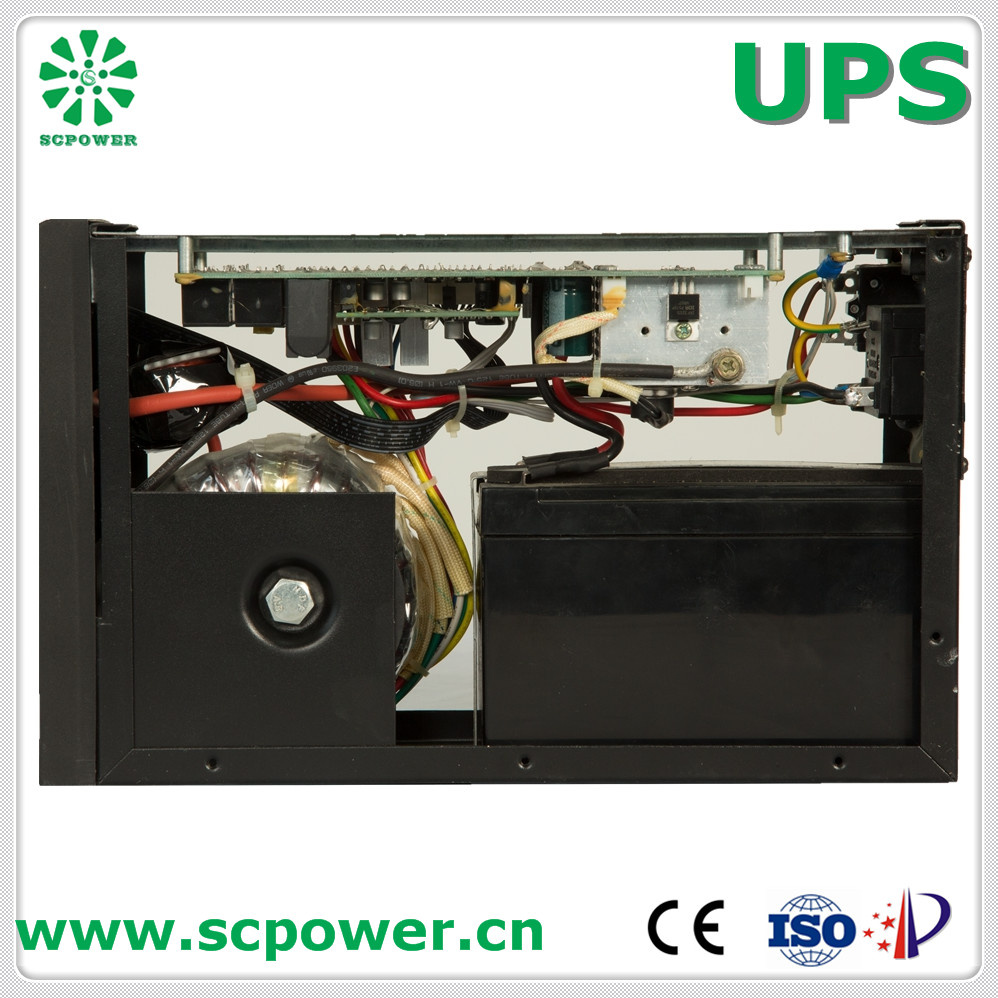

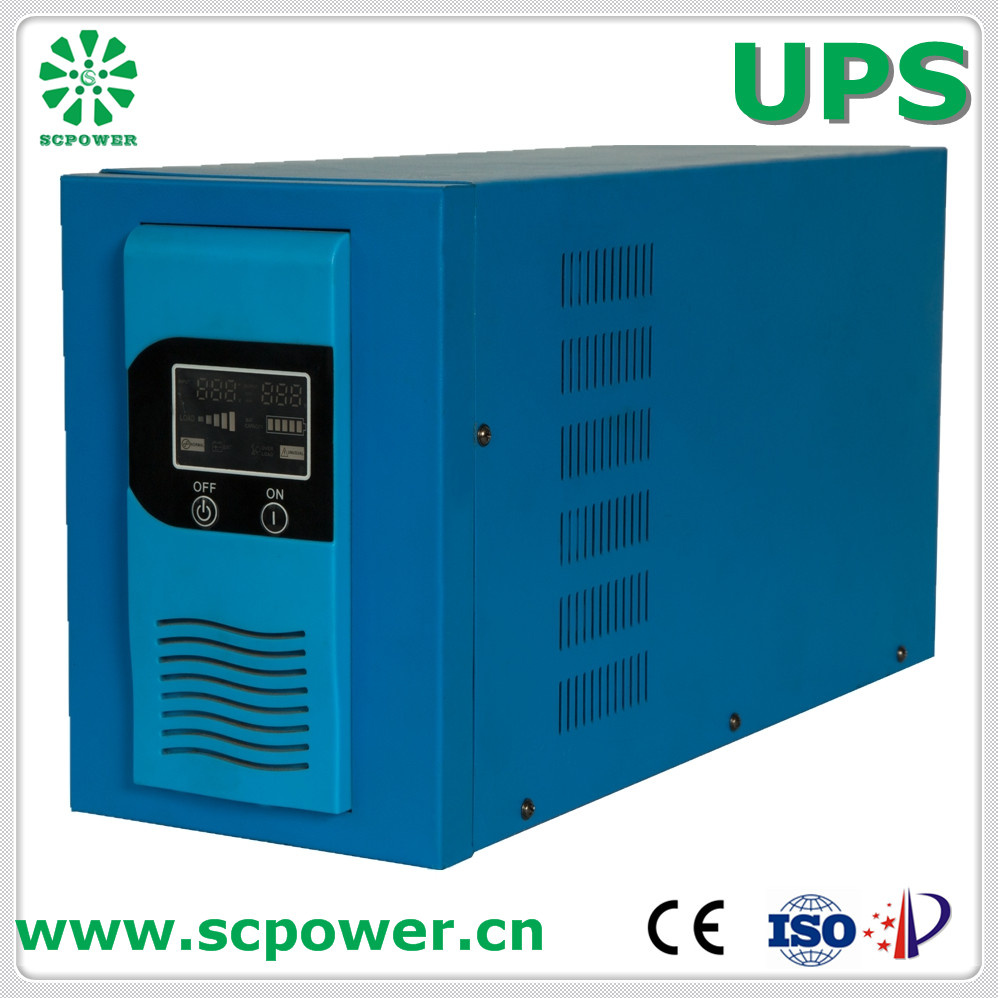

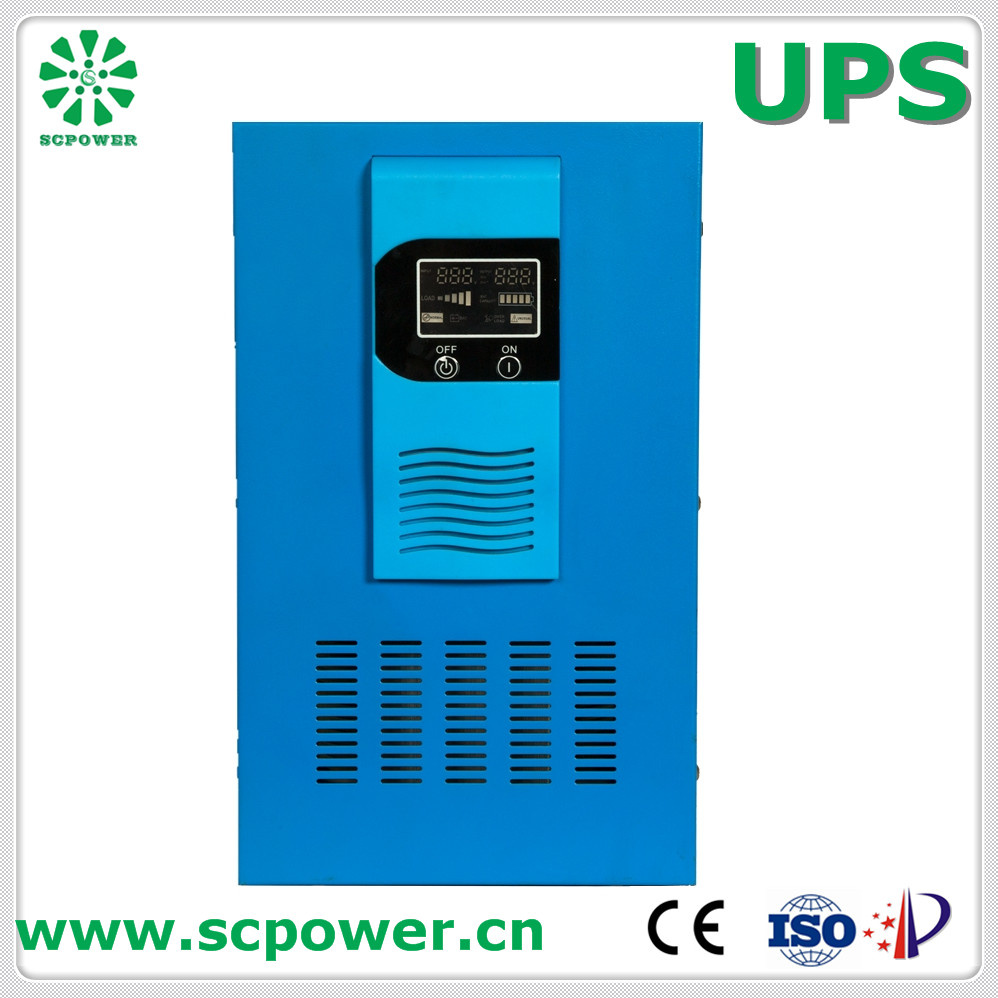

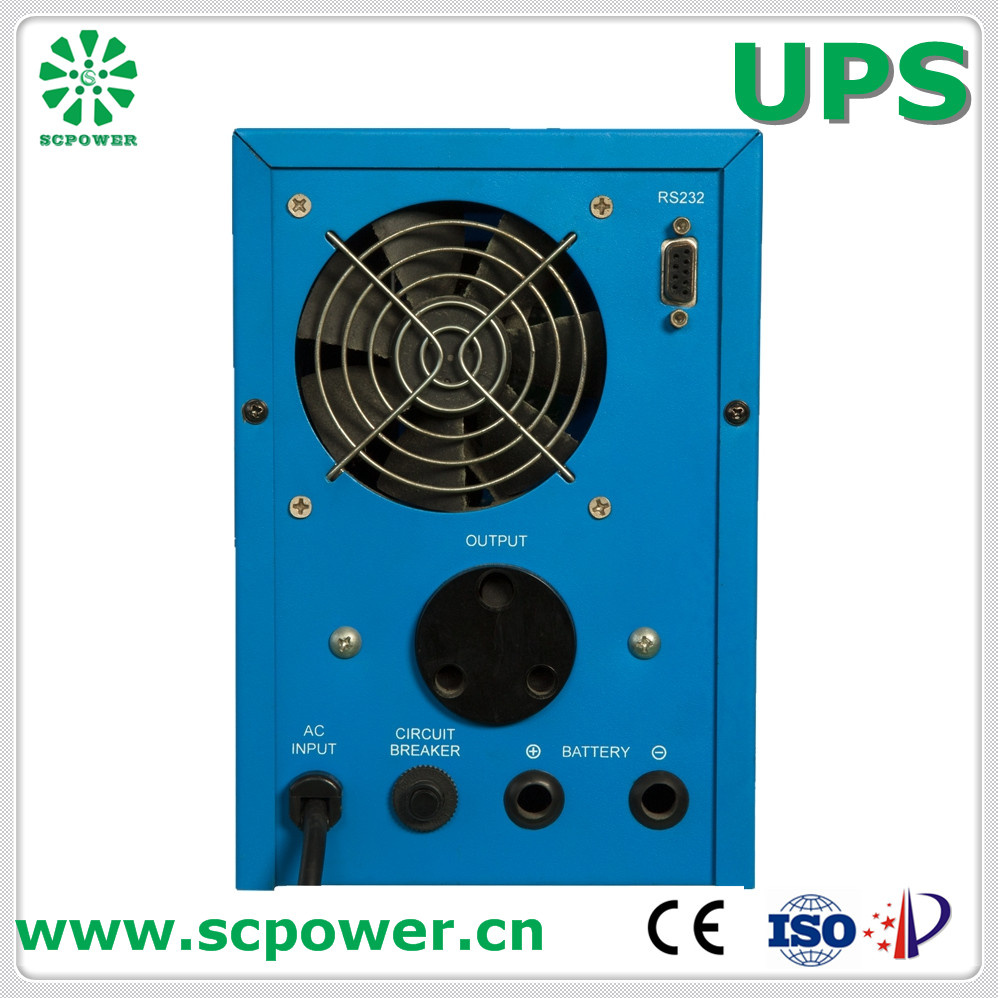

Product pictures:
