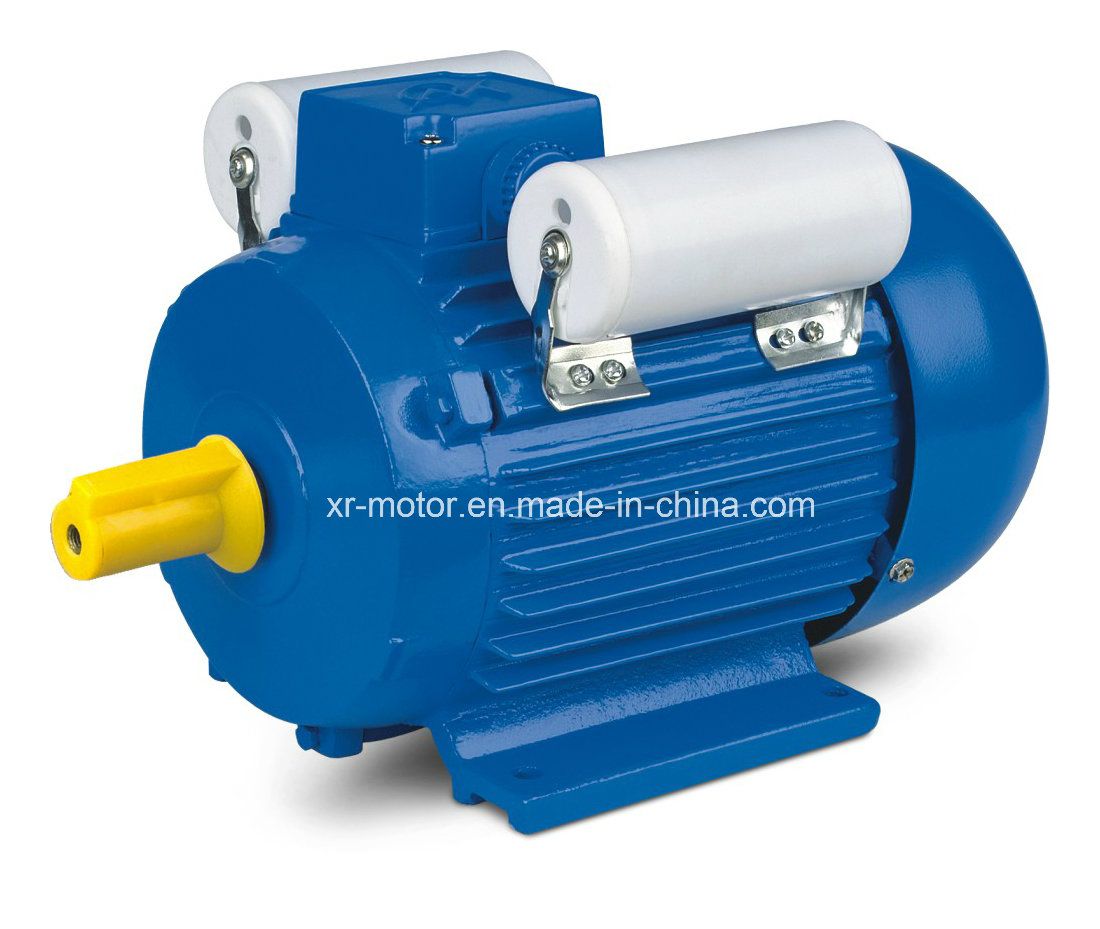

3kw 4HP Yl-132s1-4 1430rpm Yl Series Single Phase Two Value Capacitor Induction Motor

Name: 3kw 4HP Yl-132s1-4 1430rpm Yl Series Single Phase Two Value Capacitor Induction Motor
Brand: all-electronics-online.com
SKU: 821385005
Availability: InStock
Rating: 4.8 (45 reviews)

Price:	US $ 90/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	3kw 4hp YL-132S1-4 1430RPM
Protection Class:	IP44
Cooling Method:	IC0141
Winding:	Copper Wire
Duty:	S1
Number Of Stator:	Single-Phase
Function:	Driving
Brand:	Xinrui

Product Description

YL series single-phase motors are widely used on air compressors, pumps, fans, refrigeration, medical instruments, small size machines, etc. Especially for occasion where only single-phase power supply is available.

Technical Data(220v 50hz):

Type	Output		Current(A)	Speed(r/min)	Eff(%)	Power	Locked rotor	Locked rotor	Max. torque
	Output					factor(CosΦ )	torque	current(A)	ated torque
	HP	KW					Rated torque
YL711-2	1/2	0.37	2.73	2750	67	0.92	1.8	16	1.8
YL712-2	3/4	0.55	3.88	2750	70	0.92	1.8	21	1.8
YL801-2	1	1.75	4.79	2800	75	0.95	1.8	29	1.8
YL802-2	1.5	1.1	6.93	2720	76	0.95	1.8	40	1.8
YL90S-2	2	1.5	9.44	2820	76	0.95	1.8	55	1.8
YL90L-2	3	2.2	13.7	2830	77	0.95	1.8	80	1.8
YL100L-2	4	3	18.4	2850	78	0.95	1.8	110	1.8
YL112M-2	5	3.7	22.2	2850	80	0.95	1.7	160	1.8
YL711-4	1/3	0.25	2	1360	62	0.92	1.8	12	1.8
YL712-4	1/2	0.37	2.8	1380	65	0.92	1.8	16	1.8
YL801-4	3/4	0.55	3.88	1400	70	0.92	1.8	21	1.6
YL802-4	1	0.75	5.1	1400	73	0.92	1.8	29	1.6
YL90S-4	1.5	1.1	7	1400	75	0.95	1.8	40	1.6
YL90L-4	2	1.5	9.44	1410	76	0.95	1.8	55	1.6
YL100L1-4	3	2.2	13.7	1420	77	0.95	1.8	80	1.8
YL100L2-4	4	3	18.4	1430	75	0.95	1.8	110	1.8
YL112M1-4	4	3	18.4	1430	78	0.95	1.8	110	1.8
YL112M2-4	5	3.7	22.2	1450	80	0.95	1.8	138	1.8
YL132S1-4	4	3	18.4	1450	78	0.95	1.8	110	1.8
YL132S2-4	5	3.7	22.2	1450	80	0.95	1.8	138	1.8
YL132M-4	7.5	5.5	32.5	1450	81	0.95	1.7	227	1.8
