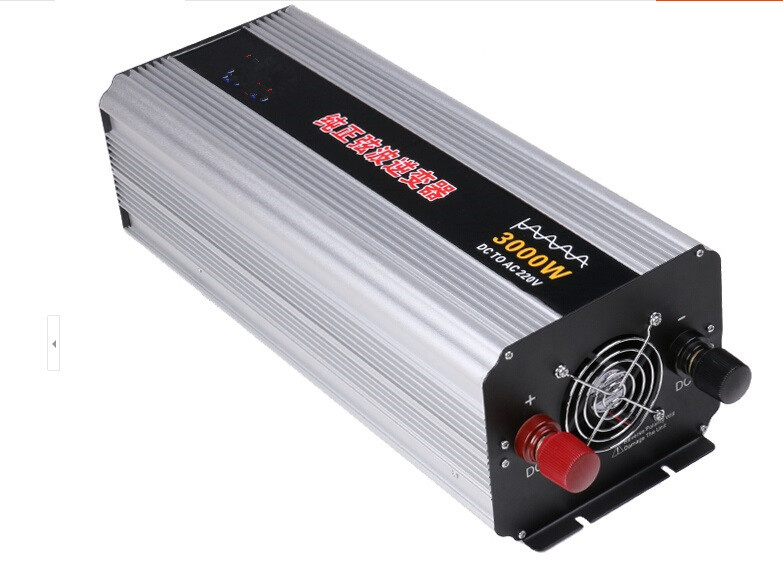

3kw Pure Sine Wave Inverter for off-Grid System

Prod Model:	FOI-3000W
Power:	3000W
Size:	370*274*116mm
Weight:	8.20kg
Voltage:	12/24V
OEM:	Available
Efficiency:	90%
Warranty:	1 Year

Product Description

Detail Specifications


Ideal	FOI-3000W
Output power (Countinuous Watts)	3000
Output power (Peak Watts)	6000
Nominal Input Voltage (DC)	12V (10~15V)/24V (20~30V)
Nominal Output Voltage (AC)	115V AC or 230V AC
Frequency	50Hz or 60Hz +/- 5%, Crystal controlled
Output Regulation	Intelligent Pwm +/- 0.5%
Output Waveform	Modified Sine wave
Low Battery-voltage Alarm (Volts)	10.5 +/- 0.5V   /   21+/-1V
Low Battery-Voltage Shutdown (Volts)	10+/- 0.5V   /    20+/-1V
Efficiency	85~90%
Thermal Protection	65°C +/-5 °C
Overload	Shut down & Alarm
Battery Polarity Reverse	By Fuse
Output Short	Output short Cicuit Protection
With Cooling Fan	Yes Auto-operation fan (temperature or load)
AC Outlet	USA Type: 4AC Outlets
Replaceable Fuse (12V DC)	18 x 25A
Replaceable Fuse (24V DC)	18 x 10A
Product Dimension (L x W x H)cm	32 x 21 x 15.5
Weight	7.2 kg
Qty (PCS)	2
Carton Measurement (cm)	52 x 42 x25
Container 20FT (PCS)	1026


Main Features and Protection


1, Under-Voltage Protection(Batteries Using Life Protection): When the voltage of the batteries drops to the setting under-voltage point, the buzzer will be on, and the power will be off automatically in one minute, then the red light flashes

2, When the input voltage is higher than the overvoltage set point of the machine, the machine immediately shut down, and then red light flashes.

3, Short-Circuit Protection: When the output short-circuit phenomenon exists, the machine shut down immediately, then the red lights starts flashing.(Note: Output short-circuit will cause great harm and affect the life seriously, or even damage the machine.)

4, Over-load Protection: This machine overload protection with delay to meet some of the impact of higher current loads(such as motors, incandescent) When the load greater than output power, stopped by the degree of time delay 1-10 seconds, then the red light flashes.

5, Over-heated Protection: When the temperature reaches 40 degree the fan will be turned on automatically; when the temperature reaches (exceeds) 60 degree, the buzzer will be on and the power will be off in one minute, when the temperature exceeds 75 degree the power will be turned off at once, red light flashes.


Our Service
One year warranty.

OEM is AVAILABLE!

Excellent Pre-sales and After-sales service system.

Packing and delivery

1. Exported standard colorful carton packing, or according to your request.
2. 35-40 working days upon receive the deposit or original L/C
