| Prod Model: |
GS-TFL-6K |
| Rated Laser Output Power: |
4000W |
| Laser Wavelength: |
900-1070nm |
| Power Instability: : |
Less Than 2%; |
| Working Method: |
Continuous |
| Max. Power Consumption: |
15kw |
Product Description

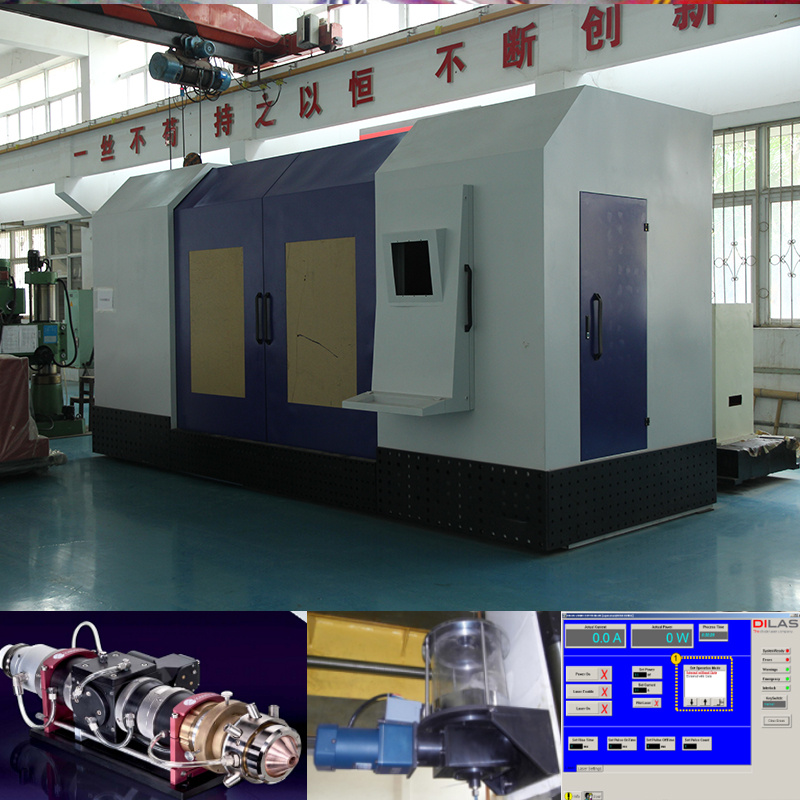

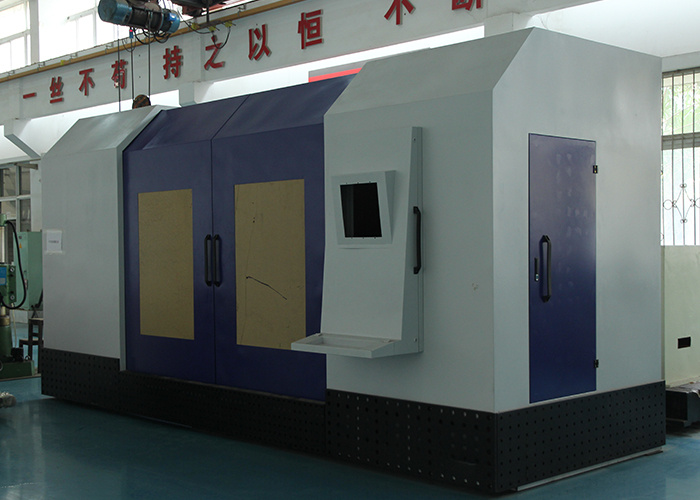

3KW semi-conductor laser cladding equipment
Introduction and technical parameter of equipment
It is an laser scale integrated system of laser, mechanical, electric for laser cladding and heat treatment; consist of imported Germany original Laserline semiconductor laser source, water chiller, processing table, horizontal rotary worktable,working table base, CNC systems, coaxial powder feeding system and protection system, dust removal system, etc. This equipment has the function of laser quenching, laser cladding, laser alloying, its composition, technical parameters are stated below.
Product
Germany 3000W optical fiber coupled diode laser source
| Rated output power | 3000 W |
| The output wavelength | 900-1070 nm |
| Power non-stability rate | + / - 2% |
| Size | 950 x770x1700mm (LxWxH) |
| Weight | 600 kg |
| Working style | Continuous work |
| Laser power supply requirements | three phase 380-480 vac, 50/60 hz |
| Maximum power consumption | 15 KW |
| Working temperature | 10-45 ºC, 5-65 ºC for storage temperature |
| Humidity | 85% maximum @ 35 ºC without condensation |
| Laser safety levels | level I |
| Interface | Profibus DP,Ethernet,RS232 |
| Warranty period | 5 years warranty for semiconductor laser source, other components 2 years warranty |
Mechanical specifications| Largest diameter | About 70mm |
| Optical lens specifications | 2 inches |
| Weight of standard optical element | About 5 kg (not including nozzle) |
| Optical specification | |
| Beam quality | 110mm.mrad |
| Collimating focal length | 81mm |
| The focal length | 400mm |
| Spot diameter | Ф4.9mm |
| Operating conditions | |
| environment temperature | 10-40ºC |
| Working temperature | Max50ºC |
| The temperature | No condensation |
| Effective water cooling | 500W or above laser source continuous working is recommended |
Our team

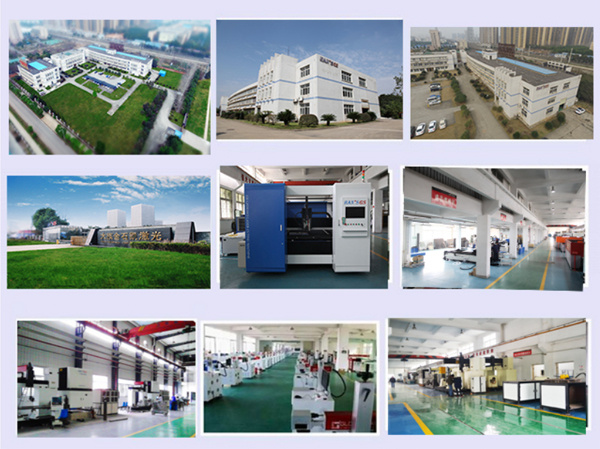

Our company

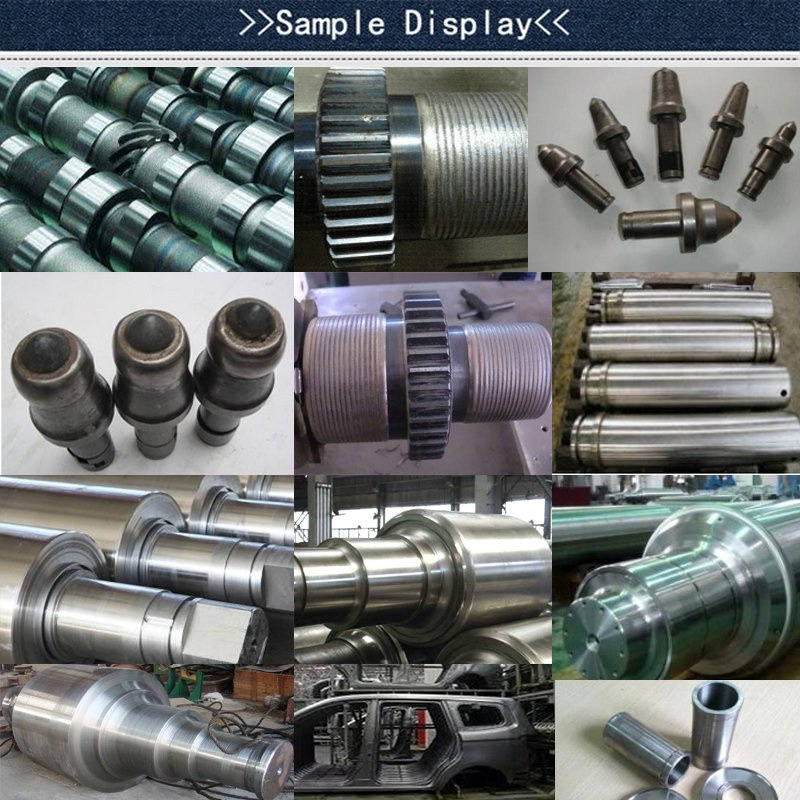

Laser Cladding Machine Sample
Our service:
Quality Guarantee System:
1.The integral design will be accomplished by us within 30 working days after the contract assignment. Procurement of components and manufacturing of casting piece will be priory to ensure the delivery time.
2.With ISO 9001 quality system request, we'll keep the coordination and restrict standard in all manufacturing process including rigid inspection for raw material selection and procurement. Also the manufacturing process is under inspection and control to prevent the unqualified product flow into next manufacturing step so as to ensure the delivery time and quality of all our products delivered.
3.Inspection of our design, manufacturing, assembly, test and installation by customer is welcome at anytime, and we will always offer our cooperation.
Save
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
