3kw Semiconductor Robot Laser Cladding Machine

Name: 3kw Semiconductor Robot Laser Cladding Machine
Brand: all-electronics-online.com
SKU: 821432605
Availability: InStock
Rating: 4.9 (103 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GS-LS3DA
Power Instability:	±2%;
Working Method:	Continuous
Max. Power Consumption:	15kw
Rated Laser Output Power:	4000W
Laser Wavelength:	900-1070nm

Product Description

General Introduction

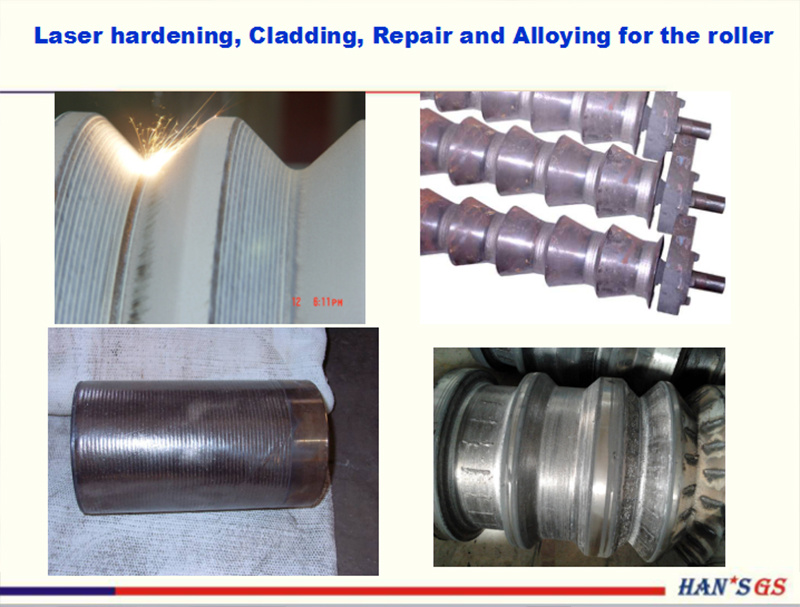

The fiber-coupled semiconductor laser robot flexible manufacturing complete sets of equipment is a large integrated equipment combined with Optical, mechanical and electrical and cooling, and material processing technology. The complete set of equipment is composed by the original imported German LASERLINE fiber coupled laser diode, laser light guiding system (feeding fiber,laser head), laser chiller, six axis linkage KUKA robot, laser processing machine tools, integrated control systems, coaxial powder feeding system, etc, equipped with repair laser quenching, laser cladding, laser alloying, and other functions, its composition, technical parameters, requirements and instructions are as follows:

Product

Germany Laserline Fiber coupled laser diode

	Rated laser output power	3000W
	Laser Wavelength	900-1070nm
	Power Instability	±2%
	Dimension	950x770x1700mm(LxWxH)
	Weight	Around 600kg
	Working method	Continuous
	Power supply for laser	3 phase,380-480VAC, 50/60Hz
	Max. power consumption	15KW
	Temperature for working environment	10~45ºC
	Storage Temperature	5~65ºC
	Humidity	max.85% @ 35 ºC without condensation
	Laser safety level	I
	Interface	Profibus DP,Ethernet,RS232
	Warranty period	5 years warranty for semiconductor laser components; 2 years warranty for other systems components
	Service life	typical values > 30000 hours, under three-shift > 5 to 7 years

Specification

Max.Outside Diamater	70mm
Optical Diameter	50.8mm
Machine Weight	5kg(Does Not Contain The Nozzle)
Optical Spec
Laser Beam Quality	60mm.Mrad
Collimating Focal Length	105mm
Focal Length	300mm
Spot Size	Ф3mm	22mm×3mm(Optional)
Optical Fiber Connector Socket	LLK-D
Storage Temperature	5-65ºC
Operating Temperature	Max.50ºC
Temperature	Non-Condensing
Facula dimension	15mm*2.85mm

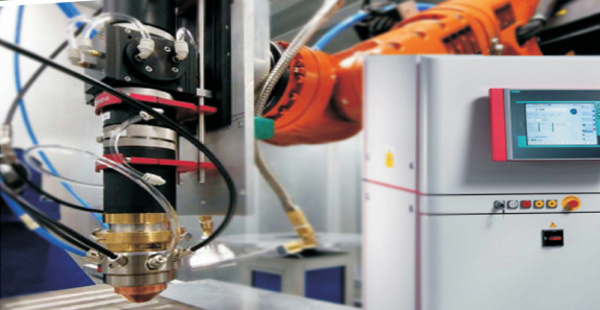

Robot (model: KUKA30)
Choose German KUKA KUKA30 type, six axis robot produced by our company. The robot movement is with high precision, pragmatic wrist is appropriate, fully meeting the requirements of laser cladding repairing. Robot is mainly used for clamping head of cladding, and drives the laser optical head and robot slider move cooperatively, in order to realize the final processing needs.

Our company

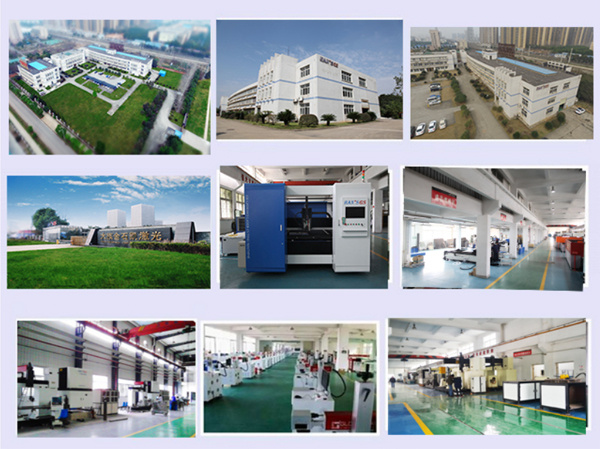

Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.

Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.

Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
