| Prod Model: |
RUBLS-EPDM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Surge Arrestor Seal Kits Used Cold Shrink Tubing |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
<10KV |
| Color: |
Black |
| Brand: |
Volsun |
Product Description

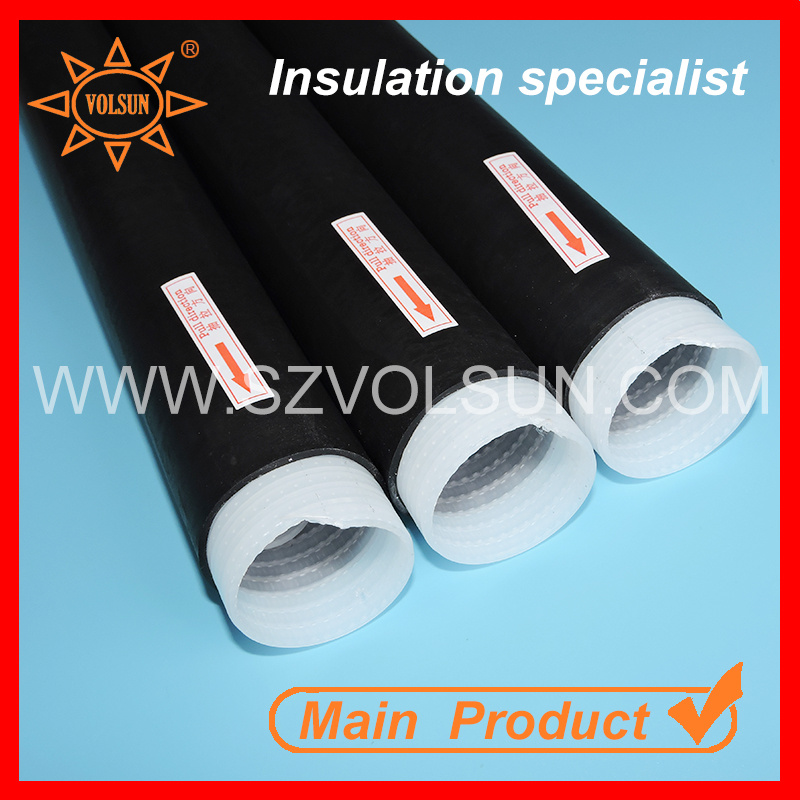

3M N Type Connectors Cold Shrink Sealing Tube
Equivalent To 3M's CXS Series
Description
VOSLUN CXS series provide the correct Cold Shrink tube or the correct Cold Shrink tube and special foam to make the installation of coax connector seals easy. The installation does not require tooling, and the quality of the installation is less installer dependent.
Unique Advantages
Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing
More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing
Simultaneously expands and shrinks with work pieces without clearances, seals tight in harsh environment
Stably sealing the work pieces in windy environment
Well suited for cable less than 1KV
Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.
Simple, safe installation, requires no tools or special training. No torches or heat work required.
Sealing class IP68
Applications
The main application is the sealing of coax connectors used in the wireless communication antenna market. These mainly outside installed connectors require an extra sealing. Up until now, sealing tapes or Heat Shrink tubes were used.
Technical Information
The outer Cold Shrink tube is made from UV resistant EPDM or Silicone rubber material to provide an
Excellent seal on the connector. In cases where the different coax cable diameter can not be covered with
The tube application range, a special foam is used to increase the smallest cable diameter to fit the shrink
Performance of the Cold Shrink tube. The kits passed the. 5 bares water pressure sealing test and met IEC 529 IP 68.
Cross Reference: 3M's 98-KC series
| 3M Spec. | Volsun Spec. | Expanded
(mm) | Min. Cable Outer Diameter
(mm) | Max. Outer Diameter
(mm) | Max. Cable Length
(mm) | Recovered Length (mm) |
| 8423-6 | 2320-6 | ID20 | 7.8 | 14.3 | 51 | 152 |
| 8425-8 | 2525-8 | ID25 | 10.1 | 20.9 | 76 | 203 |
| ----- | 2632-9 | ID32 | 13 | 25.4 | 127 | 229 |
| ----- | 2632-11 | ID32 | 13 | 25.4 | 178 | 279 |
| 8426-9 | 2635-9 | ID35 | 13.9 | 30.1 | 127 | 229 |
| 8426-11 | 2635-11 | ID35 | 13.9 | 30.1 | 178 | 279 |
| 8427-6 | 2740-6 | ID40 | 17.5 | 35.1 | 51 | 152 |
| 8427-12 | 2740-12 | ID40 | 17.5 | 35.1 | 203 | 305 |
| 8427-16 | 2740-16 | ID40 | 17.5 | 35.1 | 305 | 406 |
| 8428-6 | 2853-6 | ID53 | 24.1 | 49.2 | 51 | 152 |
| 8428-12 | 2853-12 | ID53 | 24.1 | 49.2 | 203 | 305 |
| 8428-18 | 2853-18 | ID53 | 24.1 | 49.2 | 356 | 457 |
| 8429-6 | 2970-6 | ID70 | 32.2 | 67.8 | 51 | 152 |
| 8429-9 | 2970-9 | ID70 | 32.2 | 67.8 | 127 | 229 |
| 8429-12 | 2970-12 | ID70 | 32.2 | 67.8 | 203 | 305 |
| 8429-15 | 2970-15 | ID70 | 32.2 | 67.8 | 279 | 381 |
| 8429-18 | 2970-18 | ID70 | 32.2 | 67.8 | 356 | 457 |
| 8430-9 | 3104-9 | ID104 | 42.6 | 93.7 | 127 | 229 |
