3M Volition Zipcord Fiber Optic VF45 to VF45 Connector Patch Cable
| Price: |
US $ 25-26/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PN-0954 |
| Color: |
Gray |
| Fiber Type: |
mm, Multimode |
| Connector Type: |
VF45 |
| Cable Diameter: |
2.0mm Cable |
| Polish Type: |
UPC |
| Length: |
10FT |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
VF45 Connector |
Product Description

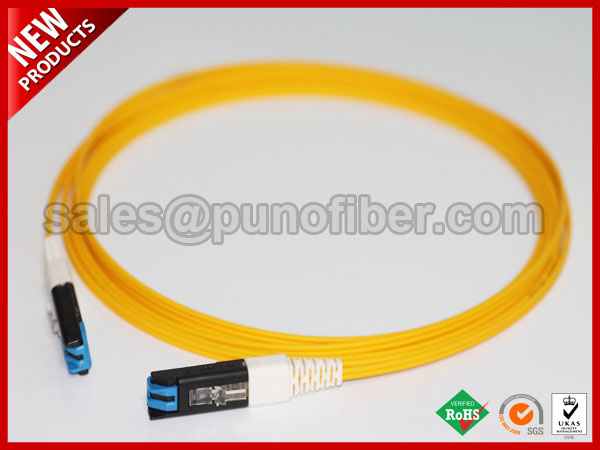

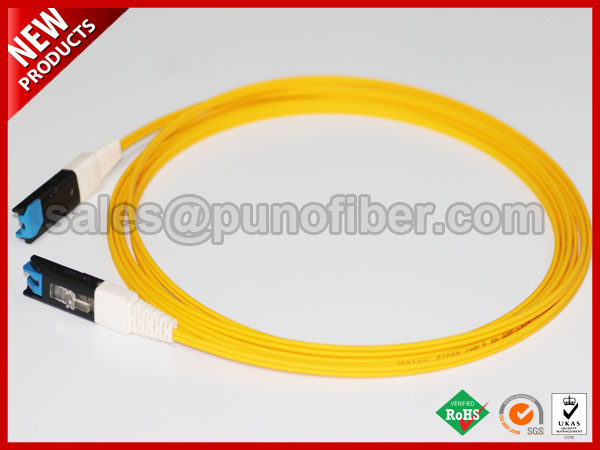

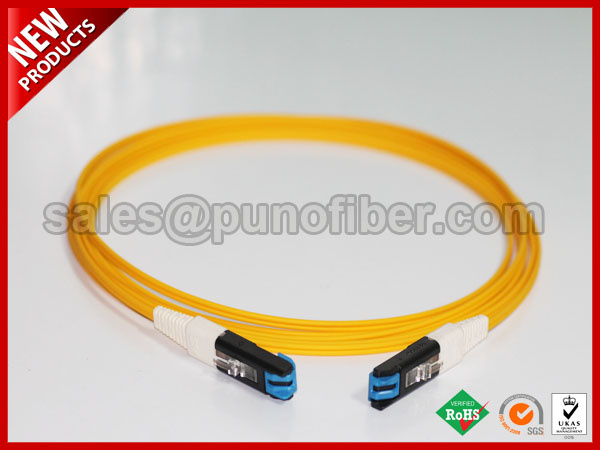

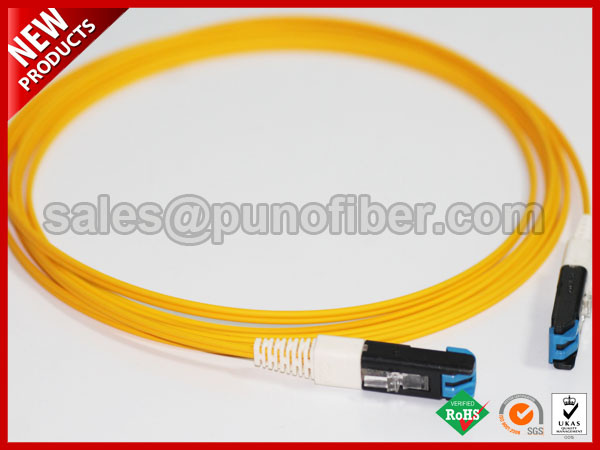

3M Volition Zipcord Fiber Optic VF45 to VF45 Connector Patch Cable
VF45 - VF45 MM Patch Cord:
The Volition VF-45 Socket and Patch Cords from 3M are the latest duplex, fiber optic interconnects for affordable, high bandwidth, fiber-to-the-desk networks. The VF-45 plug and socket work like an 8-pin modular jack, bringing the simplicity of the RJ-45 jack to optical fiber applications. VF-45 sockets can be field terminated in closet patch panels and in work area outlets for premises backbone and horizontal cabling applications. Field termination on duplex multimode and single-mode fiber using the Volition VF-45 Termination Kit takes less than two minutes, two fibers at a time! The mating VF-45 plugs, factory terminated onto patch cords, enables interconnection from socket-to-socket or from socket-to-transceiver devices. VF-45 patch cords are provided in a variety of lengths and are also available in hybrid ST* or SC configurations. All VF-45 patch cords are constructed with the innovative 3M "GGP" high-strength coated optical fiber, providing for durability and tight bend radius in desktop applications.
Application & Features:
Plug-to-socket design (no adapter needed);
High-density duplex interconnect;
V-groove alignment with injection-molded parts;
RJ-45 style latch;
Socket, snap together assembly;
Eliminates expensive ferrules, sleeves or precision components;
Easy to install, lower labor costs;
Dependable in under-desk applications.
Features:
Low Insertion Loss;
Good Repeatability;
Good Changeability;
Good Temperature Stabilization.
Technical Polarity:
Volition™ VF-45™ Patch Cords:
VF-45 Patch Cords are available in the following combinations:
VF-45 to VF-45
VF-45 to ST
VF-45 to SC:
Specifications for Volition VF-45 Patch Cords: | Material | Specification |
| Single-mode | Multimode |
| Connector | Engineering Thermoplastic UL-94 VO |
| Boot | Thermoplastic Elastomer | |
| Fiber | 9/125μm | 62.5μm or 50μm |
Specifications:
Volition VF-45 Patch Cords interconnected with Volition VF-45 Sockets perform to the following loss and reflection data and conform to the following combination of TIA, IEC and 3M performance specifications.
Specifications for Volition VF-45 Plug and Sockets: | Test | Test Conditions/Requirements |
| Single-mode | Multimode |
| Attenuation | ≤0.75dB | ≤0.75dB |
| Reflection | ≤26dB | ≤26dB |
| Mating Durability | 500 Cycles, ≤0.75dB Max |
| Strength of coupling | 33N, ≤0.75dB |
| Plug Cable Retention | Tensile load 66N,side pull 19.4N, ≤0.75dB | Tensile load 66N,side pull 6.6N, ≤0.75dB |
| Plug Flex | 100 cycles,±90 degree,0.5kg, ≤0.75dB |
| Plug Twist | 10 cycles, ±2.5 Revolution, 15N, ≤0.75dB |
| Cold | -10ºC(14˚F) for 96 hours, ≤0.3dB increase |
| Heat | 60ºC(140˚F) for 14 days, ≤0.3dB increase |
| Humidity | 40ºC, 95% relative humidity for 96 hours, ≤0.4dB |
| Impact | 8 drops @ 1.8m, ≤0.75dB |
| Thermal Cycling | -10ºC 60ºC(14˚F to 140˚F), 5 cycles, ≤0.3dB increase |
| Vibration | 10 to 55 Hz, 30 min, each axis, ≤0.3dB increase |
Optical Properties: | Items | Unit | Specification |
| Cladding Non-Circularity | % | ≤2.0 |
| Coating Diameter | μm | 245±10 |
| Cladding-Coating Concentricity Error | μm | ≤1.0 |
| Core Diameter | μm | 62.5±2.5 |
| Cladding Diameter | μm | 125±1.0 |
| Cable Material |
| Outer sheath | LSZH (Gray) |
| Outer sheath of single fiber | LSZH (Gray) |
| Secondary sheath of single fiber | Nylon TIGHT |
| Strength member | Aramid yarns |
| Fiber Type | MM‐62.5/125µm |
| Connector Type | VF45 Plug - VF45 Plug |
