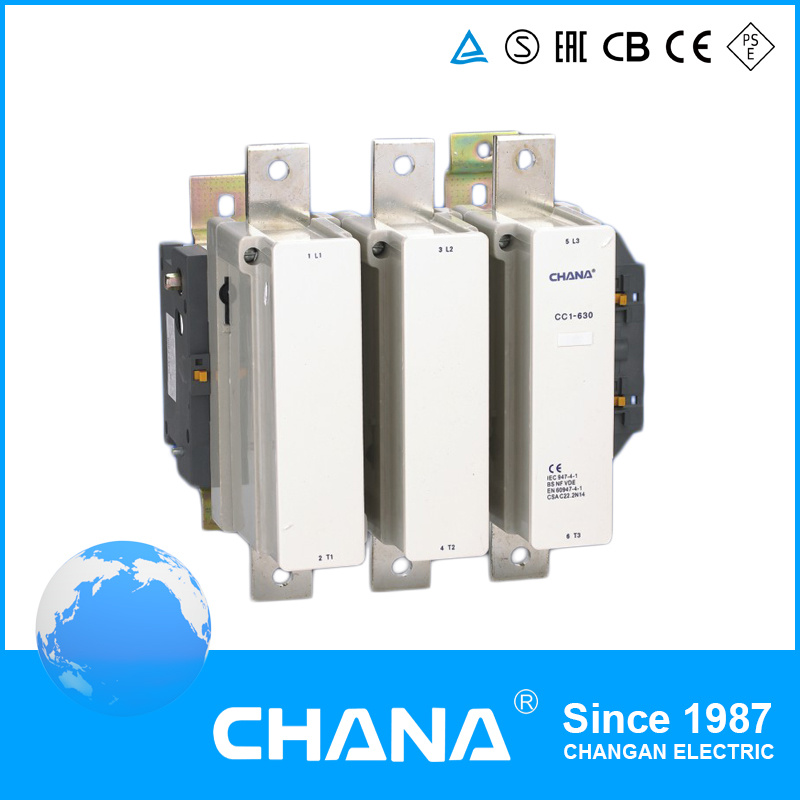

3p 4p 800A Magnetic AC/DC Contactor with Ce CB Certificate

Name: 3p 4p 800A Magnetic AC/DC Contactor with Ce CB Certificate
Brand: all-electronics-online.com
SKU: 793117695
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 181.62-213.35/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-800
Manufacturer:	Original Factory
Company Credit Rate:	AAA
Company Size:	Over 2000 Stuff
Size:	Miniature
Load:	Medium Power Relay
Action Principle:	Electromagnetic Type
Protective Characteristics:	AC Contactor
Contact Form:	10,01,11,04,08
Theory:	Electromagnetic Contator

Product Description

CC1-800 Contactor

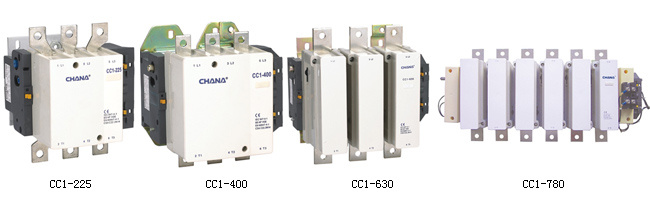

Ice60947-4 and RoHS Approved AC Contactor

1. Description

Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 800A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Control Coil Valtage (Dc Coil Operation)

Volts(VAC)

110

220

Code

2. Specification

Standard
Model No.		CC1-400	CC1-500	CC1-630	CC1-780	CC1-800	CC1-1000
Rated Conventional Heating Current	Ith(A)	460	580	850	1200	850	1200
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	400	500	630	780	800	1000
Rated Operation Current Ue=380/415V	AC-4 Le(A)	138	147	188	240	195	320
Power Controlled 3Ph Cage Motor AC-3	380/415 kW	200	250	335	400	400	500
Power Controlled 3Ph Cage Motor AC-3	660/690 kW	280	335	450	475	475	560
Eletrical life(x10³ operations)	AC-3	300	300	300	200	200	200
Eletrical life(x10³ operations)	AC-4	100	100	100	50	50	50
Mechanical life (x10⁶ operations)		3	3	3	2	3	2
Matched Fuse	Size	RT16-3	RT16-4	RT16-4	RT16-4	RT16-4	RT16-4
Matched Fuse	A	500	630	800	1250	800	1250
Main Circuit		3P or 4P

3. Terminal Connection

Model	Cabling(Cu)			Screw Size	Tughtening Torquw(N.M)
Model	Number of Piece	Cable Cross Section(mm)^2	Cu Busbar Cross Section(mm)^2	Screw Size	Tughtening Torquw(N.M)
CC1-115	1	70~90		M6	3
CC1-150	1	70~90		M8	6
CC1-185	1	95~150		M8	6
CC1-225	1	95~150		M10	10
CC1-265	1	120~185		M10	10
CC1-330	1	185~240		M10	10
CC1-400	1(2)	240(150)	30x5	M10	10
CC1-500	2	150~185	40x5	M10	10
CC1-630	2	185~240	50x5	M12	14
CC1-800	2	185~240	50x5	M12	14

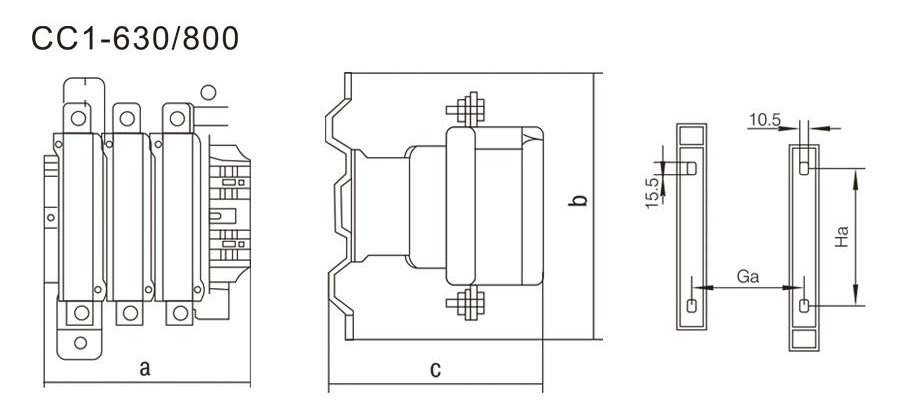

4. Dimension(mm)

Model	A max	B max	C max
CC1-800	309	304	255

5. FAQ(Packaging & shipping)

Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production

Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer form a or c/o ?
A.It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem

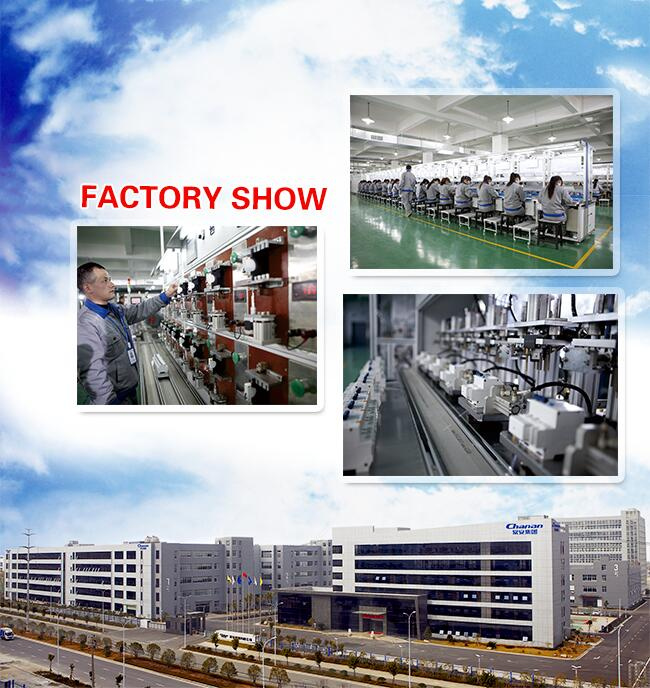

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
