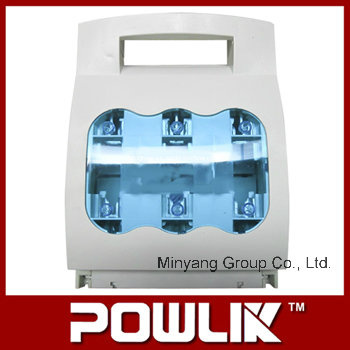

3p 4p Hr17 Fuse Isolating Switch, Fuse Switch Disconnector

Name: 3p 4p Hr17 Fuse Isolating Switch, Fuse Switch Disconnector
Brand: all-electronics-online.com
SKU: 772540515
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 5.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HR17
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	160A-630A
Number Of Pole:	3p,4p
Rated Working Voltage:	380V
Rated Insulating Voltage:	690V
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
Standard:	IEC

Product Description

3P 4P HR17 Fuse Isolating Switch, Fuse Switch Disconnector

1.Application

HR17 series fuse type load isolating switch can be operated with load and is a pplicable to rated current100A~1600A,and has three types: one-gang.two-gang a nd three-g ang.It can be i nstalled both to bus bar and solid plate. And supplies with upper en d inpu t, lower end input and output structure, lead in device with cutting point and arc extinguishing equipment. Furthermore, switch and detector switch are built inside. It can match fuse detector and also can be used as knife switch.
.

2.Technical Description

A. Voltage rating: 690V

B. Current rating: 630A

C. Frequency: 50Hz

D. Temperature range:-5°C to +40°C

E. Height above sea level:≤2000m

F. Humidity: no exceed 50% while temperature is +40°C
no exceed 90% while month average temperature no exceed 25 °C

G. Standard: IEC60269, EN60269

H. Class of pollution: third class

I. Installation: III

3.Sepcification

Switch Rating Heat Current (A)	Number of Poles	Assorted Fuse	Rated Current (A)
160	3, 4	NT00	4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160
250		NT1	80, 100, 125, 160, 200, 224, 250
400		NT2	125, 160, 200, 224, 250, 300, 315, 355, 400
630		NT3	315, 335, 400, 425, 500, 630

Model No.	HR17-40	HR17-100	HR17-160	HR17-250	HR17-400	HR17-630
Rated insulated voltage Ui	690V	690V	690V	690V	690V	690V
Rated working voltage Ue	380V	380V	380V	380V	380V	380V
Rated working current Ie	40A	100A	160A	250A	400A	630A
Rated short circuit connecting capacity Icm	400A	1000A	1600A	2500A	4000A	6300A
Rated limit short circuit current Inc	50KA	50KA	50KA	50KA	50KA	50KA
Used type	AC-23B	AC-23B	AC-23B	AC-23B	AC-23B	AC-23B
Matched fuse link	R016-40A	R017-100A	NT00-160A	NT1-250	NT2-400	NT3-630

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
