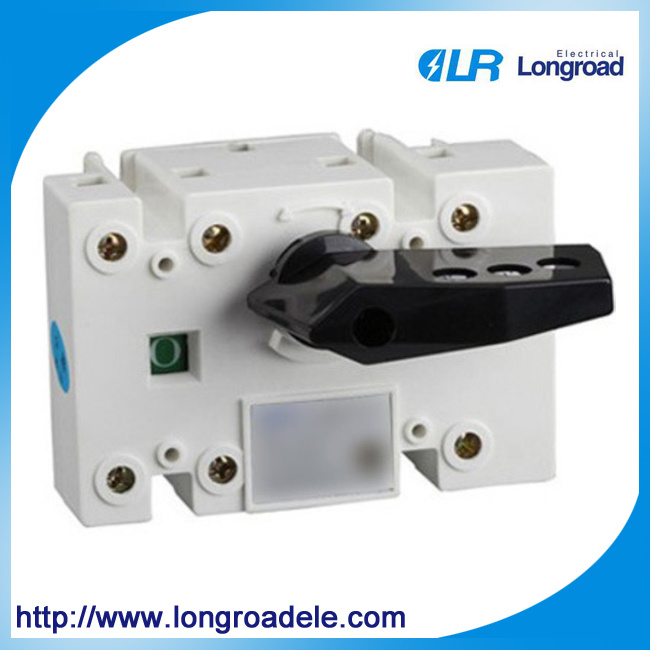

3p/4p Load Isolation Switch, High-Quality Load Insulation Switches

Prod Model:	LGL 32A-4
Model:	Lgl 32A-4
Type:	Low-voltage
Installation:	Indoor High-voltage
Operation:	Electric
Series:	Three
Certification:	CE
Number Of Poles:	3p,4p
Brand:	Longroad

Product Description

General
LGL series Load isolation switch can be divided into 18 specs from 125A to 4000A, i t is the basic type of mod ule design, it has three poles and four poles ( three poles + switch neutral pole), applied to make and break circuit or electric isolate, over 1000A is only for electric isolation.
Symbol window on front face indicates the contact on-off state.

Operation mode
Direct operation: The handle is installed in the middle of switch directly.
Operate outside of cabinet: The handle is installed outside of distribution cabinet.
It can be assembled two groups auxiliary contacts.
Example for lecto type: Rated current 630A,include neutral pole transferring load isolation switch,YGLZ-630A/4J for operating ou tside of cabinet Service environment
1. LGL load-isolation switch can operate under the following conditions
2. Altitude not more than 2000m;
3. The range of ambient temperature is from 5ºC to 40ºC ;
4. Relative humidity not more than 95%;
5. The environment without any explosive medium
6. The environment without any rain or snow attacking. Note: If the product is expected to be used in the environment where temperature is over +40ºC or below -5ºC -45ºC , user's shall tell it to the manufacturer. -
