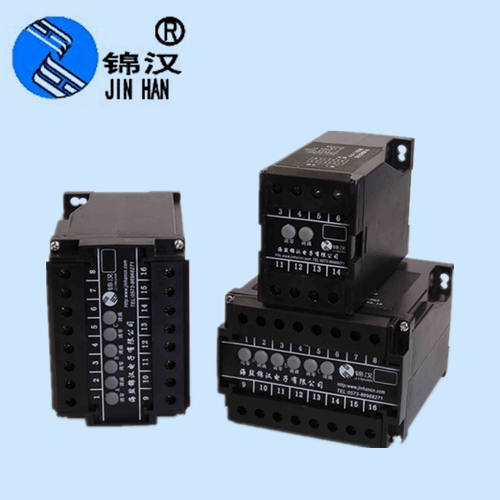

3p4w/3 Phase 4wires AC Negative Sequence Current Transmitter

Name: 3p4w/3 Phase 4wires AC Negative Sequence Current Transmitter
Brand: all-electronics-online.com
SKU: 755878045
Availability: InStock
Rating: 4.8 (22 reviews)

Price:	US $ 350/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	N3-AND-3A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input:	100V
Output:	4-20mA
Export Markets:	Global
Accuracy:	0.5%
Production Process:	Integration
Shell Material:	Black Plastic-Shell
Freight:	Express by Air
Delivery Time:	Depend on Quantity
Installation:	35mm DIN Sliding-Way
Manufacturers:	Haiyan Jinhan Electronic Technology Co.,Ltd
Display Type:	Transmitter

Product Description

3p4w/3 Phase 4Wires DC Transmitter
Model NO.:N3-AND-3A
Output Signal Type:Analog Output
Type:Electromagnetic

Production Process:Integration
Application:Switching Power Supply

Material:Black plastic shell

Consumption:Less Than 5va

Insulation Voltage:AC 2kv/Min.1mA (Between Input ~ Output / Power)
Insulation Resistance:More Than 20m

Surge Voltage:5kv
Temperature:-40 to +70 Degree

Dimension:110mm×75mm×120mm
Output:Digital Sensor

Usage:Current Transducer
Export Markets:Global

Product Description
Three phase AC current voltage Transducer

Function & Feature
Transforms the measured AC current/voltage to the DC current/voltage output according to the linear scale
Excellent temperature characteristic and good working stability
Configuration compactness and briefness

Technical Specification

Reference Standard	GB/T 13850-1998(IEC688-1992)
Accuracy
Long Term stability	≤±0.2%/year.No accumulation error
Temperature influence	≤ 100ppm/oC
Response Time	<400ms
Output Ripple	<0.4%(peak-peak value)
Input burden	Current less 0.2VA;voltage less 0.1VA
Frequency	Nominal frequency ±10%
Maximum output load	Current output Max10V pressure drop
Auxiliary power	Ratedvoltage80%-120%,rated current 90%-110%
Auxiliary load effect	<± 0.1%
Allow excessive input	Current 3rate continuous 10rate 30 secs voltageMax 2ratecontinuous
Dielectric strength	Input /output /power/between the crust 2KV AC 1 minIEC866
Impact test	ANSIC37.90a/1973,IEC255-4 (5kV1.2/50us PulsedVoltage)
Calibration amplitude	Full scale least±3%,zero least±1%
Magnetic field effect	0.4KA/m magnetic field strength change <0.05%
Operating condition	Temperature -10~55oC relative humidity≤95%RHnoncondensing
Storage condition	Temperature -40~70oC relative humidity ≤95% RHnoncondensing

The models of this series are as follows:

Product	Model No.
AC current transducer	N3-AD-1
AC current transducer	S3(T)-AD-1
AC current transducer	S3-AD-1
single phase voltage transducer	N3-VD-1
single phase voltage transducer	S3(T)-VD-1
single phase voltage transducer	S3-VD-1
AC current transducer	N3-AD-1S
AC current transducer	S3(T)-AD-1S
AC current transducer	S3-AD-1S
Ac voltage transducer	N3-VD-1S
Ac voltage transducer	S3(T)-VD-1S
Ac voltage transducer	S3-VD-1S
Power controller	N3(T)-∑WR(S)
Power controller	S3-∑WR(S)
Power controller	S3(T)-∑WR(S)
Frequency transmitter	NS-FD
Frequency transmitter	S3-FD
Frequency transmitter	S3(T)-FD
3 phase 3 wire reactive & current transducer	N3-RAD
3 phase 3 wire reactive & current transducer	S3(T)-RAD
3 phase 3 wire reactive & current transducer	S3-RAD
three phase AC current transducer	N3-AD-3
three phase AC current transducer	S3(T)-AD-3
three phase AC current transducer	S3-AD-3
three phase Ac voltage transducer	N3-VD-3
three phase Ac voltage transducer	S3(T)-VD-3
three phase Ac voltage transducer	S3-VD-3
3 phase 3 wire Power factor transducers	N3-PD-3
3 phase 3 wire Power factor transducers	S3(T)-PD-3
3 phase 3 wire Power factor transducers	S3-PD-3
Negative sequence current transducer	N3-AND-3
3 phase 3 wire var-hour transducer	S3-RHD-3
3 phase 3 wire var-hour transducer	N3-RHD-3
3 phase 3 wire var-hour transducer	S3(T)-RHD-3
Reactive power transducer	S3-RD-3S
Reactive power transducer	N3-RD-3S
3 phase 3 wire var & var-hour transducer	S3-RHR-3
3 phase 3 wire var & var-hour transducer	N3-RHR-3
3 phase 3 wire var & var-hour transducer	S3(T)-RHR-3
3 phase 3 wire var transducer	S3-RD-3
3 phase 3 wire var transducer	N3-RD-3
3 phase 3 wire Phase Angle transducer	S3-UD-3
3 phase 3 wire Phase Angle transducer	N3-UD-3
3 phase 3 wire Phase Angle transducer	S3(T)-UD-3
3 phase 3 wire watt-hour transducer	S3(T)-WHD-3
3 phase 3 wire watt-hour transducer	N3-WHD-3
3 phase 3 wire watt-hour transducer	S3-WHD-3
3 phase 3 wire var transducer(2 output)	S3(T)-WD-3S
3 phase 3 wire var transducer(2 output)	N3-WD-3S
3 phase 3 wire var transducer(2 output)	S3-WD-3S
3 phase 3 wire active & current transducer	N3-WAD
3 phase 3 wire active & current transducer	S3(T)-WAD
3 phase 3 wire active & current transducer	S3-WAD
3 phase 3 wire unbalanced load watt & var transducer	S3-RD-3(3T)
3 phase 3 wire unbalanced load watt & var transducer	N3-RD-3(3T)
3 phase 3 wire unbalanced load watt & var transducer	S3(T)-RD-3(3T)
3 phase 3 wire watt & watt-hour transduce	S3(T)-WHW-3
3 phase 3 wire watt & watt-hour transduce	N3-WHW-3
3 phase 3 wire watt & watt-hour transduce	S3-WHW-3
3 phase 3 wire unbalanced load watt transducer	N3-WD-3
3 phase 3 wire unbalanced load watt transducer	S3(T)-WD-3
3 phase 3 wire unbalanced load watt transducer	S3-WD-3
3 phase 4 wire Power factor transducers	N3-PD-3A
3 phase 4 wire Power factor transducers	S3(T)-PD-3A
3 phase 4 wire Power factor transducers	S3-PD-3A
Negative sequence current transducer	N3-AND-3A
3 phase 4 wire var-hour transducer	S3-RHD-3A
3 phase 4 wire var-hour transducer	N3-RHD-3A
3 phase 4 wire var-hour transducer	S3(T)-RHD-3A
3 phase 4 wire var transducer(2 output)	S3-RD-3AS
3 phase 4 wire var transducer(2 output)	N3-RD-3AS
3 phase 4 wire var transducer(2 output)	S3(T)-RD-3AS
3 phase 4 wire var & var-hour transducer	S3-RHR-3A
3 phase 4 wire var & var-hour transducer	N3-RHR-3A
3 phase 4 wire var & var-hour transducer	S3(T)-RHR-3A
3 phase 4 wire var transducer	S3-RD-3A
3 phase 4 wire var transducer	N3-RD-3A
3 phase 4 wire var transducer	S3(T)-RD-3A
3 phase 4 wire Phase Angle transducer	S3-UD-3A
3 phase 4 wire Phase Angle transducer	N3-UD-3A
3 phase 4 wire Phase Angle transducer	S3(T)-UD-3A
3 phase 4 wire watt-hour transducer	S3(T)-WHD-3A
3 phase 4 wire watt-hour transducer	N3-WHD-3A
3 phase 4 wire watt-hour transducer	S3-WHD-3A
3 phase 4 wire watt transducer(2 output)	S3(T)-WD-3AS
3 phase 4 wire watt transducer(2 output)	S3-WD-3AS
3 phase 4 wire watt transducer(2 output)	N3-WD-3AS
3 phase 4 wire unbalanced load watt & var transducer	S3-RD-3AT
3 phase 4 wire unbalanced load watt & var transducer	N3-RD-3AT
3 phase 4 wire unbalanced load watt & var transducer	S3(T)-RD-3AT
3 phase 4 wire watt & watt-hour transducer	S3(T)-WHW-3A
3 phase 4 wire watt & watt-hour transducer	N3-WHW-3A
3 phase 4 wire unbalanced load watt transduce	S3(T)-WD-3A
3 phase 4 wire unbalanced load watt transduce	N3-WD-3A
3 phase 4 wire unbalanced load watt transduce	S3-WD-3A
3 phase AC current transducer	N3-AD-3T
3 phase AC current transducer	S3(T)-AD-3T
3 phase AC current transducer	S3-AD-3T
3 phase Ac voltage transducer	N3-VD-3T
3 phase Ac voltage transducer	S3(T)-VD-3T
3 phase Ac voltage transducer	S3-VD-3T
Temperature transmitter	S4X-DT
Temperature transmitter	S3(T)-TT-R
Temperature transmitter	S3-TT-R
Temperature transmitter	N3-TT-R
Reactive power transducer	S3(T)-RD-3S
Reactive power transducer	S3(T)-RD-3
Phase Angle transducer	N3-UD-1
Phase Angle transducer	S3(T)-UD-1
Phase Angle transducer	S3-UD-1
3 phase 4 wire watt & watt-hour transducer	S3-WHW-3A
Dc isolation transducer	NS-DT
Dc isolation transducer	S3(T)-DT
Dc isolation transducer	S3-DT
Dc isolation transducer	S4X-DT

Haiyan Jinhan Electronics Technology Co., Ltd was founded on November 18, 2004 which located in Haiyan Science and Technology Park, NO 211, Yanbei Road, Zhejiang China.

Our goal is to design and manufacture multiple series of products for power systems. With the ISO9001 / ISO9002 approvals, we have always sustained the principle of producing the best quality, best service and best technical skills.

For over 10 years, JINHANCN has contributed and always strived to develop the most durable and stable products for the usage of power systems. We have earned excellent customer feedback and marketing reputation from all over the world.

Our products have been applied to both measuring instruments and power distribution systems for utilities and related industries. And we also have developed various series of products to meet the demands of various marketing such as FP/GP/EP/S3/N3 Series High-reliability Power Transmitter, Transmission Screen, Malfunctional Electric Energy Meter, Temperature Controller etc.

We truly believe that to give our customers the best service is our main purpose and long-term responsibility.

With spirited teamwork, our business has expanded to global markets successfully. All JINHANCN products are originally designed and manufactured (ODM).

We have been researching and developing new high-tech products continually in order to meet increasing demand for electricity. To improve business administration and quality assurance, we run CWQC (company wide quality control) with strict step by step quality compliance to our production procedure in compliance with ISO9001.
