3pH/in 3pH/out High Frequency Online UPS HP9330c Series
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HP9330C 20-80KVA |
| Product Name: |
High Frequency Online UPS |
| Capacity: |
20-80kVA |
| Voltage Range: |
380/400/415VAC |
| Power Factor: |
> 0.99 |
| Current Crest Ratio: |
3:1 |
| Rated Voltage: |
380/400/415VAC Three-Phase 4 Line + Earth Line |
| Rated Frequency: |
50/60Hz |
| Mainly Application: |
Telecom |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

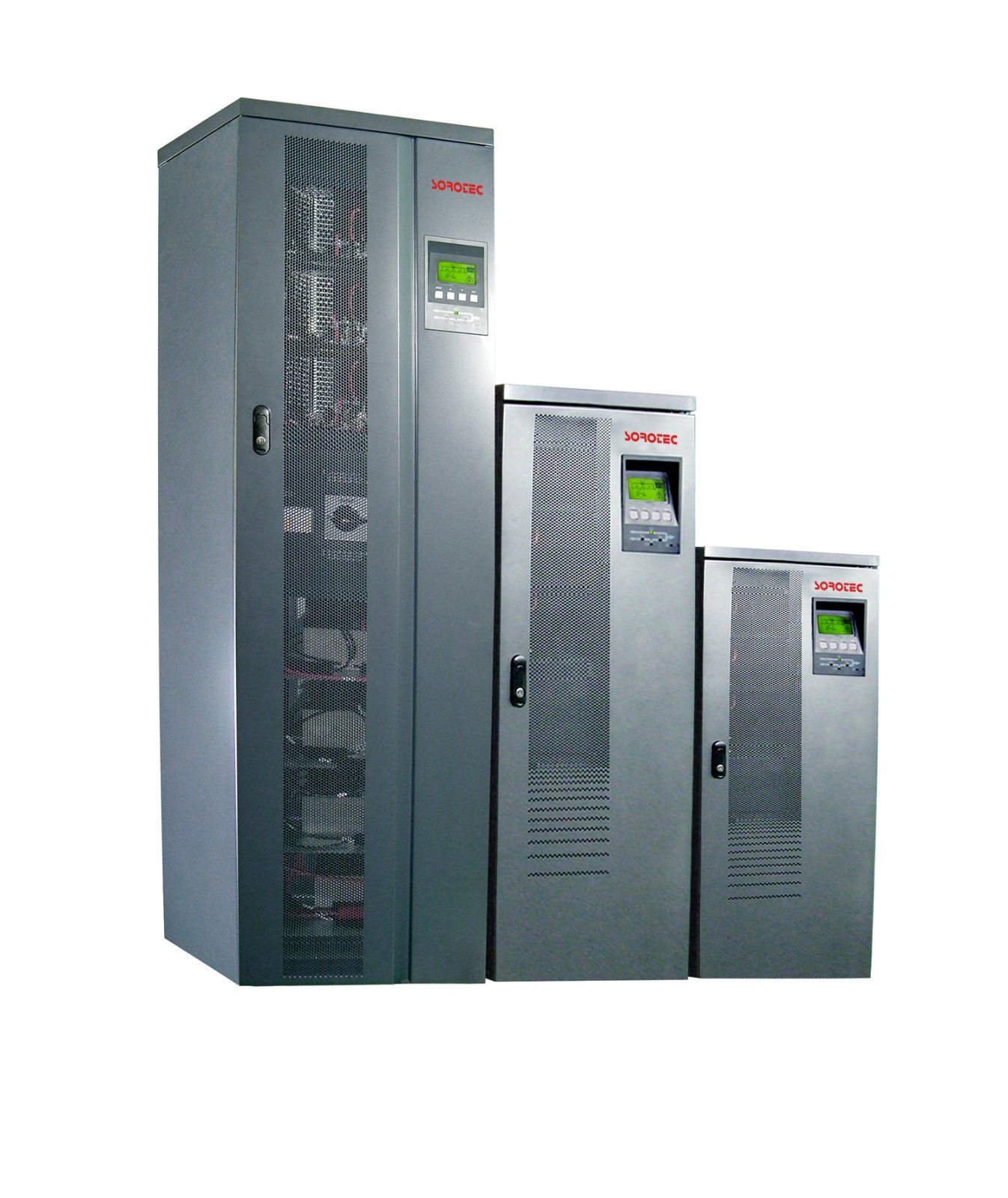

3Ph/in 3Ph/out High Frequency Online UPS HP9330C Series
Applications:
Severs, Data Center, Critical network devices, Sensitive electronic equipment, Telecom.
Key Feature:

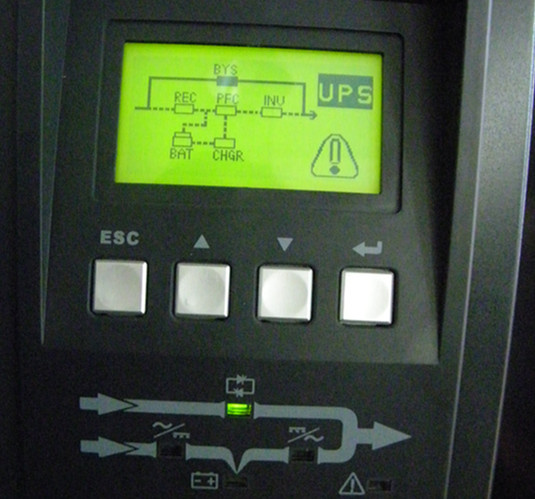

1. Large LCD Graphical display panel, convenient for operate
2. Advanced IGBT rectification, Input power factor: 0.99
3. Input current harmonic < 3%
4. The Efficiency of the machines is as high as 94%
5. Connect up to 8 units in parallel for maximum flexibility (no parallel kit required), and compatible to battery share in the parallel mode, which helps the customers to extend the system capacity with lowcost.
6. Intelligent management of battery charging and discharging.
7. Twin-Chiannel line input.
Technical Specifications:| Model | HP9330C 20-80KVA |
| 20K | 20K-XL | 30K-XL | 40K-XL | 60K-XL ISO | 80K-XL ISO |
| Rated Capacity | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| Rated Voltage | 380/400/415VAC Three-phase 4 line + earth line |
| Rated Frequency | 50/60HZ |
| Input |
| Voltage range | 380VAC± 25% |
| Frequency range | 50/60HZ± 5% |
| Wiring | Twin- channel line input |
| THDI | < 3% |
| Power factor | > 0.99 |
| Output |
| Voltage precision | 380VAC (± 1%); Three-phase 4 line + earth line |
| Frequency precision | 50/60HZ± 0.2% |
| Power factor | 0.8 |
| Current crest ratio | 3: 1 |
| Overload capacity | ≤ 110 % for 60 minutes; ≤ 125% for 10min; ≤ 150% for 1min; |
| Battery |
| Charging current | 0.5~4.5A (adjustable) |
| Backup time | 7mins | Determined by the amount of external-connected cells |
| Quantity | 28/30/32 (selective); compatible to battery share in the parallel mode |
| Efficiency |
| Line mode/BAT mode | 94% |
| ECO mode | 98% |
| Indication |
| LCD | I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
| Communications |
| Communication interface | RS232, AS400, RS485, Service, EPO, BAT temperature compensation,
Intelligent Slot, SNMP (Option) |
| Operation Environment |
| Temperature | 0~40º C |
| Humidity | 0~95% (no dewfall) |
| Storage temperature | -25º C~55º C |
| Altitude(M) | < elevation 1500m |
| Weight |
| Weight(KG) | Net
weight | 182.5 | 82 | 110 | 114 | 282 | 306 |
| Gross weight | 204 | 122 | 160 | 164 | 356 | 380 |
| Dimension (WXDXH)mm | 420X630 X1240 | 420X630 X950 | 490X680 X1180 | 600 X800 X1850 |
APPLICATION OF OUR PRODUCT:
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip

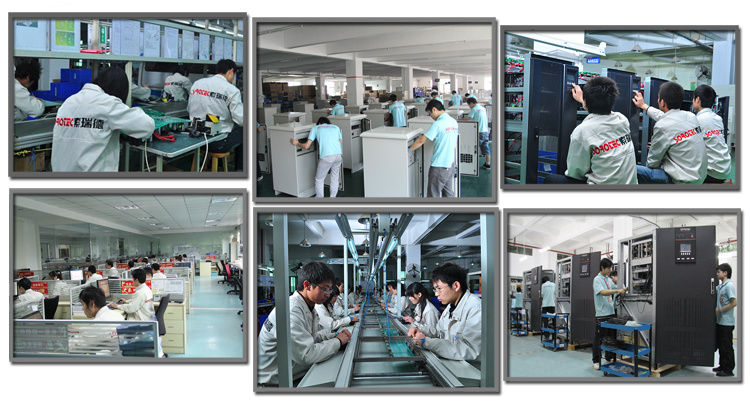

COMPANY SHOW:
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
WHY CHOOSE US ?
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
