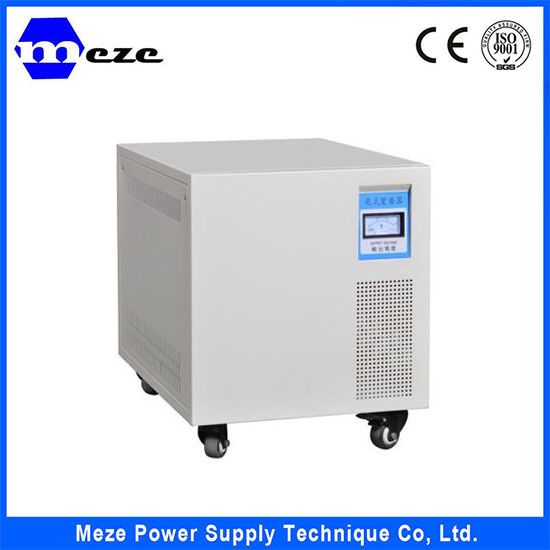

3phase 3kw AVR Generator Vatiable Transformer

Prod Model:	MZ-MTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size(Wxdxh)mm:	400X450X480
Weight(Kg):	97
Color:	White
Input Voltage:	380V
Output Voltage:	220V
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Certification:	CE
Brand:	Meze

Product Description

3phase5kw avr  generator vatiable transformer


ModeI	capacity	impotvoItage	outputvoItage	MEAS	NK(kg)
MTA3003	3KVA	3φ380V	3φ220V/220V	350x300x400	20
MTA3005	5KVA	3φ380V	3φ220V/220V	350x300x400	26
MTA3010	10KVA	3φ380V	3φ220V/220V	400x400x430	35
MTA3015	15KVA	3φ380V	3φ220V/220V	400x400x430	45
MTA3020	20KVA	3φ380V	3φ220V/220V	400x450x480	59
MTA3025	25KVA	3φ380V	3φ220V/220V	400x450x480	75
MTA3030	30KVA	3φ380V	3φ220V/220V	400x450x480	88
MTA3035	35KVA	3φ380V	3φ220V/220V	400x450x480	97
MTA3040	40KVA	3φ380V	3φ220V/220V	400x450x480	110
MTA3050	50KVA	3φ380V	3φ220V/220V	400x450x480	123
MTA3060	60KVA	3φ380V	3φ220V/220V	500x600x680	136
MTA3080	80KVA	3φ380V	3φ220V/220V	500x600x680	155
MTA3100	100KVA	3φ380V	3φ220V/220V	500x600x680	170

Characteristics and application scope
The input and output have obvious sign.
Beautiful appearance, convenient wiring, stable performance.
Input and output side have cable locks to fixed wiring, to avoid because of moving, cable
fall off and cause danger.
The fan can accelerate air circulation, Different voltage grade are widely used in all kind s
of load, There is no limit on the equipment category, Advantage is low consumption, can be
set independently, can be installed in the control cabinet and equipm ent enclosure.
Modular housing, maintenance, maintenance, replacement is simple and easy.
Scope of application: PCB drilling machine, forming machine, exposure machine, laser
light painting machine, CNC/spark machine, machining center machine, computer, medical
equipment, rectifier equipment, SMT equipment, printing machinery.

Main characteristics:
Work form: dry autoformer type \ isolation transformer
The rated voltage:Three phase 380 v input, the output 220 v / 200 v, special specifications
according to customer request design production
Connection mode:Auto Y-shape,Quarantie Y/ Form connection method
Insulation class: B
Insulation resistance:≥1000 m Ω
Working noise: no-load ≤45dB ,to load ≤50dB( not include the air cooling system)
Equipment efficiency:Auto ≥98%,Quarantine ≥ 97%
Rate of change:≤ 3% (out secondary)
Phase voltage difference: ≤1%
Apply frequency: 50Hz/60Hz
Insulation and pres environment temperature: -10°C~ 40°C
relative humidity:  ≤80%
service environment: No corrosion gas, no dust
