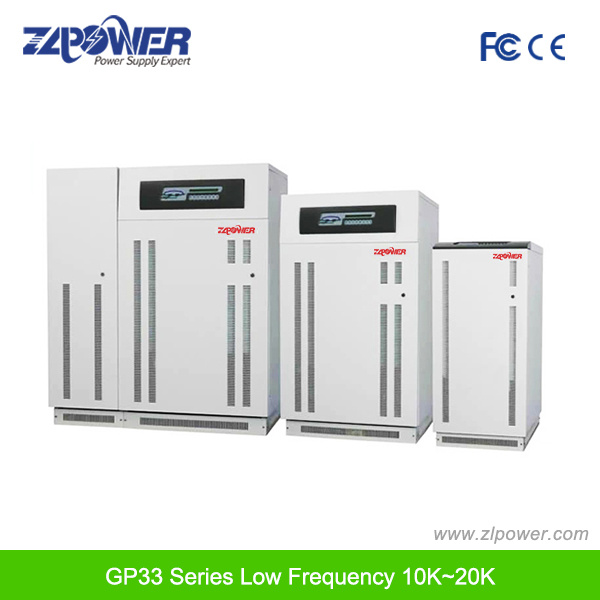

3phase in 3phase out Low Frequency Online Industry UPS 10-200kVA

Name: 3phase in 3phase out Low Frequency Online Industry UPS 10-200kVA
Brand: all-electronics-online.com
SKU: 673846775
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP3310K~GP33200K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Demension:	260570717
Weight:	90kg
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Zlpower

Product Description

Uninterrupted Power Supply, double conversion UPS 40-200kVA

No Breaks UPS 10kVA-200kVA

1.3phase+neutral+groud
2. High frequency
3. Digital LCD display, able to set voltage
4. IGBT technology
5. Bypass
6. Online, Double conversion
7. Operating battery: Lead acid battery
8. CE

UPS Key features:
1. Advanced digital circuit system
2. Intelligent management of batteries status
3. Intelligent inspect and monitor UPS systems every second
4. Intelligent communication tool remote control
5. The sixth generation IGBT inverter technology
6. High definition screen information management technology, humanity LCD display with Chinese and English, can show directly UPS status and operation, data records in table format, and events records, also can change language by main menu.
7. LED status shows operate steps and status directly.
8. GP5300 series UPS use touch screen with excellent ageing resistance function and case dealed with fluorin and carbon technology, lead it is environmental and durable; The UPS adopts knock-down modular design, ensure it easy to maintain and save resources much; It is with new advanced turbofan which can release heat well and save energy; It also use non-circumfluence controlled circuit, can save electric much; GP5300 UPS adopts green commute and inverter technology, ensure to provide clear energy for users; Its advanced digital circuit technology let whole UPS with 80% more life than before.

UPS Application: Telecommunication, banks, negotiable securities, traffic, arms, security, electronics, industry, large enterprises.

Model

GP5310 ~ GP53200 series UPS

Capacity(VA)

10K

15K

20K

30K

40K

60K

80K

100K

120K

160K

200K

Noninal output capacity

8KW

12KW

16KW

24KW

32KW

48KW

64KW

80KW

96KW

128KW

160KW

Operate type

Double conversion online type

Input

voltage

220V/380,230/400,240/415V,±25%

Phase

Three phase +N+G

Frequency

50Hz/60Hz±5%

Input power factor

0.95(with input filter)

Soft start

0-100% 5sec

Output

Voltage

220V/380,230/400,240/415V,±1% (stable load) ,±5%(active load)

Phase

Three phase +N+G

Frequency

50/60Hz (1±5%,AC mode),50/60Hz (±1%,Battery mode)

Power factor

0.8

Output wave

Pure sine wave

Distortion

Linear load <3%, non linear load<5%

Batteryvoltage

Standard battery voltage

360V/384V

Floating charge

405V/432V

Terminal voltage

315V/336V

Charge current

1A-50A (Can calculate and set according to battery configuration software)

Maximum discharge current

113

169

225

282

338

381

507

Main Function

Active voltage change

0-100%±5%

Instant recover time

<10ms

Imbalance voltage

<±5%,<±1%( Balance load voltage)

Overload capacity

125%→10min,150%→1min

Static switch

Automatic

Protection

UPS over current, short circuit, battery low voltage, over heat

Cold method

Compel aeration ( temperature control mode)

Noise

60-65dB

Display

LED,LCD display

Communicatin port(Optional)

RS232,SNMP,dry-contact

Alarm

Alarm with buzzer and indicators

Environment

Temperature 0~40cHumidity 0~90%

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
