3phase NEMA17 AC Servo Motor with Encoder

Name: 3phase NEMA17 AC Servo Motor with Encoder
Brand: all-electronics-online.com
SKU: 746926685
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 80-100/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	17ST22201630
Markets:	North America,South America,Mid East,Western Europe
Rated Current:	0.65
Rated Voltage(VAC):	220 V
Rated Speed:	3000 Rpm
Rated Torque:	0.16
Rated Power:	50
Motor Length:	92
PPR:	2500
Safety Class:	IP65
Number Of Stator:	Three-Phase
Function:	Driving
Brand:	Baolong
Certification:	CE

Product Description

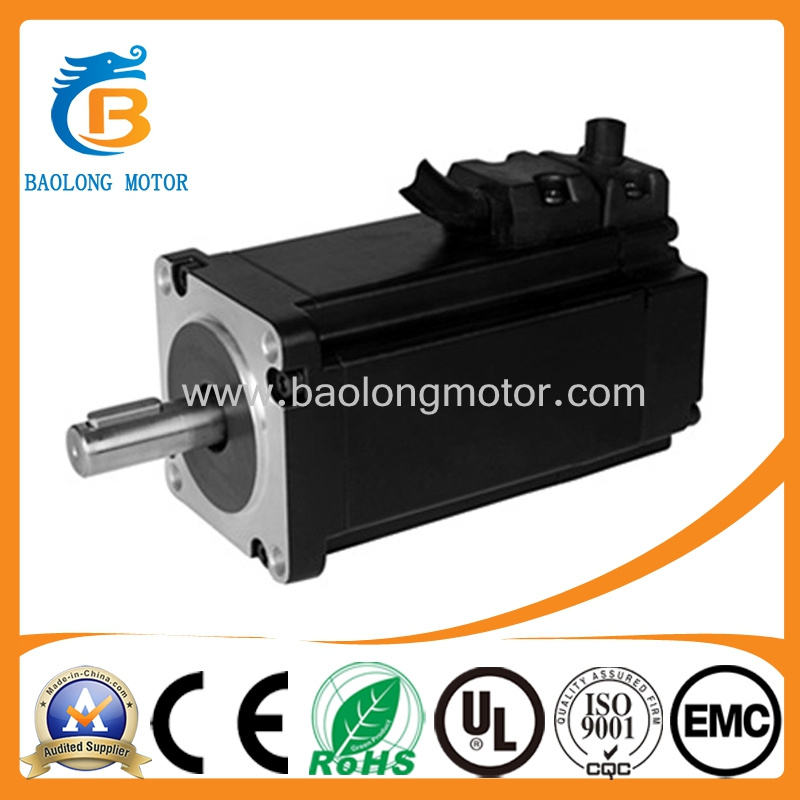

3phase NEMA17 AC Servo Motor with Encoder

Baolong's servo motor series are at the leading level in technology. Its performance far exceeds the traditional designs of the motor. Our servo motor adopts the split type stator with iron core structure, and insulating structure design of patentability. Every stator is used after an epoxy potting process. The rotor is made by rare earth magnetic ring which holding high magnetic energy. The motor is been strict reliable designed and tested. Our servo motor consistency on the production line has a strict control index. Baolong's servo motor increases by more than 30% on the torque density, compared with traditional design, and the holding torque does not exceed 1.5% of the rated torque. Our motor running smoothly; and higher control precision.

Motor Model	17ST22201630	Number of Phase	3
Number of Poles	8	Rated Voltage(VDC)	220
Rated Speed(Rpm)	3000	Rated Torque	0.16
Rated Power(w)	50	Reted Current(A)	0.65
Peak Current(A)	1.95	Peak Torue(N.m)	0.48
Rotor Inertia(kg.cm2)	0.031	Torque Constant(N.M/A)	0.265
Torque Constant(V/krpm	16	Line-line Resistance(Ω)	16.6
Length(mm)	92	Weight(kg)	0.5
Encoder line number(ppr)	1000or2500	Insulation class	F
Safety class	IP65	Temperature	-20ºC-40ºC(unfrozen)
Humidity	Below 90%RH withno condensation	Environmental science	away from corrosive, inflammable gas, oil andldust

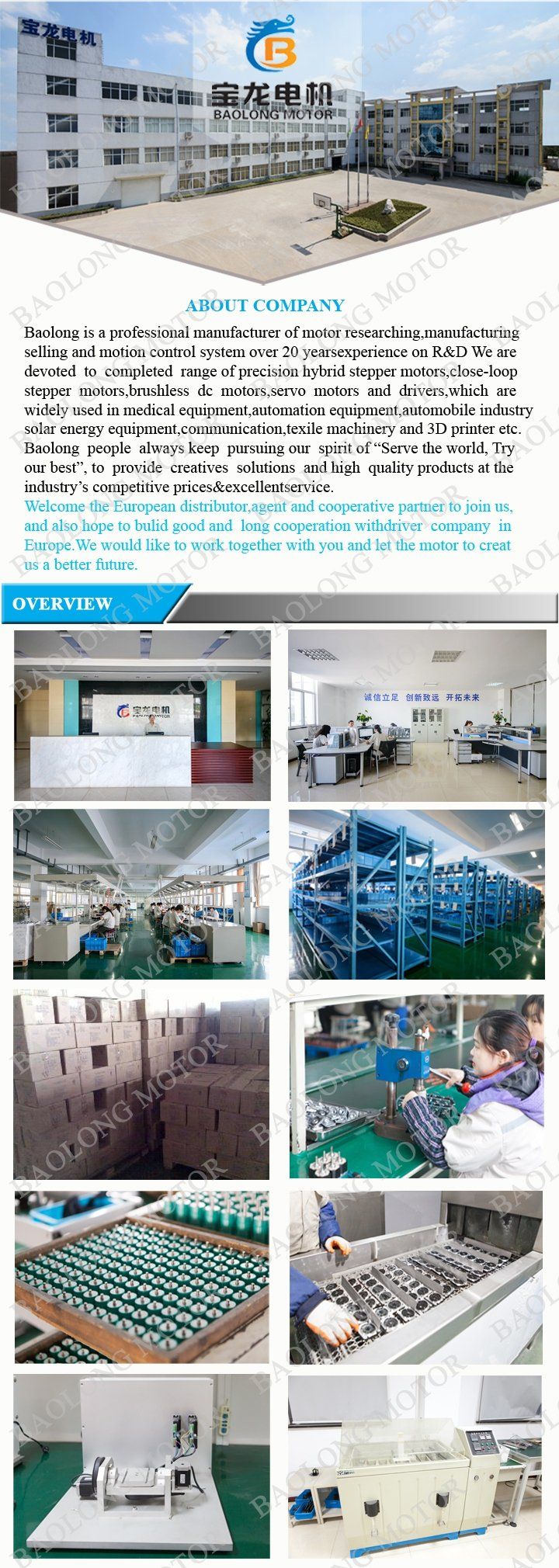

Changzhou Baolong Motor Co., Ltd, established in 2004, is a high-tech enterprise, which is engaged in the development, production and selling kinds of micro motor and motion control systems.

Using high-quality materials, sophisticated manufacturing process and strict quality management our product line includes almost all kinds of high-quality motors, such as hybrid stepper motors, close-loop stepper motors, brushless DC motors, servo motors, etc. Our company is one of the leading manufacturers in domestic and international market, and our products are at the same level of international famous-brand ones. Our products are widely used in computer peripheral devices, communications, stage lighting, textiles, packaging, printing, medical equipment, sewing machines, and other industrial automation systems.

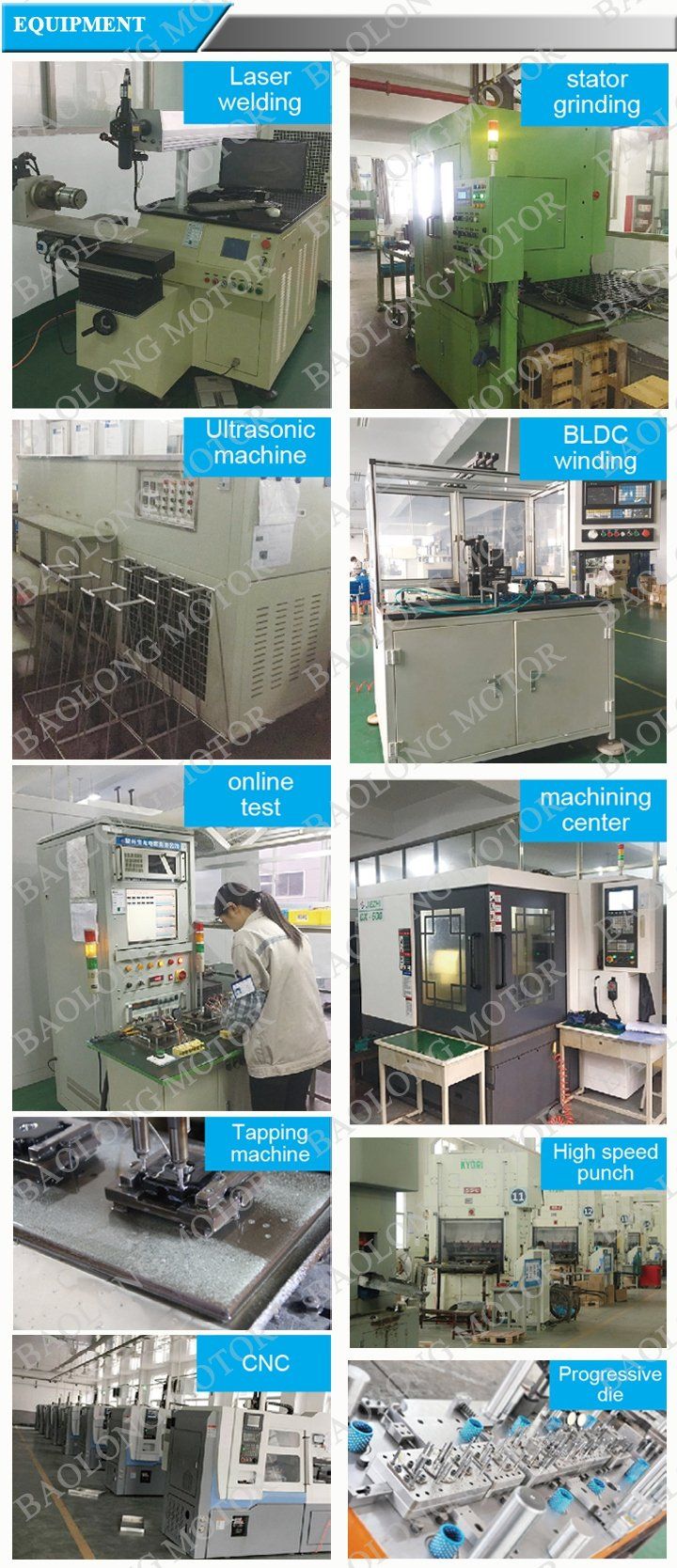

Our company is rich in technical experience, we use advanced production process and testing equipment, and obeys advanced quality management requirements in production, such as ISO9001: 2008, 6 Sigma. Besides, our company also has obtained the CE certificate, and all of our products are RoHS compliant.

With the spirit of "product innovation, high quality, excellent service", our company will continuously focus on micro motor industry, and provide more high-quality products and more professional service for our clients. We try our best to win the client' S trust by our high-quality products, excellent service and reasonable prices. We are becoming the leader of the micro motor industry.
