3port Pass 1550, 1310/1490 Reflect Mux Demux Wdm

Name: 3port Pass 1550, 1310/1490 Reflect Mux Demux Wdm
Brand: all-electronics-online.com
SKU: 836877105
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 28/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFWDM-P55-R31/49-SC/APC-R8S
Usage:	CATV, FTTH, Wdm Systems
Type:	Wireless
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

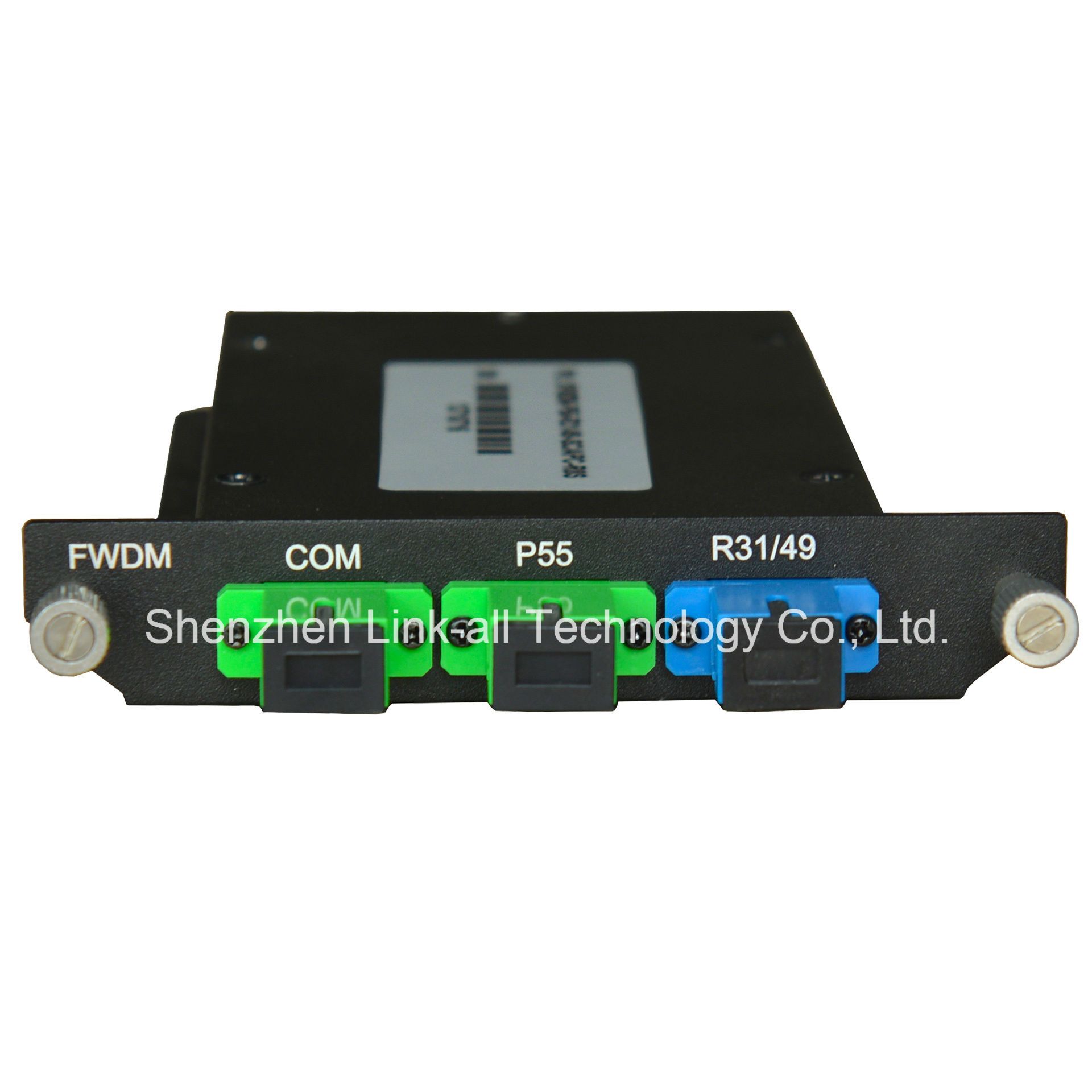

3Port Pass 1550, 1310/1490 Reflect Mux Demux WDM

Product Overview

3 port FWDM use the thin film filter to ensure high quality and perfect optical performance. It can achieve
1310/1490, 1550 two channel optical signal Mux and Demux, and was widely used in CATV, Telecommunications, Internet and so on.
3 Wavelengths, 1RU 19" rack mount chassis, 8 slots & Standalone

Features

Cost-effective CWDM technology
Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Pass band
High Channel Isolation
High Stability and reliability

Applications

FTTH Application
Testing instruments
ONU
CATV
WDM Systems

Performance Specification

Parameter		Unit	Value
Pass band wavelength range		nm	1540~1620
Reflection band wavelength range			1260~1500
Insertion loss	Reflection channel	dB	≤ 0.5
	Pass channel		≤ 0.6
Polarization dependent loss		dB	≤ 0.1
Ripple in Pass band		dB	≤ 0.4
Return loss		dB	≥ 50
Directivity		dB	≥ 50
Insertion loss temperature sensitivity		dB/°C	≤ 0.005
Operating temperature		°C	-10~70
Storage temperature		°C	-40~85
Fiber type		/	Corning SMF-28e
Connector type		COM	SC/APC
		P1550	SC/APC
		R1310/1490	SC/UPC

Ordering Information

a. Chassis

8-slot, 19'' 1RU Chassis

b. Plug-in Module

SFWDM-P55-R31/49-SC/APC-R8S

SFWDM	Special Fiber Wavelength Division Multiplexing
P55	Pass Band Wavelength: 1550nm
R31/49	Reflection Wavelength: 1310&1490nm
SC/APC	Connector type: SC/APC
R8S	19" 1RU rack-mount with 8 slots
