3s 30A BMS PCM Li-ion Battery Board for Electric Tools/ Electric Hand Drill/ Screwdriver

Name: 3s 30A BMS PCM Li-ion Battery Board for Electric Tools/ Electric Hand Drill/ Screwdriver
Brand: all-electronics-online.com
SKU: 732576882
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 5.8-6/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Battery Pack Series:	3s
Max Continuous Discharge Current:	30A
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

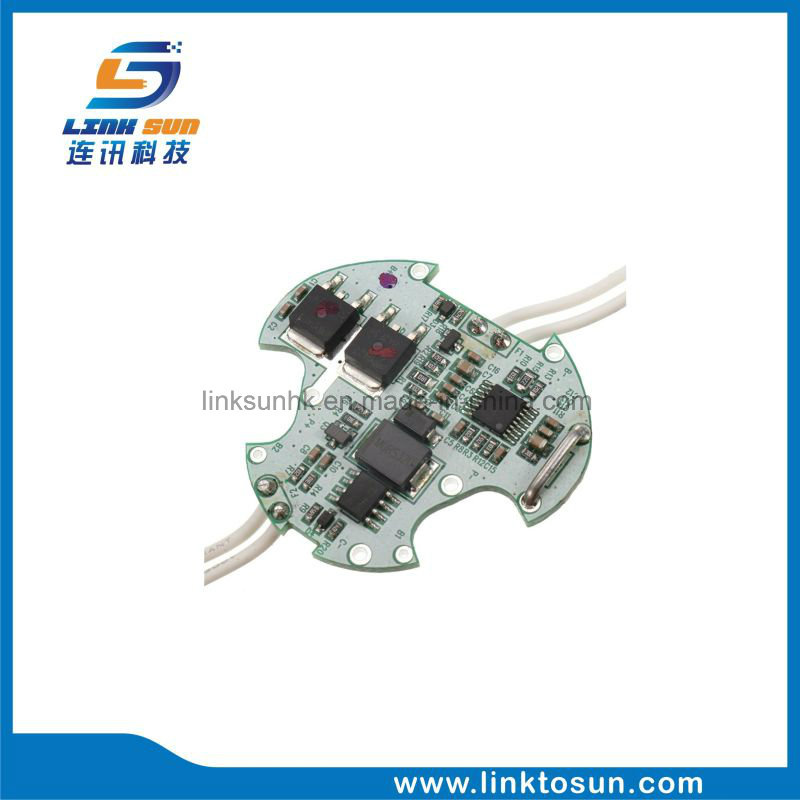

3S 30A PCB/PCM for 11.1V lithium ion battery pack PCM

Product Description

This is The PCB for 3 series 12V hand drill battery protection board with 30A continuous discharge current ,

1) Over-charge protection voltage with single cell :4.25V±0.025V

2) Over-discharge protection voltage with single cell :2.50±0.1V

3)Max continuous working current :30A

4) Over-current protection :40A

5) Suggest charge current : 1A-2A

6) Functions : Over-charge protection ,over-discharge protection ,

over-current protection ,short circuit protection .High temperature detecting protection

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
