3s 4A Li-ion/Li-Poly Battery PCM BMS with Balancing

Name: 3s 4A Li-ion/Li-Poly Battery PCM BMS with Balancing
Brand: all-electronics-online.com
SKU: 729827542
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Battery Series:	3s
Over-Discharge Voltage Protectio:	2.40V/Cell
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

We have over six hundreds of PCM/BMS series products for your choice, most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.

Our main PCB/BMS normally adopt imported raw material for reliable quality, IC from Japan, MOS from USA, Components from Sumsang, Almost Zero RMA.

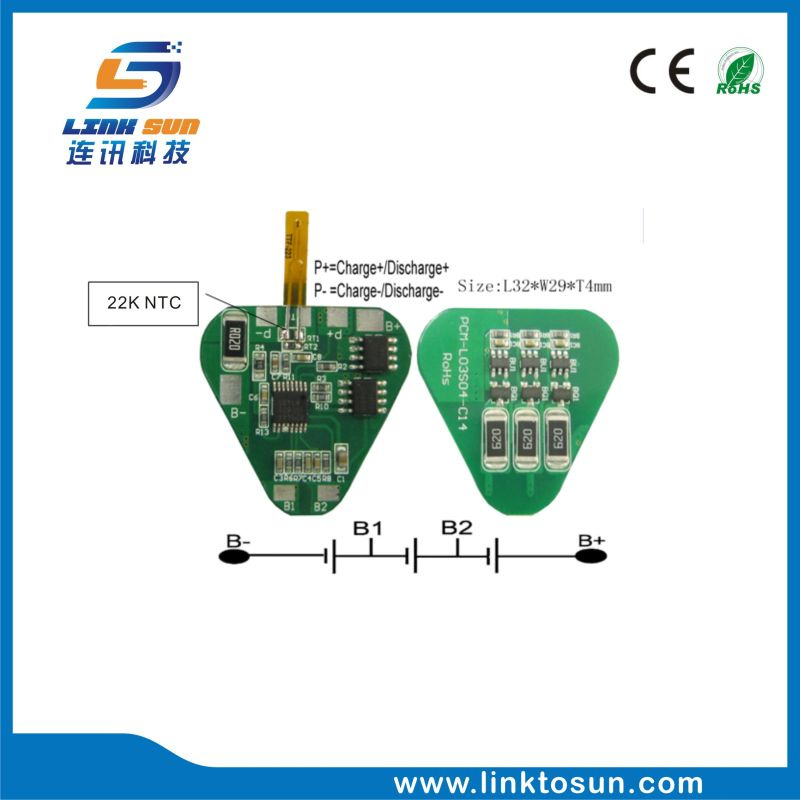

PCM-L03S04-C14

1,Paremeter:
No	Item	Spe	Comments
1	Balance start voltage	4.20±0.05V	PCM tester
6	Balance start current	67±10mA	PCM tester
1	Over charge detect voltage	4.35±0.05V	PCM tester
2	Over charge detect delay time	0.5S-2S	PCM tester
3	Over charge release voltage	4.15±0.1V	PCM tester
4	Over discharge detect voltage	2.40±0.1V	PCM tester
5	Over discharge detect delay time	50mS-1500mS	PCM tester
6	Over discharge release voltage	3.0±0.1V	PCM tester
7	Short Circuit protection	Cut load auto recovery	P+,P- short circuit
8	Short circuit protection delay time	200-800us	PCM tester
9	Over current protection	7A-9A	PCM tester
10	Over current protection delay time	5ms-60ms	PCM tester
11	Charging voltage	DC:12.6V CC/CV	P+,P-
12	P+,P- max input voltage	DC:20V	P+,P-
13	Working current	4A	Electronic Load
14	Resistance	≤60mΩ	B- to P-
15	Current consumption	≤50uA	B+,B-
16	Working temperature	-40~80ºC
17	Storage temperature	-55~125ºC

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
