3s1p 11.1V 2.9ah 18650 Li-ion Battery Pack

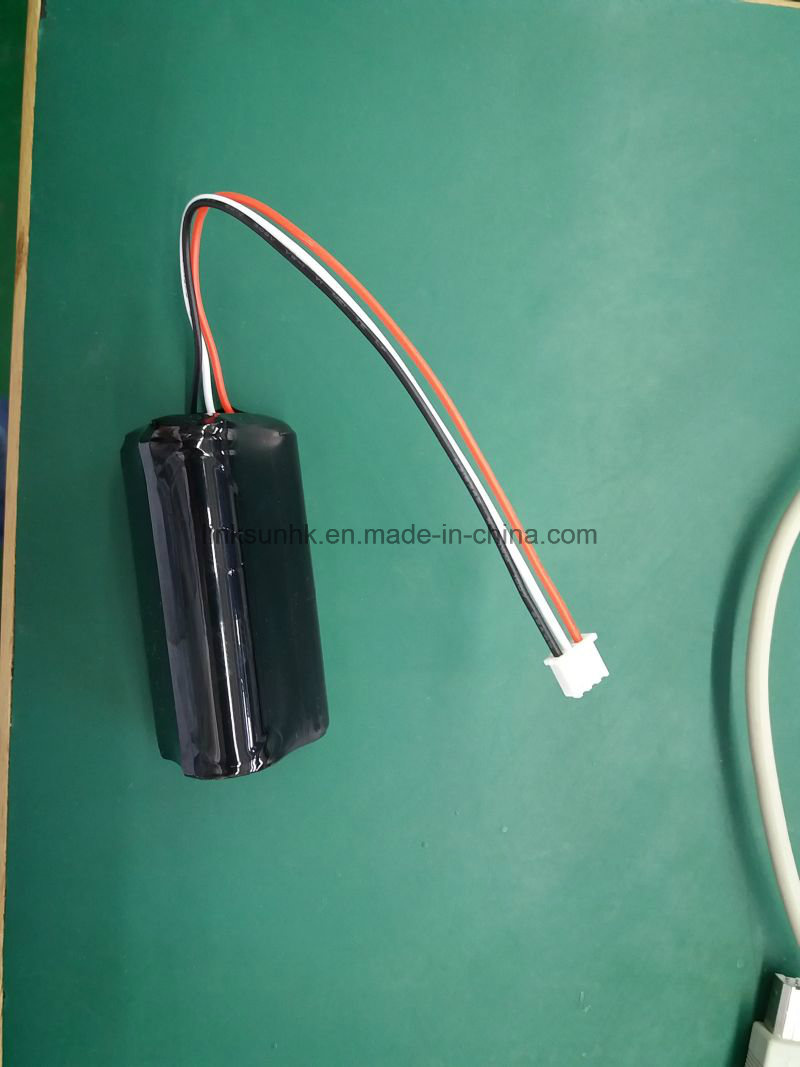

Name: 3s1p 11.1V 2.9ah 18650 Li-ion Battery Pack
Brand: all-electronics-online.com
SKU: 730026692
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	US $ 15/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Combination:	3s1p
Cell:	18650
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel

Product Description

High performance 11.1V 2.9Ah volt lithium ion battery

Nominal Voltage	11.1V
Nominal Capacity	2.9Ah
Cell Material	Li(NiCoMn)O2
Weight	0.1Kg
Outside dimension	customized
Working discharge current	Max 4A
Connector	JST XH-3Pinr
Assembly Mode	3S1P
With BMS/PCB	Yes,regular version or customized
Over charge protection	Yes
Over discharge protection	Yes
Over current protection	Yes
Short Circuit protection	Yes
Temperature protection	Yes
UART/CANBus	Optional
Cell balancing function	YES
Deep sleep function	Optional
Pollution-free	Yes
Memory effect	No
Charge Method	CC-CV
Operation Temperature	Charge:0-45^oC
Operation Temperature	Discharge:-20-60^oC

1,Paremeter:
No	Item	Spe	Comments
1	Balance start voltage	4.20±0.05V	PCM tester
6	Balance start current	67±10mA	PCM tester
1	Over charge detect voltage	4.35±0.05V	PCM tester
2	Over charge detect delay time	0.5S-2S	PCM tester
3	Over charge release voltage	4.15±0.1V	PCM tester
4	Over discharge detect voltage	2.40±0.1V	PCM tester
5	Over discharge detect delay time	50mS-1500mS	PCM tester
6	Over discharge release voltage	3.0±0.1V	PCM tester
7	Short Circuit protection	Cut load auto recovery	P+,P- short circuit
8	Short circuit protection delay time	200-800us	PCM tester
9	Over current protection	7A-9A	PCM tester
10	Over current protection delay time	5ms-60ms	PCM tester
11	Charging voltage	DC:12.6V CC/CV	P+,P-
12	P+,P- max input voltage	DC:20V	P+,P-
13	Working current	4A	Electronic Load
14	Resistance	≤60mΩ	B- to P-
15	Current consumption	≤50uA	B+,B-
16	Working temperature	-40~80ºC
17	Storage temperature	-55~125ºC

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
