| Prod Model: |
AYAA-LI3S4P-104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Composition: |
3series 4parallel |
| Max Charge Voltage: |
12.6V |
| Max Continuous Charge Current: |
5A |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Size: |
Customized |
| Usage: |
Solar System |
Product Description
Ayaa have three main divisions related to portable power supply:
1. PCM/BMS For Li-ion/Li-polymer/LiFePO4 battery pack
2. Customized Assembly battery packs with our high quality PCM/BMS
3. Matching Charger for Lithium/Li-ion/Li-po/LiFePO4 battery pack

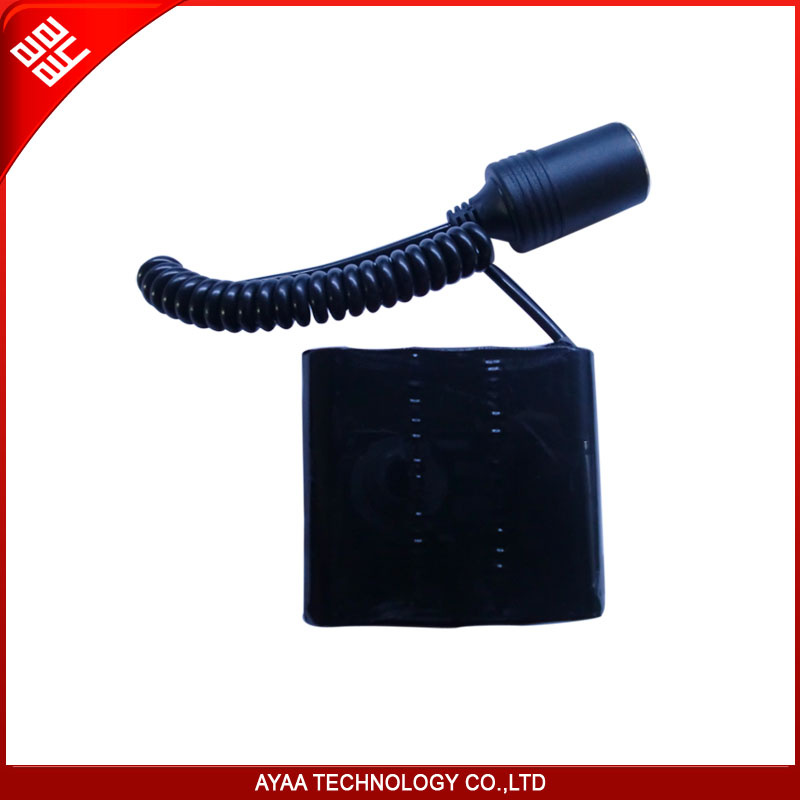

Samsung 3S4P11.1V 10.4ah Li-ion Battery Pack
1)Safe & reliable
2)12 months warranty
3)Eco-friendly
Advantages
High energy density
Potential for yet higher capacities.
Relatively low self-discharge
Self-discharge is less than half that of nickel-based batteries.
Low Maintenance
No periodic discharge is needed; There is no memory.
· Very low profile
Batteries resembling the profile of a credit card are feasible.
· Flexible form factor
Manufacturers are not bound by standard cell formats. With high volume, any reasonable size can be produced economically.
· Lightweight
Gelled electrolytes enable simplified packaging by eliminating the metal shell.
· Improved safety
More resistant to overcharge; Less chance for electrolyte leakage.
Application:
Lithium ion provide long lasting energy for portable equipment and other devices such as:
1. Portable equipment: Laptop, camcorder, PDA, Digital camera, portable DVD etc.
2. Home appliances: Two-way radio, Walkie-talkie, Electric toys, Electric bicycles, Emergency lighting
3. Military equipment: IR telescope
4. Telephone switchboard, electric equipments, power instruments and meters
5. Uninterrupted power source (UPS) for computer, Emergency Application, Medical devices
6. Power transmission and transformer station, switch-control, and accident lighting
7. Fire fighting, safety device, and alarm monitoring
8. Automatic office system
9. Radio communication system
10. Emergency lighting and car/ship starting system
11. Portable electric appliances and mining system
12. Traffic and navigation signal lamp
13. Solar Energy: Solar Street lights, Solar LED Lights
| Rechargeable 11.1V 10.4AH Lithium-ion battery pack |
| Product name | 11.1V 10400mAh li-ion battery pack |
| Model | AY-Li3S4P-104 |
| Cell assembled mode | Samsung 18650 3.7V/2600mAh |
| Chemistry | Li-ion |
| Configuration | 3S4P |
| Norm voltage | 11.1V |
| Max charge voltage | 12.6V |
| Storage conditions | Temperature: -20~60 deg. C |
| Humidity: 45 ± 10%R. H |
| Over charge detection voltage | 4.25V/cell |
| Over discharge detection voltage | 2.5V/cell |
| Over current protection | According to customer requests |
| Max continuous charge current | 5A(Matching PCM-L04S10-178) |
| Max continuous discharge current | 5A(Matching PCM-L04S10-178) |
| Cycle life | ≥500times |
| Dimension | Flexible |
| Weight | 500g |
