3sc7-F40 Contactors

Name: 3sc7-F40 Contactors
Brand: all-electronics-online.com
SKU: 824611275
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 3-4/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	3tf40

Product Description

Product Description

GWIEC China Suppliers CJX1-09 9A 220V Single Phase AC Types Electrical Contactor

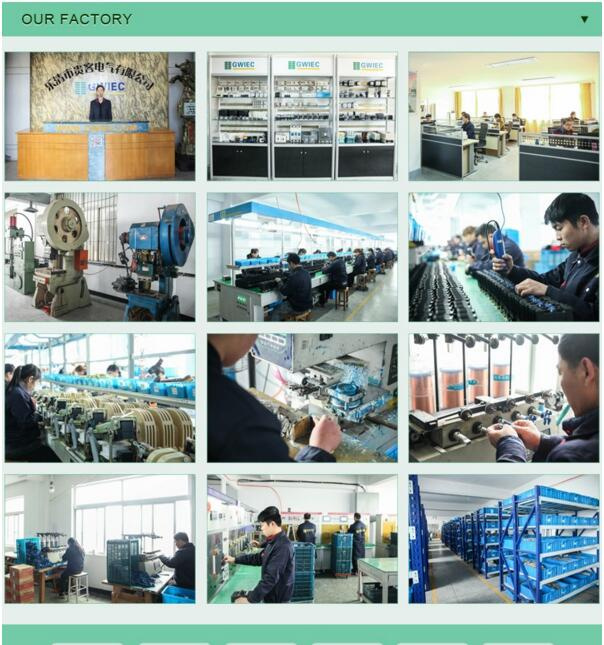

Yueqing GWIEC elecric CO.,LTD is manufactory of MCB,MCCB,Contactor, relay, with capacity of 200,000pcs monthly. GWIEC own professtional Pad Printing Machine ,Winding Machine,Punching Machine, Assembly Lines, which has been verified onsite by world-leading inspection company TUV Rheinland.

The MCB passes CE, ROHS ,according to IEC 947-1

Product Description

Application:

lC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 standard.

Specification:

Type	CJX1
9~12	16~22	32	45~63	75~85	110~140	170~205	250~300	400~475
Mechanical endurance(×106)		10	10	10	8	8	8	8	8	8
Conventional thermal current(A)		20	30	45	80	100	160	210	300	400/550
Rated insulation voltage(V)		660	660	660	1000	1000	1000	1000	1000	1000
Rated(380V)operating current(A)	AC-3	912	16/22	32	45/63	75/85	110/140	170/205	250/300	400/475
Rated(380V)operating current(A)	AC-4	3.3/4.3	7.7/8.5	15.6	24/28	34/42	54/68	75/96	110/125	150
Power of controllable motor(KW)AC-3	380V	4/5.5	7.5/11	15	22/30	37/45	55/75	90/110	132/160	200/250
Power of controllable motor(KW)AC-3	660V	5.5/7.5	11	23	39/55	67	100	156	235	375
Power of controllable motor(KW)AC-4	380V	1.4/1.9	3.5/4	7.5	12/18	17/21	27/35	38/50	58/66	81
Power of controllable motor(KW)AC-4	660V	2.4/3.3	6/6.6	13	20.8/24	29.5/36	46.9/60	66/86	100/114	140
Frequency of operation(l/h)	AC3	1000	750	750	1200/1000	1000/850	1000/750	700/500	700/500	500/420
Frequency of operation(l/h)	AC4	250	250	250	400/300	300/250	300/200	200/130	200/130	150
Electrical endurance(×106)	AC3	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Electrical endurance(×106)	AC4	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Operating voltage range of coil		(0.8~1.1)Ue
Power consumption of coil	Atracting(VA)	10	10	12.1	17	32	39	58	84	115
Power consumption of coil	Starting(VA)	68	69	101	183	330	550	910	1430	2450
Rated insulation voltage of auxitiary contacts(V)		690	690	690	690	690	690	690	690	690
Conventional thermal current of auxitiary contacts(A)		10	10	10	10	10	10	10	10	10
Rated operating current of auxitiary contacts(A)	AC15380/220	6/10	6/10	4/6	4/6	4/6	4/6	4/6	4/6	4/6
Rated operating current of auxitiary contacts(A)	DC13220V	0.45	0.45	0.48	0.48	0.48	0.48	0.48	0.48	0.48
Rated voltage of the control coil(V)	50Hz	24,36,48,110,127,220,380,etc
Rated voltage of the control coil(V)	60Hz	24,110,220,440,etc.

Standard Control Circuit Voltage:

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz
