3tb 3TF Series 3p 4p Contactor

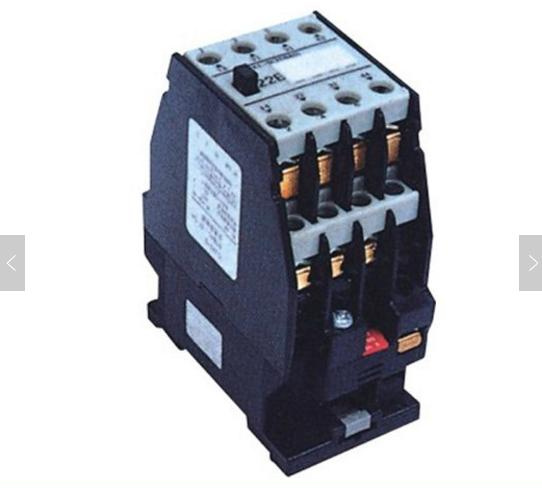

Name: 3tb 3TF Series 3p 4p Contactor
Brand: all-electronics-online.com
SKU: 827020505
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 3.65/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3TB 3TF

Product Description

Introduction

CJX1(3TB, 3TF) series AC Contactor is suitable for using in the circuits up to the rated voltage 690V AC50Hz or 60Hz, rated current up to 630A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, stardelta starter. With the thermal relay, it is combined into the electromagnetic starter.

The product is produced according toIEC60947-4 standard

Number of the Contactors: NO, NC 1NO+1NC 2NO+2NC 4NC+4NO

Packaging Details
50 pcs packed in a export carton,gross weight is 24kgs,carton dimension is 44*26*23 cm,a 20 ft container can load 1076 cartons.

Specification

Type	Rated Operating current		Power of controllable motor (kw)						Rated operation frequency		Rated thermal current (A)
	Rated Operating current		AC-3				AC-4		Rated operation frequency
	AC -3	AC -4	230/ 220v	400 /600v	500V	690/ 660v	400/ 380v	690/ 660v	AC-3	AC-4
JX1-9/Z	9	3.3	2.4	4	5.5	5.5	1.4	2.5	1200	300	20
JX1-12/Z	12	4.3	3.3	5.5	7.5	7.5	1.9	3.3	1200	300	20
JX1-16/Z	16	7.7	4	7.5	10	10	3.5	6	1200	300	30
JX1-22/Z	22	8.5	6.1	11	11	11	4	6.6	1200	300	30
JX1-32/Z	32	15.6	8.5	15	21	23	7.5	13	1200	300	45
JX1-45/Z	45	24	15	22	30	39	12.6/12	21.8/20.8	600	300	70
JX1-63/Z	63	28	18.5	30	41	55	14.7/14	25.4/24.3	600	300	70
JX1-75/Z	75	34	22	37	50	67	12.9/17	30.9/29.5	600	300	90
JX1-85/Z	85	42	26	45	59	67	22/21	38/36	600	300	90
JX1-110/Z	110	54	37	55	76	100	28.4/27	49/46.9	600	300	150
JX1-140/Z	140	48	43	75	98	100	36/25	63/60	600	300	150
JX1-170/Z	170	75	55	90	118	156	40/38	69/66	700	200	210
JX1-205/Z	205	96	64	110	145	156	52/50	90/86	500	130	210
JX1-250/Z	250	110	78	132	178	235	61/58	105/100	700	200	300
JX1-300/Z	300	125	93	160	210	235	69/66	119/114	500	130	300
JX1-400/Z	400	150	125	200	284	375	85/81	147/140	500	150	400
JX1-475/Z	475	165	148	252	342	432	110/102	197/190	500	150	400
JX1-620/Z	630	300	191	330	434	573	168/160	253/242	500	150	630

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
