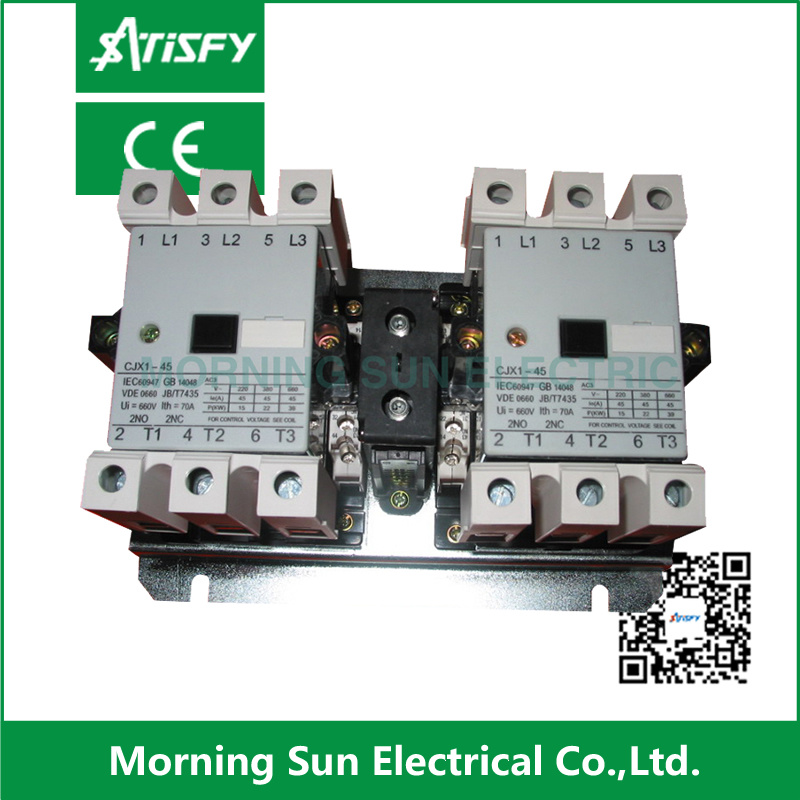

3td Mechanical Interlocking Contactor

Name: 3td Mechanical Interlocking Contactor
Brand: all-electronics-online.com
SKU: 640086155
Availability: InStock
Rating: 4.5 (111 reviews)

Price:	US $ 10.00/Piece
Trade Terms:	FOB,CIF,others
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3TD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
50% Silver Contain,85% Silver Contain:	Super Quality,Competitive Prices

Product Description

3TD Mechanical Interlocking Contactor is suitable for using in the circuits the rated voltage up to 660V AC50/60Hz, current 300A and for convertible controlling the motor. It is mechanical interlocking device which ensures contact changeover of the two convertible contacts.

Specifications

Type	Rated thermal current (A)	Rated operating current at AC 3 380V (A)Rated operating current at 660V (A)		The power of controlled motor (KW)		Type of auxiliary contact
				AC 3		AC 4
		380V	660V	380V	660V	380V	660V
3TD40	20	9	3.3	4	5.5	1.4	2.4
3TD41	20	12	4.3	5.5	7.5	1.9	3.3
3TD42	30	16	7.7	7.5	11	3.5	6
3TD43	30	22	8.5	11	11	4	6.6
3TD44	45	32	15.6	15	23	7.5	13
3TD45	45	38	18.5	18.5	23	9	15.5
3TD46	70	45	24	22	39	12	20.8
3TD47	70	63	28	30	55	14	24.3
3TD48	90	75	34	37	67	17	29.5
3TD49	90	85	42	45	67	21	36
3TD50	150	110	54	55	100	27	46.9
3TD51	150	140	68	75	100	35	60
3TD52	180	180	75	90	156	38	66
3TD53	220	205	96	110	156	50	86
3TD54	300	250	110	132	235	58	100
3TD55	300	300	125	160	235	66	114

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
