Yueqing Greenwich Imp & Exp Co., Ltd. >> 3TF Contactor Contactor, Electrical Contactor

3TF Contactor Contactor, Electrical Contactor

3TF Contactor Contactor, Electrical Contactor
Price: US $ 2.45-3.15/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 3TF
Frequency: 50/60Hz
Rated Operational Voltage: up to 380V
Standard: IEC60947, BS5424 & VDE0660

Product Description

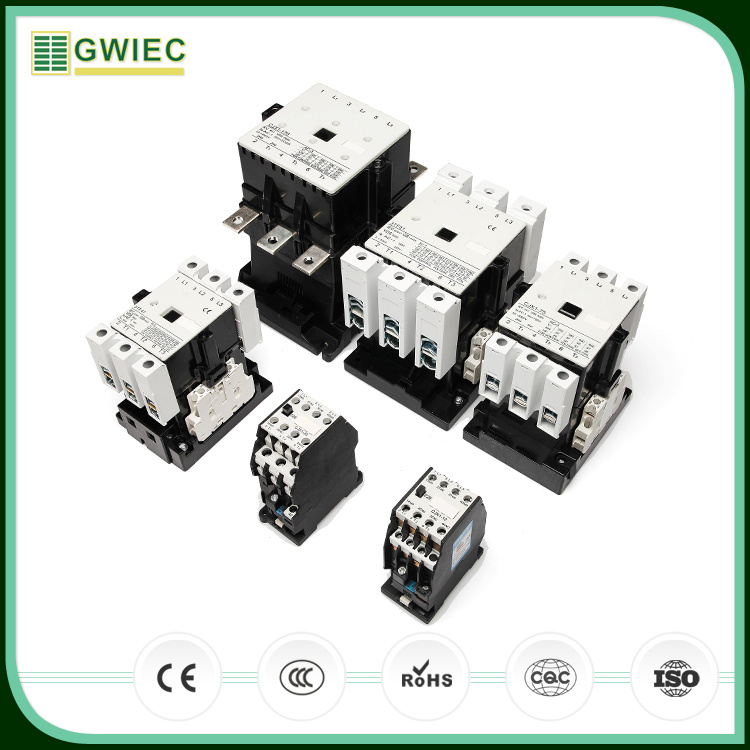

3TF series AC contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC 60947, BS 5424 & VDE 0660.

The contactor is a straight motion mechanism having double breaking contacts. The auxiliary contacts are arranged NO.2NC at most, it is employed the flexible locking connection between the contact support and core, three are no arcisolated panel in the Ie≤22A contactor. In the In≥32A contactors. Three are moulded arc-chute with arc-isolated panel, because all contacts are made of high cnonfusibility and against corrosion silver alloy. All series products can be mounted by screw, Ie≤32A contactor also by installation rail



Specification:
TypeRated thermal current(A)Rated operation current(A)Controllable power for motor(kw)Type of auxiliary contact
AC-3AC-4
380V660V380V660V380V660V
3TF40209745.51.42.4NO
NC
1NO+1NC
2NO+2NC
3TF4120128.55.57.51.936.3
3TF42301612.57.5113.56
3TF43302216.5101546.6
3TF4455322415227.513
3TF4555862418.522915.5
3TF4680454022371220.8
3TF4780636030551424.32NO+2NC

4NO+4NC
3TF48100756037551729.5
3TF4910085804575213.6
3TF501601109555902746.9
3TF51160140120751103560
3TF52200170160901503866
3TF532102051651101605086
3TF5430025023013222058100
3TF5530030026016025066114
3TF5640040038020033581140
3TF58630630600335500160278






Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
