Product Description

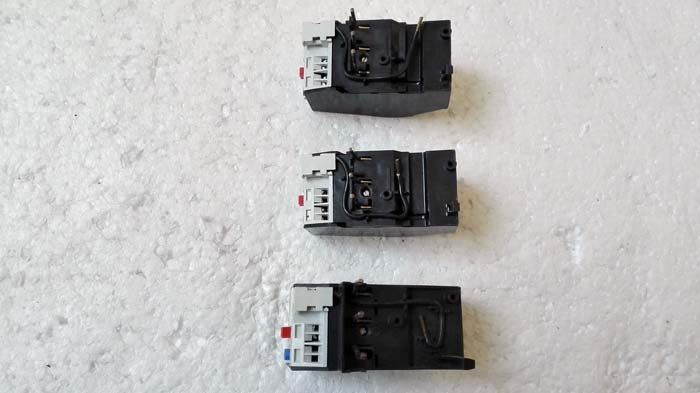

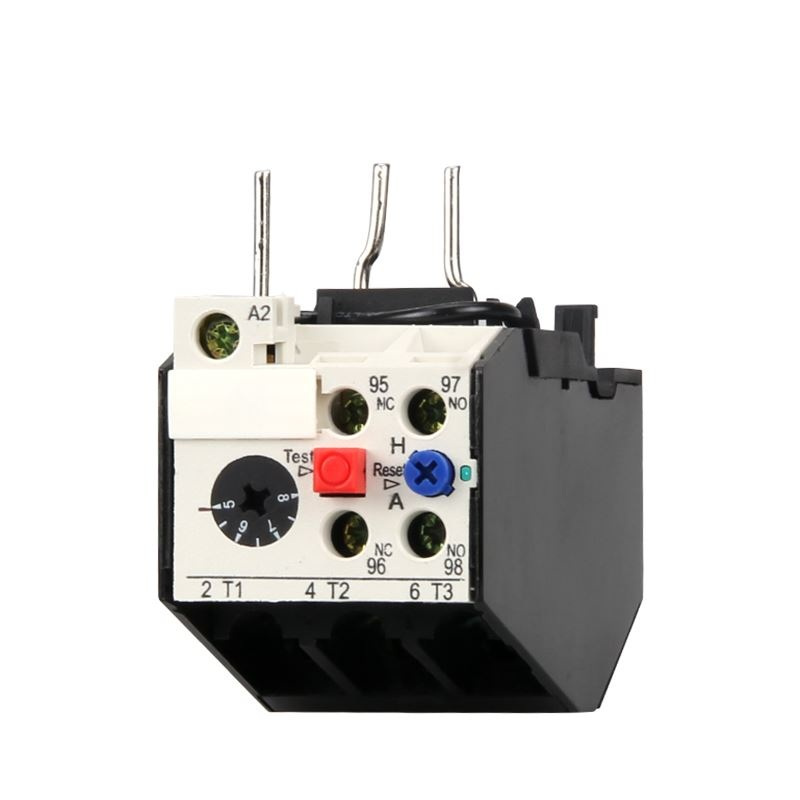

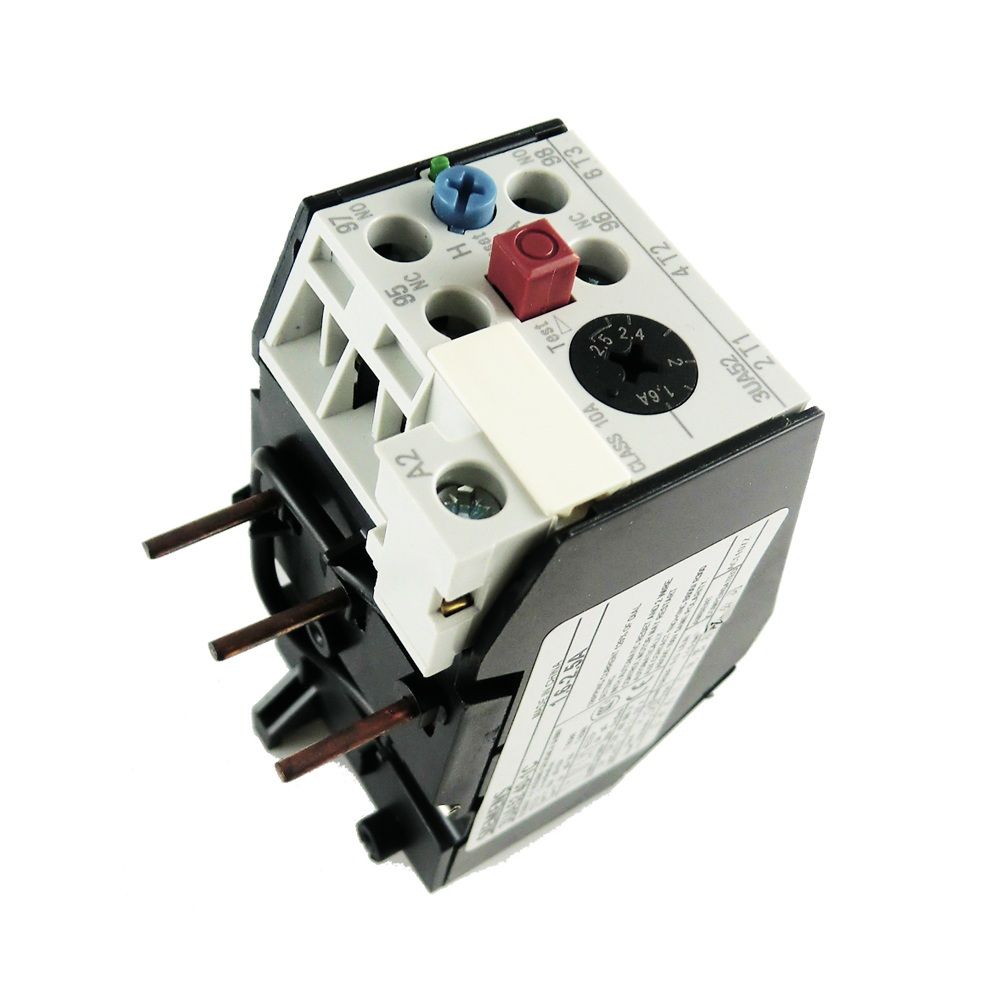

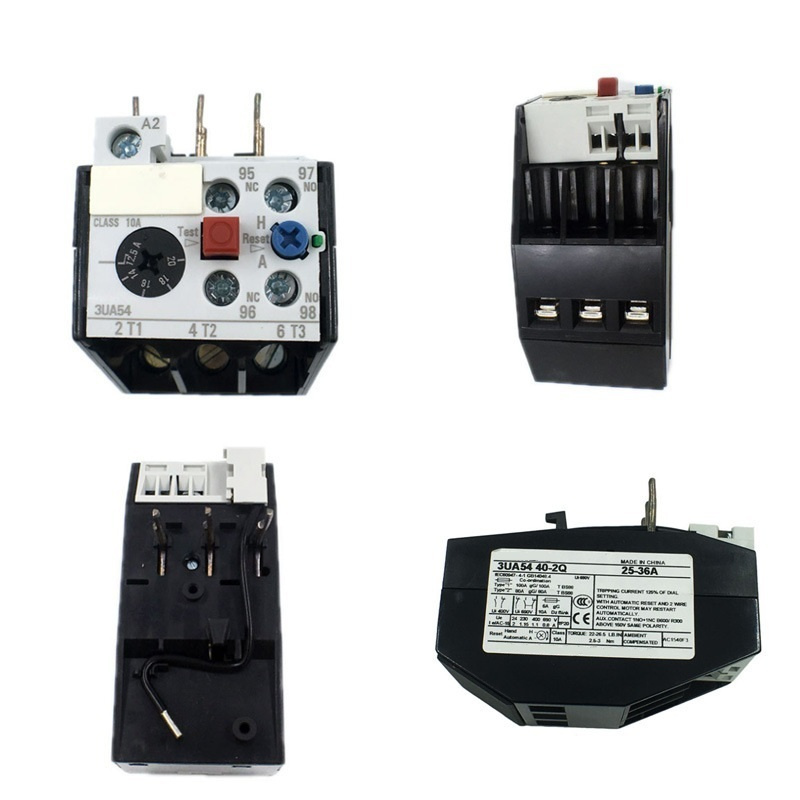

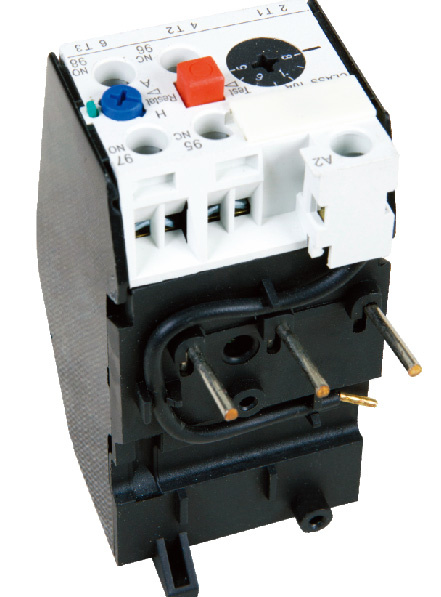

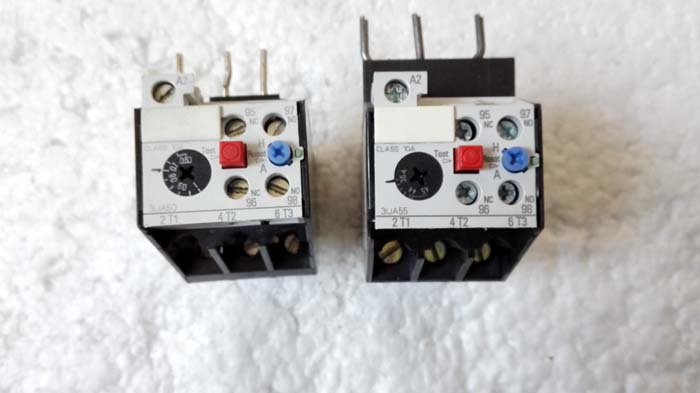

To Supply 12.5A 25A 3UA50 3UA52 Electromagnetic Thermal Overload Relay 0.1A~12.5A 0.1A~25A
Application
3UA series thermal overload relay is suitable for using in power system with AC 50/60Hz, rated operation voltage up to 660V and 1000V, current from 0.1A to 630A. It is used to protect AC three-phase asynchronous motor against overload and open-phase.
The current setting value can be regulated and the setting current values of many thermal elements are intercrossing overlapping arrangement, for easy selecting by the customers from -25°Cto +55°C air temperature as the products have temperature compensating. The relays have the test push-button for breaking NC contacts, the operating indication and free trip characteristics. The items conform to IEC60947-5.
Characteristic
Three-phase thermal relays with release class 10A.
With differential phase-failure protection.
With continuous current adjusting scale.
With temperature compensation.
With ON/OFF indicator.
With Manual/Auto reset button.
With Auxiliary contacts 1 NO+1 NC insulated each other.
Mounting: Plug in connection with contactor or install as a single unit.
The altitude couldn't exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.
Specification
Type | Rated Operating Current (A) | Rated Insulation Voltage (V) | Current Setting Range (A) |
3UA50 | 12.5 | 600 | 0.1-0.16, 0.16-0.25, 0.25-0.4, 0.32-0.63, 0.63-1.0, 0.8-1.25, 1-1.6, 1.25-2.1, 1.6-2.5, 2-3.2, 2.5-4, 3.2-5, 4-6.3, 5-8, 6.3-10, 8-12.5 |
3UA52 | 25 | 600 | 0.1-0.16, 0.16-0.25, 0.25-0.4, 0.4-0.63, 0.63-1, 0.8-1.25, 1-1.6, 1.25-2.1, 1.6-2.5, 2-3.2, 2.5-4, 3.2-5, 4-6.3, 5-8, 6.3-10, 8-12.5, 10-16, 12.5-20, 16-25 |
3UA54 | 32 | 660 | 4-6.3, 6.3-10, 10-16, 12.5-20, 16-25, 20-32 |
3UA58 | 80 | 1000 | 16-25, 20-32, 25-40, 32-50, 40-57, 50-63, 57-70, 63-80 |
3UA59 | 63 | 600 | 0.1-0.16, 0.16-0.25, 0.25-0.4, 0.4-0.63, 0.63-1, 0.8-1.25, 1-1.6, 1.25-2, 1.6-2.5, 2-3.2, 2.5-4, 3.2-5, 4-6.3, 5-8, 6.3-10, 8-12.5, 10-16, 12.5-20, 16-25, 20-32, 25-40, 32-45, 40-57, 50-63 |
3UA62 | 180 | 660 | 55-80, 63-90, 80-110, 90-120, 110-135, 120-150, 135-160, 150-180 |
3UA66 | 400 | 1000 | 80-125, 125-200, 180-250, 200-320, 250-400 |
3UA68 | 630 | 1000 | 320-500, 400-630 |
