3V 13mm Mini Electrical Motor DC Gear Motor for Robots

Name: 3V 13mm Mini Electrical Motor DC Gear Motor for Robots
Brand: all-electronics-online.com
SKU: 822158025
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 3.225-4.204/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR-13SS050
Usage:	Surveillance Cameras
Application:	Lock
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Certification:	Ce,RoHS
Brand:	Mipre

Product Description

SPECIFICATION

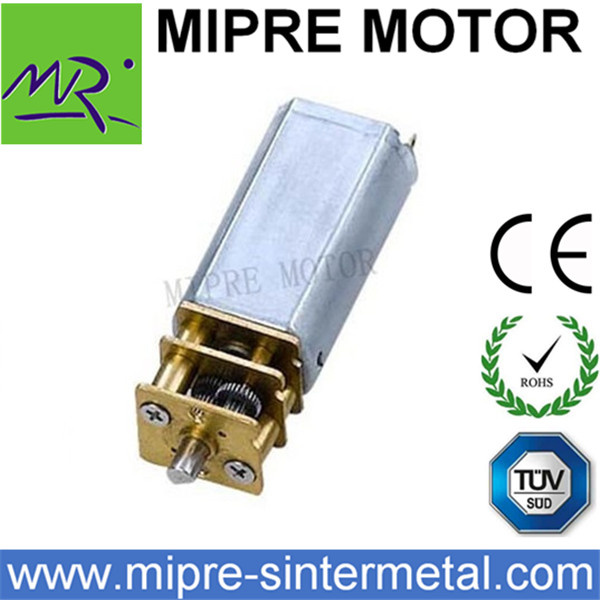

			Dia 13mm DC Geared Motor
			Model No.: MR-13SS050
			1. Typical Applications:
			Coffee Machine Cordless Drill
			Robot Electric Lock
			Video/Camera
Weight: 21g(approx.)

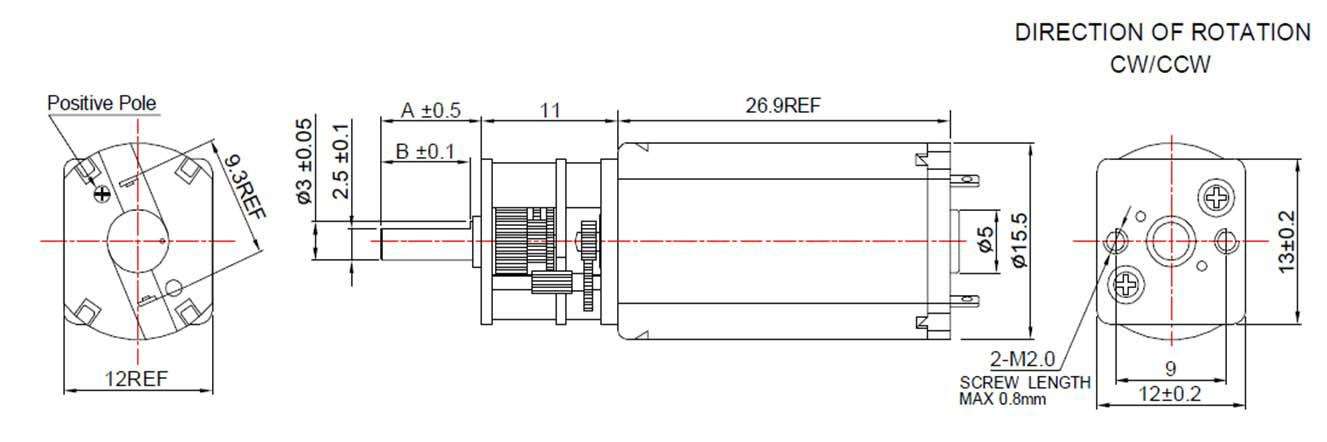

2. Dimensions(mm)

Customization:
-Length A, B
-Technical Data
-Shaft Shape

Gearbox length L(mm)	General reduction ratios
11	1/3			1/10			1/17		1/20		1/30		1/35		1/50
	1/63			1/86			1/115		1/150		1/250		1/360
3. Technical data
Model No.		Voltage				No load				On load						Stall
		Operating range(V)			Nominal	Current		Speed		Current	Speed	Torque		Output		Torque	Current
					V	A		r/min		A	r/min	kgf.cm		W		kgf.cm	A
MR-13SS050-05354		3.0-6.0			5.0	0.11		354		0.45	283	0.31		0.90		1.53	1.74
MR-13SS050-05145		3.0-6.0			5.0	0.10		145		0.38	118	0.66		0.80		3.60	1.69
MR-13SS050-06416		3.0-6.0			6.0	0.44		416		1.43	305	0.78		2.44		2.91	4.16
MR-13SS050-1255		6.0-12.0			12.0	0.06		55		0.40	31	2.49		0.56		5.54	0.75
MR-13SS050-12425		6.0-12.0			12.0	0.03		425		0.13	364	0.20		0.73		1.37	0.74
MR-13SS050-12250		6.0-12.0			12.0	0.05		250		0.28	205	0.75		1.57		4.10	1.29
MR-13SS050-1226		6.0-12.0			12.0	0.02		25.8		0.08	19.5	1.36		0.27		5.57	0.24
MR-13SS050-12462		6.0-12.0			12.0	0.06		462		0.29	371	0.40		1.54		2.03	1.22

Remarks

Customized electric performance on request by using suitable dc motor windings and ratio.
Available with required shaft length, D-shape size and length, grease type etc.

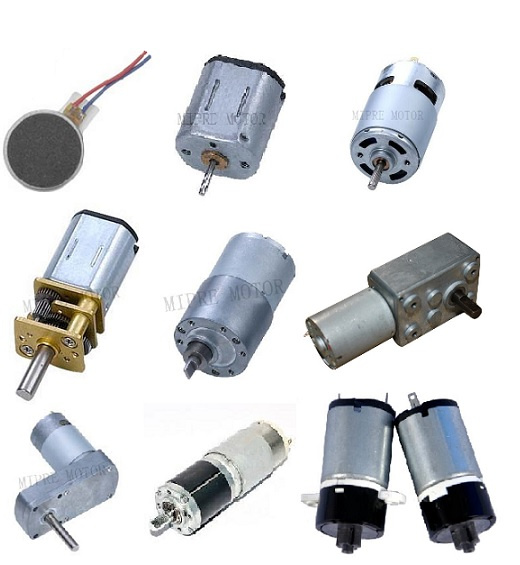

Related motors

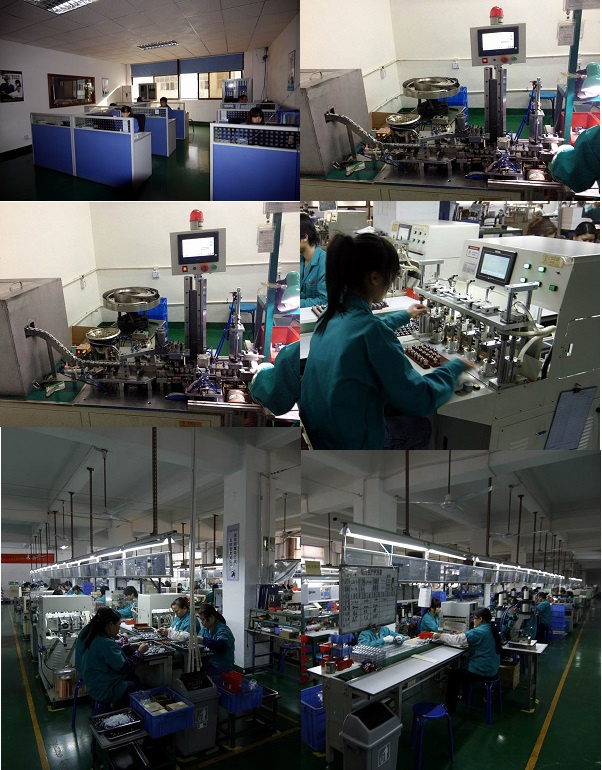

Our company:
