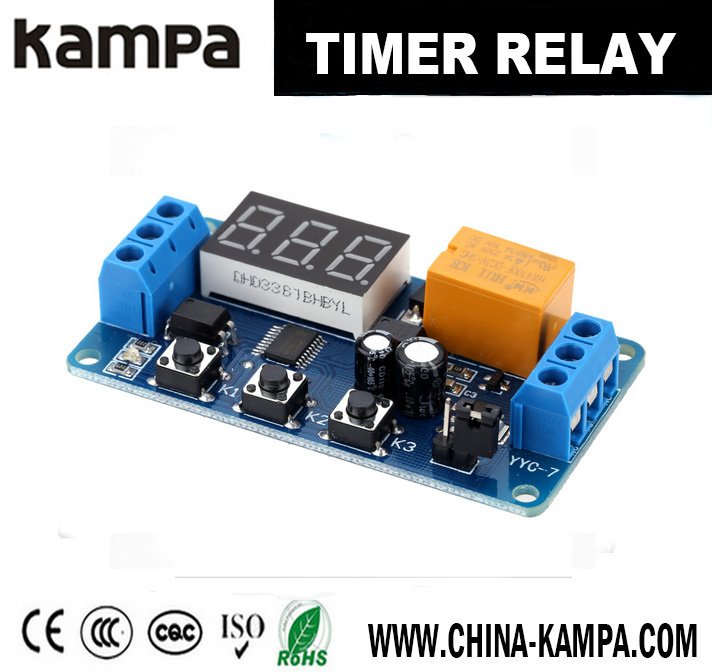

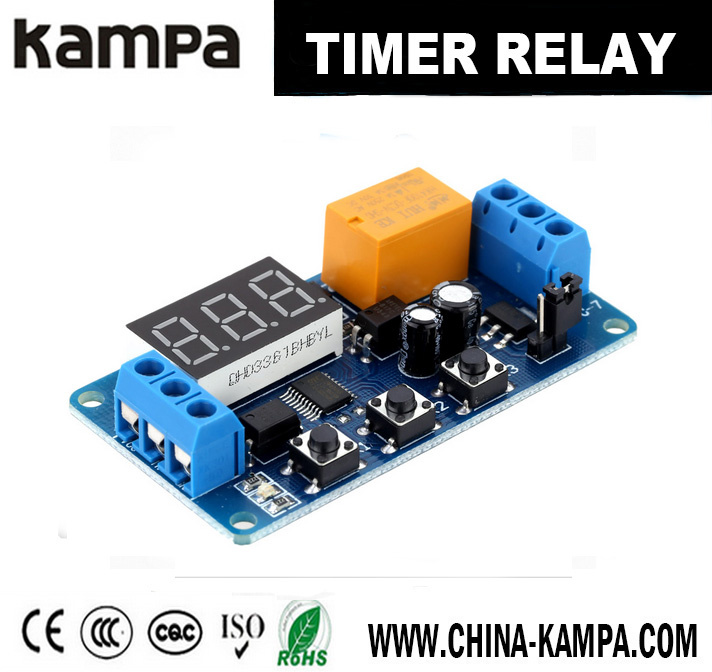

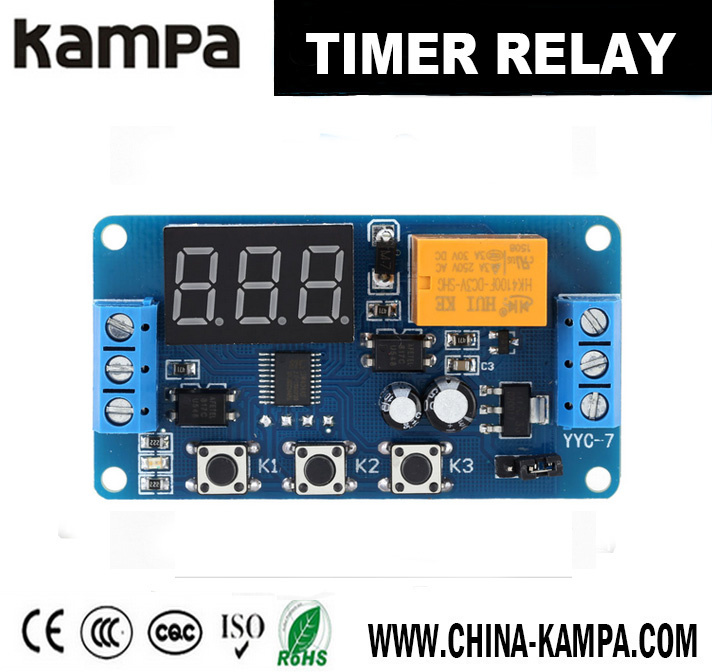

3V/3.7V/4.5V/5V/6V High Performance Automation Control LED Display Digital Delay Timer Relay Switch Module

Name: 3V/3.7V/4.5V/5V/6V High Performance Automation Control LED Display Digital Delay Timer Relay Switch Module
Brand: all-electronics-online.com
SKU: 817496085
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 3.38/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KP-3
Dimension:	64 * 38 * 18mm / 2.52 * 1.5 * 0.7in (L * W * H)
Timing Range(Settable):	0.1s to 999 Minutes
Signal Source:	DC 3-12V
Output Capacity:	Can Control The Load Within DC 30V 3A or AC 220V 3
Static Current:	15mA
Working Current:	30mA
Working Temperature:	-40-85°c

Product Description

Feature:
Low voltage for power supply,the lowest is 3V,convenient for use.
Can be powered by 3,7V lithium battery,5V power bank,switch power,transformer ect.
Asjustable delay time range :0.1s to 999 minute
The users of opto isolated input and output,enchanced anti-jamming capability and consumption
The setting parameters can be memorized after power off.
To ensure stability,industrial grade PCB board.
Applied to control motor,bulb,LED light string,mini pump,ect
Notice:
Relay output is passive contact without charge output,and it control the on and off the line,
Working modes selection,after power on,long press K1 and 2s,later into the selection of modes:
P-1:A signal to trigger relay,time is up,the relay disconnect.
P-2:A signal trigger and countdwon begins,T1 seconds after,the relay closes T2 seconds,then opens.
P-3:Connect T1 seconds,disconnect T2 seconds,infinite loop.users can sets the relay time T2 and T2.
P-4:The relay closes when a signal triggers,when the trigger signal disappears,digital countdown begins,and the relay opens when the time is up.
Specification:
DIsplay:LED digital display.
Timing Range(Adjustable):0.1s to 999 minutes
Working voltage:DC3-7V(with mini jumper:3.5-5V.without mini jumper:3.8-7V
Signal source:DC3-12V
Output capacity:can control the load within DC30V 3A or AC 220V 3A
Static current:15mA
Working current:30mA
Working temperature:-40ºC~85ºC
PCB size:64*35*15 mm/2.52*1.4*0 in (L*W*H)
