| Prod Model: |
JRE-140RA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Torque: |
<20g.Cm |
| Continuous Current(a): |
Constant |
| Output Power: |
0.2W-10W |
| Voltage(V): |
1.2-24V |
| Product Name: |

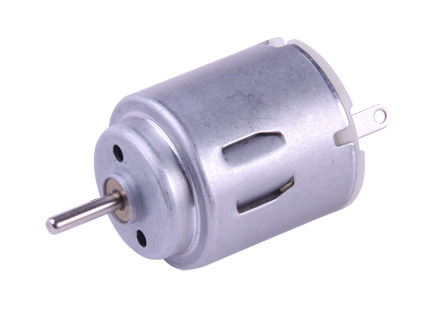

Pm DC Motor |
| Keywords: |
3V DC Motor |
| Rated Voltage: |
1.2VDC-24VDC |
| Motor Type: |
DC Brush Motor |
| Brush: |
Metal /Carbon Brush |
| Size: |
21*25(mm) |
| Structure And Working Principle: |
Brush |
| Application: |
Motorized Toy Motorized Plastic Model |
| Operating Speed: |
2000-20000rpm |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Totally Enclosed |
| Number Of Poles: |
Ie 1 |
| Type: |
Micro Motor |
| Certification: |
Ce,RoHS ISO9001:2000 |
| Brand: |
Kingly |
Product Description
Packaging & DeliveryPackaging Details 1.Export standerd carton/foam.
2.Customized packing condition per your requirements
Delivery Time:5-7 days for samples; 18-25 days for productionA. 3v dc micro vibration motor,
B.micro vibrator motor waterproof,
C.6v dc motor waterproof(JRE-140RA)

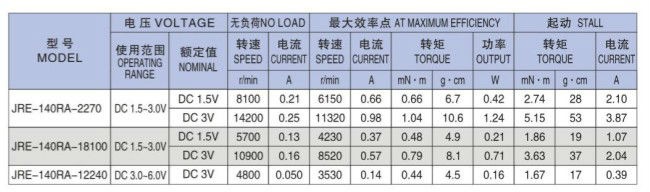

1.Low noise high speed long-life
2.Motor Voltage:1.5v-6v3.The shaft:dia 2.0mm
4. Motor Diameter:21mm length:25mm It is a round
5.Output power:approx 0.2W~3.0W
6.Certification:CE,ROHS ISO9001:2000
7. Metal-brush motors
8.The motor weight:19g(Approx)
9.Motor direction of rotation :CW &CCW
10.1.5v-6v mini dc Motor Typical Applications:toys and models motorized toy motorized plastic model
11.Motors specefication and shaft length can be tailor-made according to customer's requirements

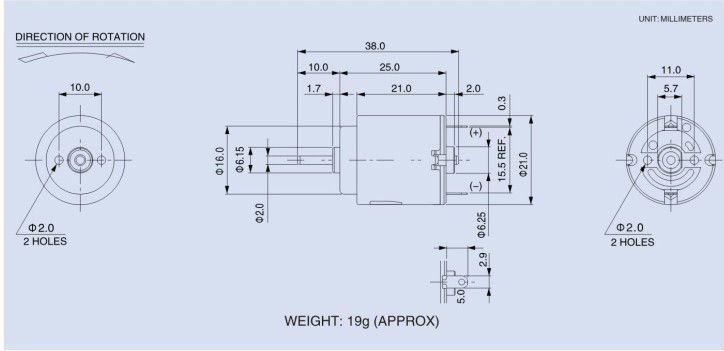

Dimensionents.
