| Prod Model: |
JL-27A370 |
| Voltage: |
DC 1.2V-24V |
| Speed: |
Constant Speed |
| Od Gearbox: |
27mm |
| Brush: |
Metal Brush |
| Power: |
DC |
| Shaft: |
O ,D-Cut |
| Torque: |
High Torque |
| Material: |
RoHS Material |
| Micro: |
12V/24V Gear Motor |
| Gear: |
Metai/Plastic /Copper Gears |
| Application: |
Toy,Robots ,Lock etc.. |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Number Of Poles: |
1 |
| Certification: |
Ce ,RoHS |
| Brand: |
Kingly |
Product Description
Product Description:

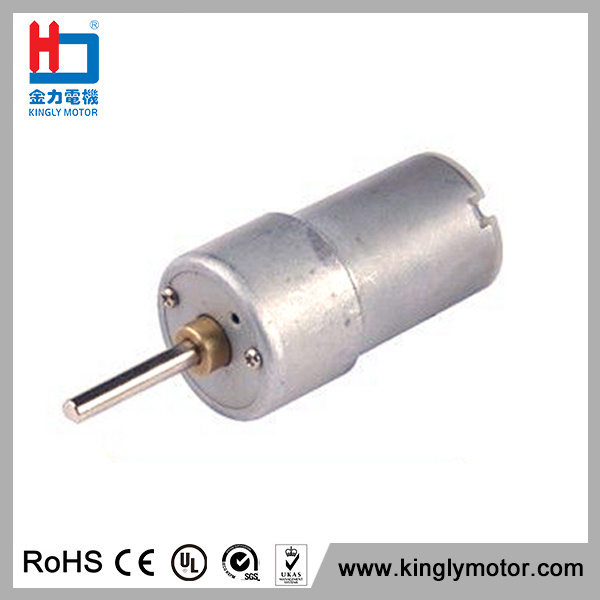

JL-27A310/370/280 1.2V-24V 27mm geared dc motor

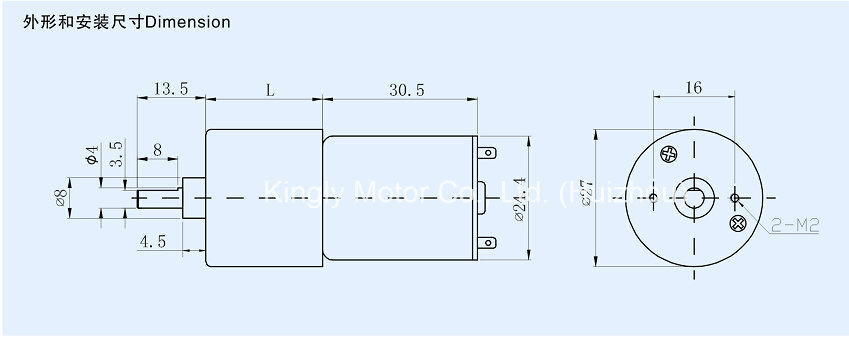

1) Gear Motor Diameter: 25mm
2) Matching DC Motors: JRF-310 Length:18mm, JRF-370 Length 30.8mm RF-280 Length 30.5mm
3) Shaft diameter: Round 4mm, D cut 3.5mm
4) Motor shaft can be changed, such as round or D cut, length, matched gear.
5) Motor Voltage: 1.2 to 24V DC
6) DC motor speed can be changed.
7) Gearbox raitos:18:1 TO 233:1
8) Reducer torque less than 10kg.cm
9) Geared Motor Applications: Induction stopcock,strongbox.automatic valve
10) We can also design the motor according to client's requirement such as Voltage, Speed and the length of shaft.
11)With CE ,ROSH ,ISO9001:2000

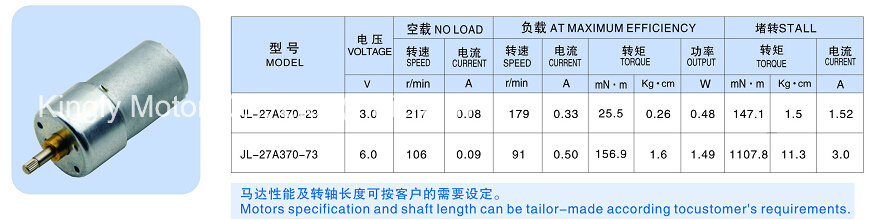

| Model | Voltage | No L oad | At Maximum Efficiency | Stall |
| V | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| r/min | A | r/min | A | mN.m | kg.cm | W | mN.m | kg.cm | A |
| JL-27A370-23 | 3.0 | 217 | 0.08 | 179 | 0.33 | 25.5 | 0.26 | 0.48 | 147.1 | 1.5 | 1.52 |
| JL-27A370-73 | 6.0 | 106 | 0.09 | 91 | 0.50 | 156.9 | 1.6 | 1.49 | 1107.8 | 11.3 | 3.0 |
| | | | | | | | | | | | |
| Length of GearL | Reduction Ratio | | | | | | | | |
| 14.4mm | 18 | 23 | | | | | | | | | |
| 16.2mm | 44 | 73 | | | | | | | | | |
| 18mm | 111 | 233 | | | | | | | | | |
Packing & Shipping:
1).Packaging Detail: Polyfoam or carton seperator inside, strong export carton box outside
2).Delivery Detail: Within 30 days for first order, 15-25 days for repeat order
