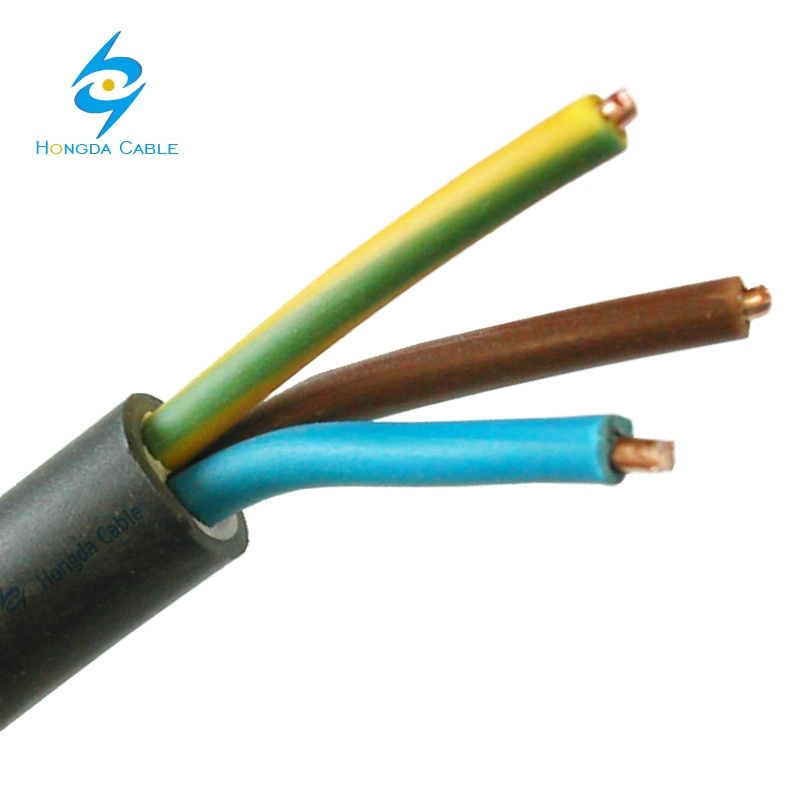

3X1.5mm2 450/750V Installation Power Cable Cyky
| Price: |
US $ 0.2-76.8/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
cable CYKY |
| Rated Voltage: |
450/750V |
| Application: |
Power and Control Cable |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
SGS |
| Model: |
Cyky Cable |
| Brand: |
Hongda |
Product Description
Power cable CYKY-J 3x1.5mm2 450/750V -15..70°C, black
PVC insulated and PVC sheathed power and control cable
Power cable CYKY-J Application:
For fixed installation in interior premises, cable ducts, in the open air, in water - as permitted by the local building regulations - if no risk of any mechanical damage is to be expected.
Standard length cable packing:
500 or 1000m on drums. Other forms of packing and delivery are available on request
VOLTAGE
450/750 V | Construction: | |
| Conductors: | annealed copper solid class 1(RE) acc. to EN 60228 |
| Insulation: | special PVC compound |
| Inner covering: | non-vulcanized rubber |
| Sheath: | special PVC compound |
| Characteristic: | |
| Colour of sheath: | black, UV resistant |
| Core identification: | 2-core:
3-core: green-yellow, blue, brown
4-core: green-yellow, brown, black, grey
5-core: green-yellow, blue, brown, black, grey
7 and more: green-yellow, other cores black
with white numbering |
| Maximum conductor operating temperature: | +70°C |
| Working temperature: | -15°C to + 70°C |
| Lowest installation temperature: | -5°C |
| Maximum short-circuit conductor temperature: | +160°C |
| Minimum bending radius: | 10 x D, D - overall diameter |
| Dielectric test voltage 50Hz: | 2,5kV |
Assembly:
Single conductor of stranded or solid annealed copper, PVC Insulation and PVC Jacket, several colors are available, surface printed. Power cable CYKY-J Specification:Number and cross-sectional
area of conductor
n x mm2: | Approximate overall
diameter
mm: | Approximate net
weight of cables
kg/km: | Maximum conductor
resistance at
temperature 20°C
Ω/km: |
CYKY-J-3x1.5
CYKY-J-3x2.5
CYKY-J-4x1.5
CYKY-J-4x2.5
CYKY-J-5x1.5
CYKY-J-5x2.5
CYKY-J-4x4
CYKY-J-5x4
CYKY-J-5x6
CYKY-J-5x10
CYKY-J-5x16 | 7,6
8,5
8,3
9,2
9,1
10,1
11,7
12,8
14,5
17,0
19,4 | 106
144
129
176
157
215
281
345
471
712
1030 | 12,1
7,41
12,1
7,41
12,1
7,41
4,61
4,61
3,08
1,83
1,15 |

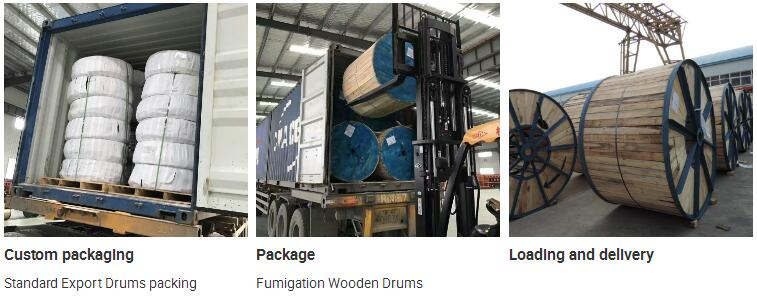

Power cable CYKY-J PACKAGE:A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
