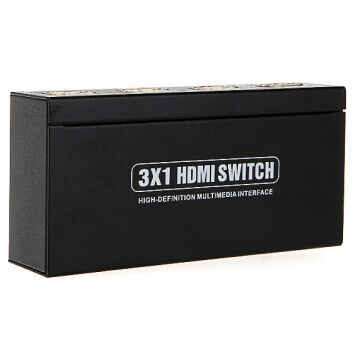

3X1 HDMI Switcher (HDMI V1.3 Switcher, 1080P)

Name: 3X1 HDMI Switcher (HDMI V1.3 Switcher, 1080P)
Brand: all-electronics-online.com
SKU: 737745525
Availability: InStock
Rating: 4.3 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL0301S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
HDMI Version:	HDMI 1.3
HDMI Resolution:	24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Support Video Color Format:	24bit/Deep Color 30bit, 36bit
Max Bandwidth:	250MHz
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink. The Switcher allows three HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
1. Three HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices
2. HDCP 1.2 protocol compliant
3. Support deep color 30bit, 36bit
4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
5. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
6. Support signal retiming
7. Inputs can be controlled by button.
8. It can smartly jump over those input sources which are not connected.
9. With the smart function of memory, it can come back to the latest status when restarted or
Reconnected.
10. No loss of quality
11. Installs in minutes

CONNECTING AND OPERATING
1. Connect one cable from each HDMI source devices into HDMI Switcher inputs.
2. Connect one cable from display (monitor or projector) into the HDMI Switcher outputs.
3. Connect 5V power supply to the HDMI 3x1 Switcher.
4. Use the RMT-IR remote control port to remotely switch or use button to switch between sources.

HDMI version...HDMI 1.3
HDCP version...HDCP1.2
HDMI resolution...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format...24bit/deep color 30bit, 36bit
Support audio format...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth...250MHz
Max baud rate...7.5Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...5Volts p-p (TTL)
Max working current...350mA
Power adapter format...Input: ...AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range...(-15 to +55 degree)
Operating Humidity range...5 to 90%RH (No Condensation)
