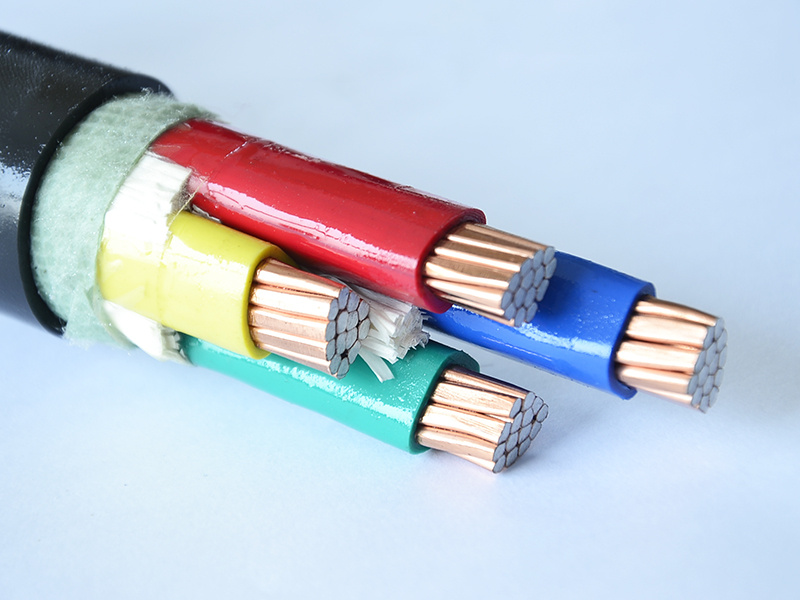

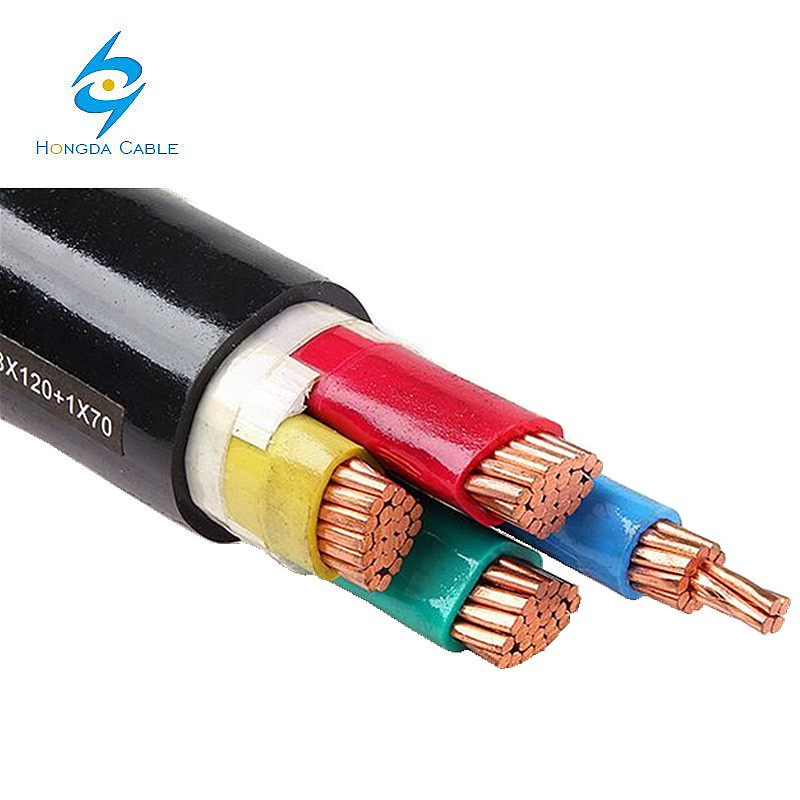

3X120 + 1X70 Sqmm XLPE Insulated Copper Wire Power Cable
| Price: |
US $ 3.5-25.9/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
3x120 + 1x70 sqmm XLPE Insulated Copper Wire Power |
| Product Name: |
Low Voltage XLPE 4 Core Power Cable 4mm2 6mm2 25mm |
| Conductor: |
99.99% Copper |
| Packaging: |
Wooden Drum |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Model: |
Low Voltage XLPE Power Cable |
| Brand: |
OEM |
Product Description
1.Brief Introduction :
cable is Cu conductor XLPE insulated PVC sheath Electric power cable for laying buildings,inducts , kin tunnels,direct in ground and under water,.
For laying indoors , in tunnels, in ducts. Able to bear extermal mechanical force but not large pulling forces. Single core cables are impermissible to be laid in magnetic ducts.
2.Operating characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 90
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter

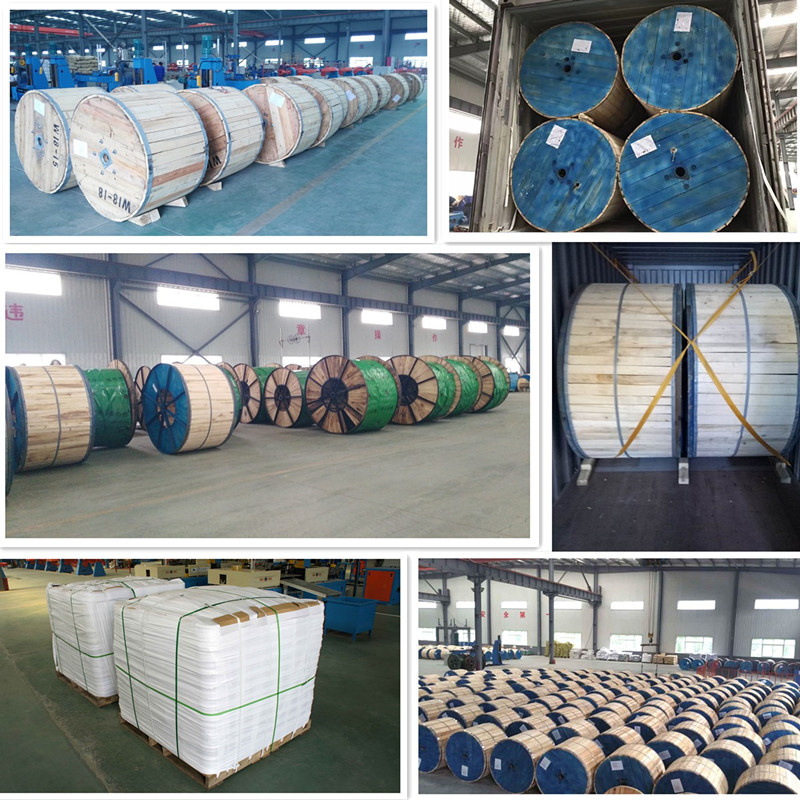

Packing shipping
Why Choose Us ?
Quality And Safety
- Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.
- Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
- With knowledgable engineers, rigorous quality standards and customer-centered core values, we are always ready to provide the best available products and services.
- For customers inquiring about our services, we offer product testing and sample analysis against international standards--free of charge.
Complete Inventory And Fast Delivery
- Our integrated manufacturing and storage facilities enable us to offer flexibility in specifications and fast turnaround time.
- Providing outstanding service level, Hongda Cable will meet your requirements for both standard products from our catalog and custom solutions.
Customized Solutions And Tailored Services
- With 17 years of experience, we are proud of our industry-leading R&D center and able to meet our customers' needs.
- Hongda Cable specializes in the design, manufacturing, and distribution of special industrial cable products. We welcome any ODM inquiries.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
