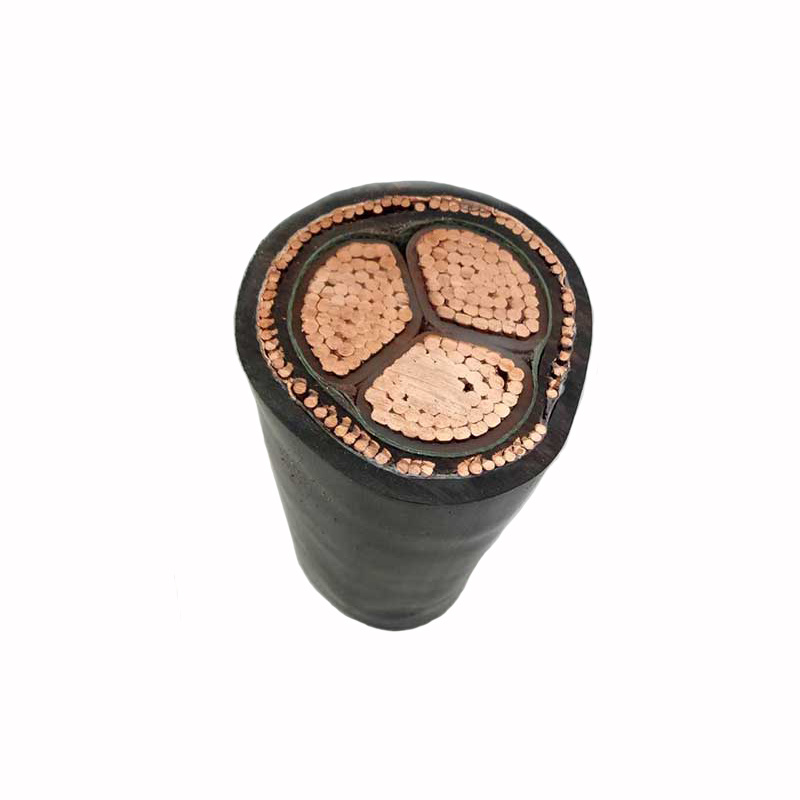

3X300mm2 XLPE Power Cable with Copper Wire Armoured Cable

Name: 3X300mm2 XLPE Power Cable with Copper Wire Armoured Cable
Brand: all-electronics-online.com
SKU: 797948535
Availability: InStock
Rating: 4.8 (146 reviews)

Price:	US $ 9.8-10.8/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3x300mm2, 3x400mm2
Certificate:	Ce,ISO 9001
Standard Used:	IEC 60502-2
Conductor Type:	Circular Compacted or Sectoral Compacted
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CE
Brand:	Jytop

Product Description

0.6/1kV 3x300mm2 Circular Compacted or Sectoral Compacted xlpe power cable with Copper wire armoured cable

Standard:
IEC,BS,VDE,AS/NZS,ICEA,JIS and so on;Only the halogen free cables shall be generally produced complied with IEC61034 and 60754.

(1)0.6/ 1kV ,Three Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight
			Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	10.7	13.5	15.2	130	253	355	-	-	-
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.7	14.5	16.2	173	308	420	-	-	-
4	2.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.9	15.7	17.4	227	374	500	-	-	-
6	3.1	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	14.1	16.9	18.6	297	458	596	-	-	-
10	3.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.7	18.4	21.1	413	591	886	236	414	709
16	4.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	17.9	20.7	23.3	609	811	1142	314	517	847
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.5	24.3	27.6	903	1145	1691	451	694	1240
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	23.9	26.7	30.0	1187	1456	2068	550	814	1413
50	8.4	1.0	1.2	1.0	0.2	1.6	1.7	1.6	1.8	27.3	30.2	33.6	1563	1881	2571	712	1025	1701
70	10.0	1.1	1.2	1.2	0.2	2.0	1.8	1.7	1.9	26.4	29.4	33.9	2097	2403	3321	849	1133	1981
95	11.7	1.1	1.2	1.2	0.5	2.0	1.9	2.0	2.2	29.8	34.6	37.6	2834	3517	4238	1111	1751	2420
120	13.3	1.2	1.3	1.4	0.5	2.5	2.0	2.0	2.3	33.2	38.2	42.4	3560	4332	5510	1377	2105	3226
150	14.5	1.4	1.3	1.4	0.5	2.5	2.2	2.0	2.4	37.9	42.5	46.9	4406	5247	6577	1693	2492	3762
185	16.4	1.6	1.4	1.4	0.5	2.5	2.3	2.2	2.5	42.9	47.8	52.1	5491	6476	7960	2109	3050	4473
240	18.7	1.7	1.5	1.5	0.5	2.5	2.4	2.4	2.6	48.0	53.1	57.4	7144	8261	9914	2707	3779	5368
300	20.4	1.8	1.5	1.5	0.5	2.5	2.6	2.5	2.8	52.5	57.5	61.8	8903	10119	11914	3337	4508	6235

1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(2)0.6/ 1kV ,3C+E Cores,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+E Cores,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+E Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Cross Section of Earth Conductor	Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
				Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
				STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
mm2	mm	mm	mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
1.5	1.6	0.7	1.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.5	14.3	16.0	156	288	398	-	-	-
2.5	2.0	0.7	2.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.7	15.4	17.2	211	355	478	-	-	-
4	2.6	0.7	4	1.2	1.0	0.2	1.25	1.7	1.5	1.7	13.9	16.7	19.3	279	438	704	-	-	-
6	3.1	0.7	6	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.4	18.1	20.8	370	544	831	-	-	-
10	3.8	0.7	10	1.2	1.0	0.2	1.25	1.7	1.5	1.7	17.1	19.8	22.5	527	720	1036	286	479	795
16	4.8	0.7	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	19.5	22.3	25.6	778	999	1509	386	607	1116
25	6.0	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	22.6	25.4	28.7	1064	1318	1890	514	769	1340
35	7.1	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	24.6	27.4	30.7	1340	1617	2241	610	883	1509
50	8.4	1.0	25	1.2	1.0	0.2	1.6	1.7	1.6	1.8	28.4	31.4	34.7	1808	2139	2870	807	1134	1851
70	10.0	1.1	35	1.2	1.2	0.2	2.0	1.8	1.7	2.0	29.7	32.6	37.3	2446	2789	3831	988	1309	2280
95	11.7	1.1	50	1.2	1.2	0.5	2.0	2.0	1.9	2.1	33.7	38.1	41.1	3313	4049	4865	1307	2000	2764
120	13.3	1.2	70	1.3	1.2	0.5	2.0	2.1	2.0	2.3	36.3	40.9	43.9	4223	5033	5913	1631	2396	3223
150	14.5	1.4	70	1.3	1.4	0.5	2.5	2.2	2.1	2.4	41.3	46.0	50.2	5061	5993	7415	1940	2826	4190
185	16.4	1.6	95	1.4	1.4	0.5	2.5	2.4	2.2	2.5	46.6	51.4	55.6	6400	7446	9076	2453	3454	4983
240	18.7	1.7	120	1.5	1.5	0.5	2.5	2.5	2.4	2.7	52.4	57.3	61.8	8291	9484	11337	3137	4284	6032
300	20.4	1.8	150	1.5	1.5	0.5	2.5	2.7	2.6	2.8	58.0	63.0	67.1	10322	11659	13632	3864	5155	7058

1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(3)0.6/ 1kV ,Four Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
			Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	11.5	14.3	16.0	156	288	398	-	-	-
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.7	15.4	17.2	211	355	478	-	-	-
4	2.6	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	13.9	16.7	19.3	279	438	704	-	-	-
6	3.1	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.4	18.1	20.8	370	544	831	-	-	-
10	3.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	17.1	19.8	22.5	527	720	1036	286	479	795
16	4.8	0.7	1.2	1.0	0.2	1.6	1.7	1.5	1.7	19.5	22.3	25.6	778	999	1509	386	607	1116
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	23.6	26.4	29.7	1161	1427	2025	559	825	1423
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.8	26.3	29.1	32.6	1533	1828	2519	690	981	1658
50	8.4	1.0	1.2	1.0	0.2	2.0	1.7	1.6	1.9	30.1	33.0	37.3	2029	2379	3410	890	1235	2243
70	10.0	1.1	1.2	1.2	0.5	2.0	1.8	1.7	2.1	30.7	35.2	38.5	2764	3443	4222	1104	1739	2467
95	11.7	1.1	1.2	1.2	0.5	2.0	1.9	2.0	2.2	35.3	40.1	43.1	3746	4551	5417	1454	2212	3026
120	13.3	1.2	1.3	1.4	0.5	2.5	2.0	2.0	2.4	38.0	43.0	47.4	4697	5578	6942	1790	2624	3890
150	14.5	1.4	1.3	1.4	0.5	2.5	2.2	2.0	2.4	43.8	48.4	52.9	5816	6785	8368	2203	3126	4609
185	16.4	1.6	1.4	1.4	0.5	2.5	2.3	2.2	2.6	48.2	53.1	57.5	7239	8342	10050	2734	3791	5395
240	18.7	1.7	1.5	1.5	0.5	2.5	2.4	2.4	2.8	53.9	59.0	63.6	9424	10676	12612	3514	4718	6545
300	20.4	1.8	1.5	1.5	0.5	2.5	2.5	2.5	3.0	61.5	66.6	71.2	11782	13205	15361	4366	5742	7824

1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(4)0.6/ 1kV ,4C+E Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4C+E Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4C+E Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Cross Section of Earth Conductor	Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
				Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
				STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.3	15.1	16.8	182	324	444	-	-	-
2.5	2.0	0.7	2.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.7	16.4	18.2	249	404	537	-	-	-
4	2.6	0.7	4	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.1	17.9	20.5	334	506	784	-	-	-
6	3.1	0.7	6	1.2	1.0	0.2	1.25	1.7	1.5	1.7	16.7	19.5	22.1	446	635	944	-	-	-
10	3.8	0.7	10	1.2	1.0	0.2	1.25	1.7	1.5	1.7	18.6	21.3	24.0	636	846	1192	335	545	891
16	4.8	0.7	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.3	24.1	27.4	953	1194	1741	463	704	1251
25	6.0	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	24.9	27.7	31.0	1337	1618	2255	621	901	1539
35	7.1	0.9	16	1.2	1.0	0.2	1.6	1.7	1.6	1.8	27.4	30.4	33.7	1709	2028	2733	753	1068	1759
50	8.4	1.0	25	1.2	1.2	0.2	2.0	1.8	1.7	2.0	31.8	34.8	39.4	2313	2681	3808	1009	1372	2476
70	10.0	1.1	35	1.2	1.2	0.5	2.0	2.0	1.9	2.1	33.2	37.6	40.7	3129	3857	4653	1340	2127	3000
95	11.7	1.1	50	1.3	1.2	0.5	2.0	2.1	2.0	2.3	37.6	42.2	45.2	4226	5064	5975	1755	2658	3616
120	13.3	1.2	70	1.4	1.4	0.5	2.5	2.3	2.1	2.4	42.3	47.0	51.1	5402	6356	7786	2244	3291	4882
150	14.5	1.4	70	1.4	1.4	0.5	2.5	2.4	2.2	2.5	45.7	50.4	54.7	6489	7515	9080	2641	3779	5532
185	16.4	1.6	95	1.5	1.5	0.5	2.5	2.5	2.4	2.7	50.6	55.5	59.9	8171	9323	11084	3329	4625	6592
240	18.7	1.7	120	1.6	1.5	0.5	2.5	2.7	2.6	2.9	57.0	62.2	66.3	10599	11940	13888	4233	5738	7873
300	20.4	1.8	150	1.7	1.5	0.5	3.15	2.9	2.8	3.1	63.3	68.9	74.0	13205	14742	17671	5200	6914	10136

1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(5)0.6/ 1kV ,Five Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
			Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
			STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.3	15.1	16.8	182	324	444	-	-	-
2.5	2.0	0.7	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.7	16.4	18.2	249	404	537	-	-	-
4	2.6	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.1	17.9	20.5	334	506	784	-	-	-
6	3.1	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	16.7	19.5	22.1	446	635	944	-	-	-
10	3.8	0.7	1.2	1.0	0.2	1.25	1.7	1.5	1.7	18.6	21.3	24.0	636	846	1192	335	545	891
16	4.8	0.7	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.3	24.1	27.4	953	1194	1741	463	704	1251
25	6.0	0.9	1.2	1.0	0.2	1.6	1.7	1.5	1.7	25.8	28.6	31.9	1411	1701	2366	658	949	1614
35	7.1	0.9	1.2	1.0	0.2	1.6	1.7	1.6	1.8	28.9	31.9	35.2	1889	2226	2954	832	1163	1878
50	8.4	1.0	1.2	1.2	0.2	2.0	1.9	1.8	2.0	33.4	36.4	40.9	2498	2883	4040	1110	1489	2623
70	10.0	1.1	1.2	1.2	0.5	2.0	2.0	1.9	2.2	36.6	41.1	44.3	3470	4271	5184	1471	2296	3211
95	11.7	1.1	1.3	1.4	0.5	2.5	2.2	2.0	2.3	41.3	45.9	50.1	4706	5621	7080	1940	2883	4353
120	13.3	1.2	1.4	1.4	0.5	2.5	2.3	2.2	2.4	45.9	50.8	54.9	5910	6962	8538	2426	3533	5179
150	14.5	1.4	1.5	1.4	0.5	2.5	2.4	2.3	2.6	51.5	56.4	60.5	7299	8476	10212	2948	4178	5981
185	16.4	1.6	1.5	1.5	0.5	2.5	2.6	2.5	2.8	56.5	61.6	65.9	9097	10407	12338	3685	5084	7136
240	18.7	1.7	1.6	1.5	0.5	2.5	2.8	2.7	3.0	63.8	69.2	73.2	11840	13363	15505	4704	6322	8574
300	20.4	1.8	1.7	1.7	0.5	3.15	3.0	2.9	3.2	70.7	76.3	81.7	14765	16474	19793	5783	7591	11067

1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

(6)0.6/ 1kV ,3C+2E Cores,,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2E Cores,,Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2E Cores,Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Nominal Cross Section	Approx. Overall Diameter of Conductor	Nominal Thickness of XLPE Insulation	Nominal Cross Section of Earth Conductor	Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Approx. Weight Cable
				Nominal Thickness of PVC Inner Sheath		Thickness of Steel Tape or Diameter of Steel Wire		Thickness of PVC Outer Sheath			Approx.Overall Diameter			Cu Conductor			Al Conductor
				STA	SWA	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA	UnAr	STA	SWA
mm2	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	kg/km	kg/km
1.5	1.6	0.7	1.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	12.3	15.1	16.8	182	324	444	-	-	-
2.5	2.0	0.7	2.5	1.2	1.0	0.2	0.8	1.7	1.5	1.7	13.7	16.4	18.2	249	404	537	-	-	-
4	2.6	0.7	4	1.2	1.0	0.2	1.25	1.7	1.5	1.7	15.1	17.9	20.5	334	506	784	-	-	-
6	3.1	0.7	6	1.2	1.0	0.2	1.25	1.7	1.5	1.7	16.7	19.5	22.1	446	635	944	-	-	-
10	3.8	0.7	10	1.2	1.0	0.2	1.25	1.7	1.5	1.7	18.6	21.3	24.0	636	846	1192	335	545	891
16	4.8	0.7	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	21.3	24.1	27.4	953	1194	1741	463	704	1251
25	6.0	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	24.0	26.8	30.1	1234	1505	2116	578	849	1460
35	7.1	0.9	16	1.2	1.0	0.2	1.6	1.7	1.5	1.7	25.9	28.7	32.0	1506	1797	2462	679	966	1617
50	8.4	1.0	25	1.2	1.0	0.2	1.6	1.8	1.7	1.9	30.4	33.3	36.6	2078	2429	3200	922	1269	2027
70	10.0	1.1	35	1.2	1.2	0.5	2.0	1.9	1.8	2.0	32.3	36.7	39.7	2817	3527	4307	1201	1950	2773
95	11.7	1.1	50	1.2	1.2	0.5	2.0	2.1	2.0	2.2	36.6	41.0	44.0	3813	4611	5487	1593	2436	3348
120	13.3	1.2	70	1.3	1.4	0.5	2.5	2.2	2.0	2.4	41.9	46.5	50.9	4967	5894	7365	2044	3027	4569
150	14.5	1.4	70	1.4	1.4	0.5	2.5	2.3	2.1	2.4	44.7	49.5	53.7	5764	6773	8305	2343	3418	5052
185	16.4	1.6	95	1.5	1.4	0.5	2.5	2.4	2.3	2.6	50.0	54.9	59.0	7353	8496	10216	2975	4199	6006
240	18.7	1.7	120	1.5	1.5	0.5	2.5	2.6	2.5	2.8	56.2	61.3	65.6	9461	10763	12700	3778	5171	7227
300	20.4	1.8	150	1.6	1.5	0.5	2.5	2.8	2.6	3.0	62.7	67.9	72.0	11766	13238	15382	4632	6193	8413

1.5mm2 to 6mm2 are normal round stranded conductor, 10mm2 to 50mm2 are compact round condctor.
Above 70m2 are compact semicircle conductor.
UnAr: Unarmoured/STA: Double Steel Tape Armoured/SWA: Galvanized Steel Wire Amoured
Only the halogen free cables shall be generally complied with IEC61034 and 60754.

Application:
Low Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
