3X95+50mm2 Low Voltage Underground Unarmor Power Cable

Name: 3X95+50mm2 Low Voltage Underground Unarmor Power Cable
Brand: all-electronics-online.com
SKU: 828094265
Availability: InStock
Rating: 4.6 (119 reviews)

Price:	US $ 0.1-9.9/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3X95+50mm2 power cable
Armor:	Steel Tape/Wire Armor
Conductor Material:	Copper/Al
Standard:	IEC60502 or IEC60228
Quality Guarantee:	Ten Years
Core:	Single or Multi Cores
Insulated Color:	as Your Requirement
Sheath Color:	Black
Sample:	Yes
Manufacture:	Yes
HS Code:	8544492100
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	UL
Wire Core Material:	99.99% Copper
Brand:	Hongda

Product Description

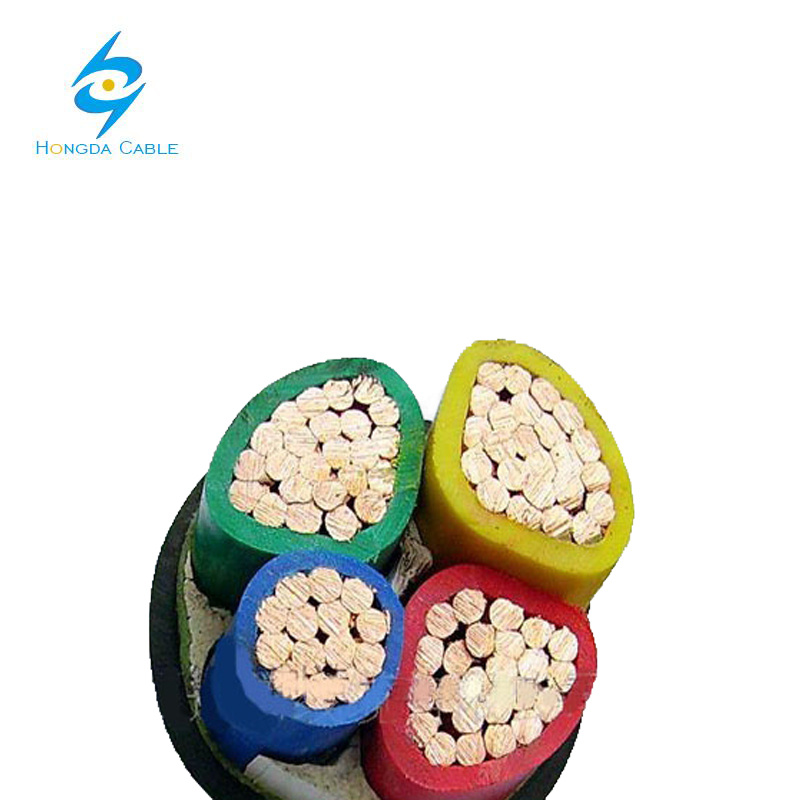

3x95mm2+50mm2 low voltage Underground unarmor Power Cable

3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70ºC.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160ºC.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0ºC.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Construction:
0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

0.6/1kV PVC Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
0.6/1kV PVC Insulated Power Cable	Aluminum	Copper	PVC	SW	ST	DST	AW	PVC	PE
Cu/PVC/PVC		P	P	---	---	---	---	P
Cu/PVC/PE		P	P	---	---	---	---		P
Al/PVC/PVC	P		P	---	---	---	---	P
Al/PVC/PE	P		P	---	---	---	---		P
Cu/PVC/STA/PVC		P	P	---	P	---	---	P
Cu/PVC/STA/PE		P	P	---	P	---	---		P
Al/PVC/STA/PVC	P		P	---	P	---	---	P
Al/PVC/STA/PE	P		P	---	P	---	---		P
Cu/PVC/DSTA/PVC		P	P	---	---	P	---	P
Cu/PVC/DSTA/PE		P	P	---	---	P	---		P
Al/PVC/DSTA/PVC	P		P	---	---	P	---	P
Al/PVC/DSTA/PE	P		P	---	---	P	---		P
Cu/PVC/SWA/PVC		P	P	P	---	---	---	P
Cu/PVC/SWA/PE		P	P	P	---	---	---		P
Al/PVC/SWA/PVC	P		P	P	---	---	---	P
Al/PVC/SWA/PE	P		P	P	---	---	---		P
Cu/PVC/AWA/PVC		P	P	---	---	---	P	P
Cu/PVC/AWA/PE		P	P	---	---	---	P		P
Al/PVC/AWA/PVC	P		P	---	---	---	P	P
Al/PVC/AWA/PE	P		P	---	---	---	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Standards
GB/12706-2008, IEC60502-1,IEC 60228,IEC60332 BS 5467,IS 1554 , IS 7098 ect.
Hongda cable can also design and produce for special application requirement.

Chinese Type		Description	Application
Cu	Al	Description	Application
YJV	YJLV	Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces.
YJY	YJLY	Cu conductor(Al conductor)XLPE insulated PE sheathed power cable
YJV22	YJLV22	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
YJV23	YJLV23	Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable
YJV62	YJLV62	Cu conductor(Al conductor)XLPE insulated double of aluminium-tape armored PVC sheathed power cable
YJV32	YJLV32	Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
YJV33	YJLV33	Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable
YJV72	YJLV72	Cu conductor(Al conductor)XLPE insulated aluminium-wire armored PE sheathed power cable

^{Packaging&Delivery}

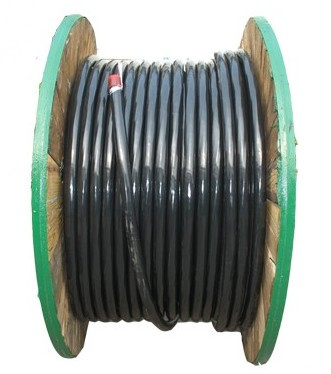

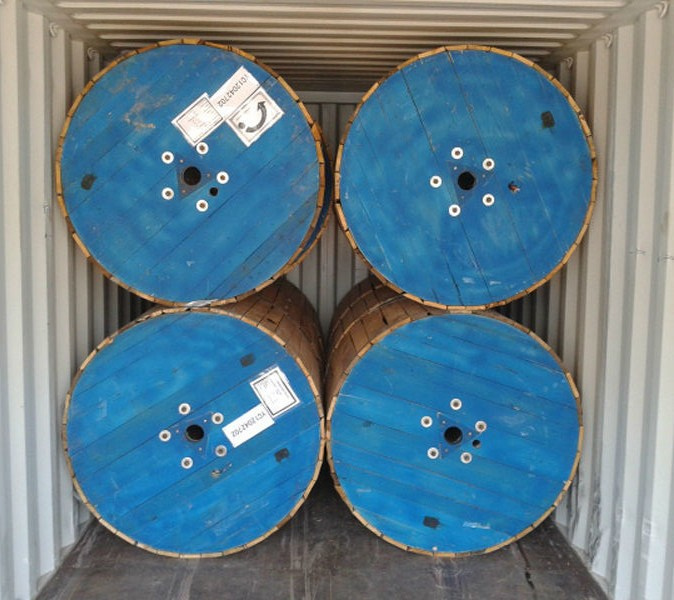

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)

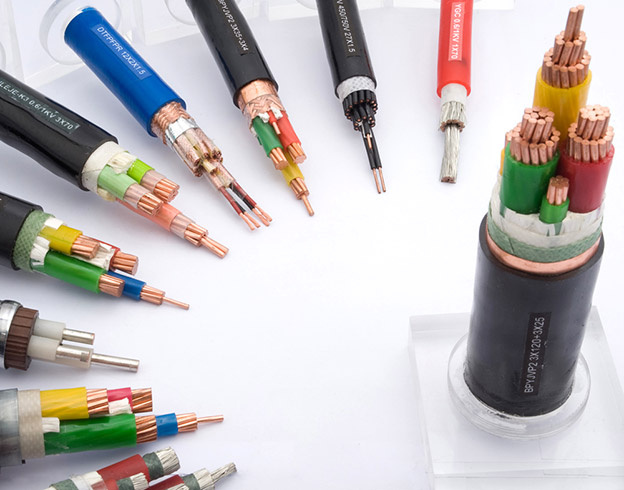

Factory and product

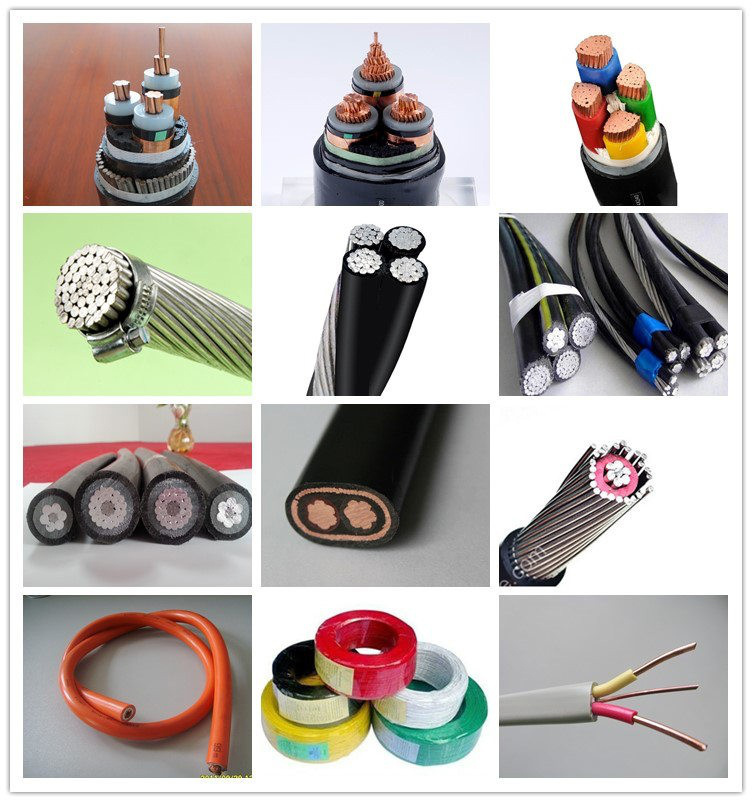

Main products

^{Contact us}
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
tel :+86 18639114351

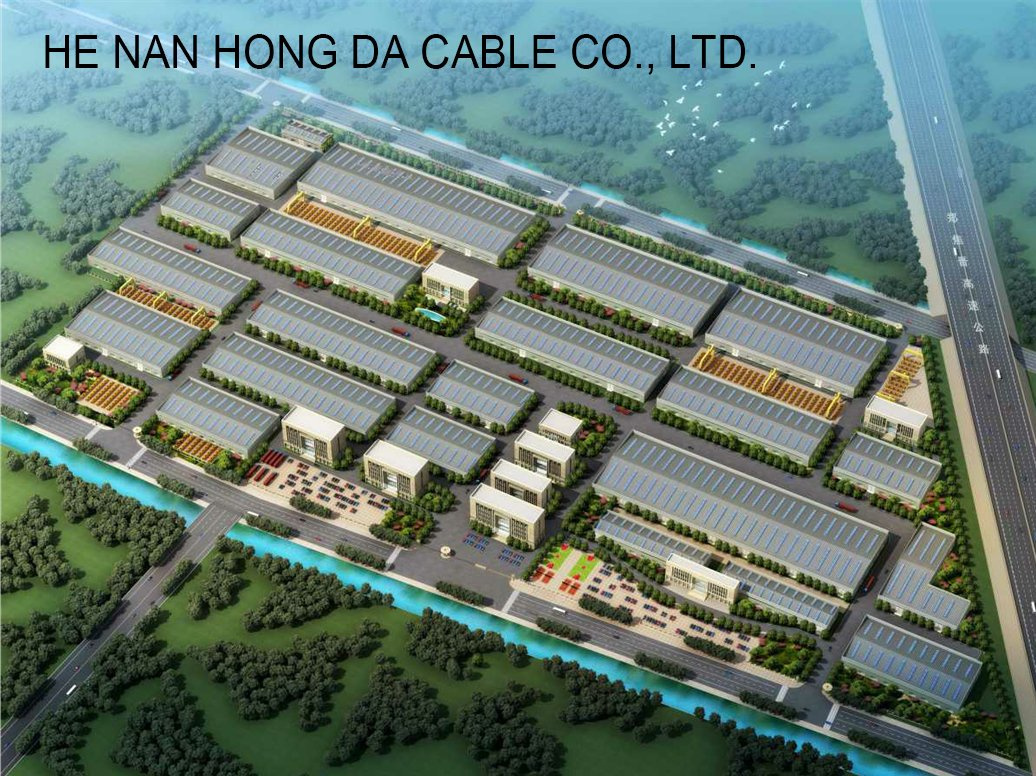

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
