| Markets: |
North America,Southeast Asia,Africa,Eastern Asia |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Current: |
DC & AC |
| Application: |
Underground |
| Certification: |
CE |
| Brand: |
Jinshui |
Product Description
Specifications
XLPE Insulated PVC Sheathed Power Cable
1 factory price
2 high quality and fast delivery
3 OEM or customized design

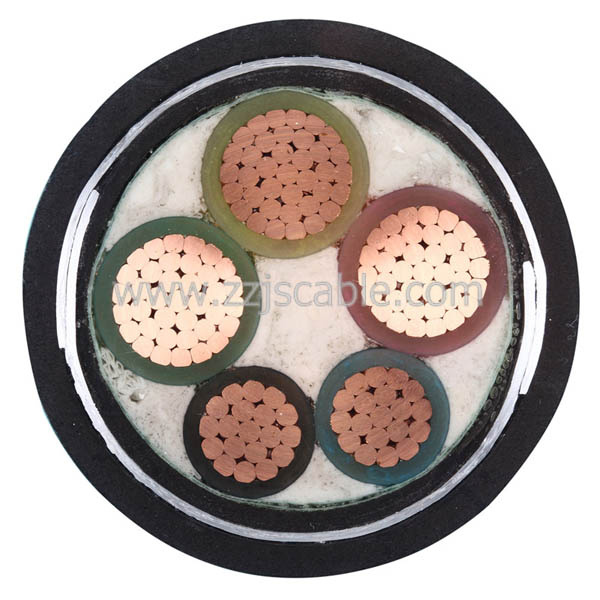

4+1 Core XLPE Insulated PVC Sheathed Power Cable
1. conductor: copper
2. insulation: xlpe
3 .voltage :low
4. high quality and fast delivery
5.OEM or customized design
|
Rated voltage |
0.6/1kV, 1.8/3kV,3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV |
|
Max.permissible continuous operating temperature of conductor |
90 °C |
|
Max.short –circuit temperature of conductor(5s maximum duration ) |
≤250 °C |
|
The bending radius of single-core cables |
≥15 times of cable diameter |
|
The bending radius of multi-core cables |
≥10 times of cable diameter |
Standards
International: IEC60502
China: GB/T12706.1-2002
Certificates
CCC, IQNet and more others at request
Spec ification s
|
Model Number |
Description |
Application |
|
YJV/YJLV |
Copper/ Aluminum Conductor, XLPE Insulated, PVC Sheathed Power Cable |
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed. |
|
YJV22/YJLV22 |
Copper/ Aluminum Conductor, Steel Tape Armored, PVC Sheathed Power Cable |
Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces. |
|
YJV23/YJLV23 |
Copper/ Aluminum Conductor, Steel Tape Armored, PE Sheathed Power Cable |
|
YJV32/YJLV32 |
Copper/ Aluminum Conductor, XLPE Insulated, Fine Steel Wire Armored, PVC Sheathed Power Cable |
Apply to shafts, water and soil, able to bear the larger positive pressure. |
Technical data
Specification
(mm 2 ) |
Insulation thickness
(mm) |
Sheath thickness
(mm) |
O.D
(mm) |
Reference weight of cable
(kg/km) |
Max D.C resistance at 20°C
(Ω/km) |
Recommended Current Capacity
(A) |
|
Cu |
Al |
Cu |
Al |
Cu |
Al |
|
4*4+1*2.5 |
0.7 |
1.5 |
14.5 |
331 |
214 |
4.61 |
7.41 |
34 |
27 |
|
4*6+1*4 |
0.7 |
1.5 |
15.9 |
435 |
259 |
3.08 |
4.61 |
43 |
35 |
|
4*10+1*6 |
0.7 |
1.5 |
18.9 |
649 |
359 |
1.83 |
3.08 |
60 |
47 |
|
4*16+1*10 |
0.7 |
1.5 |
21.9 |
965 |
499 |
1.15 |
1.91 |
83 |
64 |
|
4*25+1*16 |
0.9 |
2 |
26.2 |
1456 |
725 |
0.727 |
1.2 |
105 |
82 |
|
4*35+1*16 |
0.9 |
2 |
28.8 |
1863 |
882 |
0.524 |
0.868 |
125 |
100 |
|
4*50+1*25 |
1 |
2 |
33.4 |
2633 |
1216 |
0.387 |
0.641 |
160 |
125 |
|
4*70+1*35 |
1.1 |
2 |
38.8 |
3565 |
1581 |
0.268 |
0.443 |
200 |
155 |
|
4*95+1*50 |
1.1 |
2 |
44.1 |
4735 |
2028 |
0.193 |
0.32 |
245 |
200 |
|
4*120+1*70 |
1.2 |
2.5 |
49.5 |
5977 |
2512 |
0.153 |
0.253 |
285 |
220 |
|
4*150+1*70 |
1.4 |
2.5 |
54.1 |
7276 |
3055 |
0.124 |
0.206 |
325 |
250 |
|
4*185+1*95 |
1.6 |
3 |
60.5 |
9055 |
3797 |
0.0991 |
0.164 |
375 |
295 |
|
4*240+1*120 |
1.7 |
3 |
68.2 |
11567 |
4763 |
0.0754 |
0.125 |
440 |
345 |
