4-20 Ma Differential Pressure Transmitter for Flow Measurement

Name: 4-20 Ma Differential Pressure Transmitter for Flow Measurement
Brand: all-electronics-online.com
SKU: 824286845
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 120/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-86
Power:	12~36 (Standard 24VDC)
Body Material:	Stainless Steel
Temperature Compensation:	-20°c~75°c
Static Pressure Range:	0~3.5 MPa
Differential Pressure Range:	10~2500 Kpa

Product Description

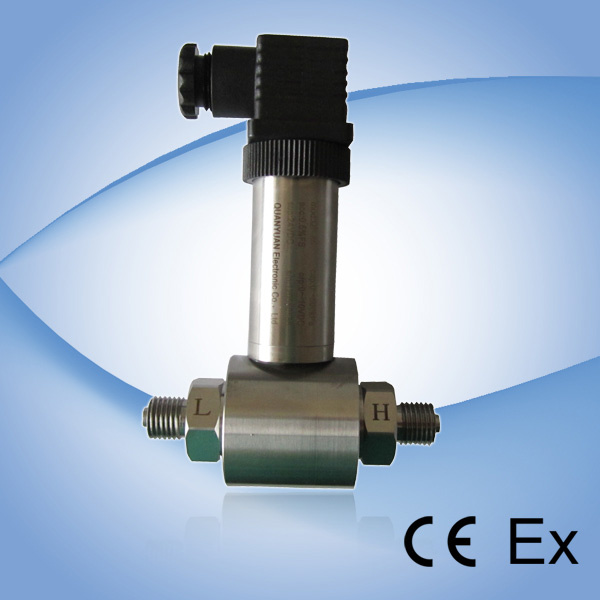

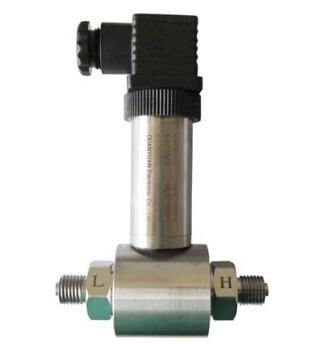

4-20 mA Differential Pressure Transmitter for flow measurement

Model:QP-86
Differential pressure range:10~2500 KPa
Static Pressure range:0~3.5 MPa

Feature:
Measuring differential pressure
Small in size, light in weight,easy to install
Various output scheme:0/4~20mA, 0/1~5V, or0/1~10V
Have the characteristics of high precision, good stability, long working life and high reliability.
Suitable for measuring gases and liquids.

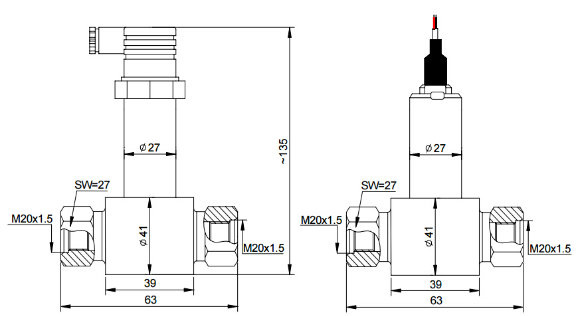

Sizes requirements:

Technical Specifications.
test condition of data:25°C(77 F) °

Pressure Range	0~±5kPa...±5MPa
pressure type	differential presssure (D)
Overpressure	150%FS
Accuracy	±0.25%(typical); ±0.5%(maximum)
Signal Output	4~20mA 0~5Vdc 1~5Vdc 0~10Vdc
power supply	10~36Vdc 8~36Vdc 8~36Vdc 12~30Vdc
long-term stability	≤0.3%FS/year
temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.05%FS/°C(max.)
temp.coefficient of span	±0.02%FS/°C(typ.) ±0.05%FS/°C(max.)
compensated temperature range	-10~+70 °C
operating temperature range	-40~+85 °C
storage temperature range	-40~+85 °C
Insulating resistance	≥Ω@ 100M 100Vdc
load resistance	R U-10)/0.02 (for 4/20mA) R>100k (for votage output)

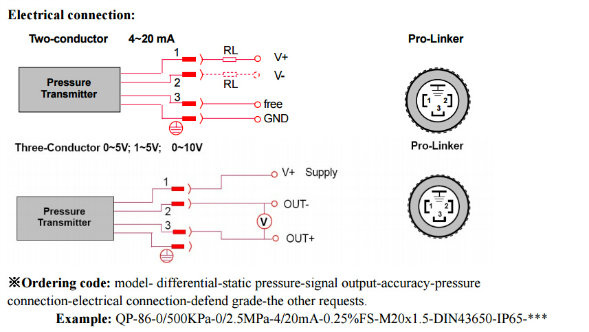

electrical interface	DIN43650,waterproof outlet
pressure interface	M20x1.5, G1/4,G1/2,1/4NPT, 1/2NPT (customer request)
material of pressure membrane	316LSS
material of housing	1Cr18Ni9Ti stainless steel
response time(10%~90%)	Viton
shock/impact	10gRMS,( ) 100g,11ms
protection	IP65(for DIN43650), IP(for waterproof lead)
certification	CE
EMC	EMI:EN50081-1/-2, EMS: EN50082-2
lightning proof	Air-conduction pressure : 8000V, Shell & cable conduction pressure: 4000V

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
