| Prod Model: |
QST-201 level sensor |
| Measure Range: |
0~200 Mh2o |
| Accuracy: |
0.1% Fs, 0.25% Fs (Standard), 0.5% Fs |
| Output Signal: |
4~20mA;0~5V, 0~10V |
| Power Supply: |
12~36(Standard 24VDC) |
| Application: |
Measure Liquid Level |
Product Description
Production Introduction:
QST-201 series liquid level sensors are consisting of well-sealed immerging oil-filled liquid level transducers and special circuit for manometers. Have characteristics of high precision, good stability, long life and easy to fix. Adopt special sealed configuration, so with good capability of anti-leakage.
According the relation between pressure, density and liquid level, the liquid level transducers measure the liquid pressure which in direct ratio with depth of liquid, then via amplificatory circuit, the measured pressure is transferred to standard 4~20mA current signal(or standard voltage signal).
Feature:
Range:0~0.6 mH2O....0~200 mH2O
Sealed structure, IP68.
Accuracy: 0.1% FS, 0.25% FS (standard), 0.5% FS
There is two kinds of connector to be chosen: intracavity or flush membrane type
Integrated construction, without external adjustment.

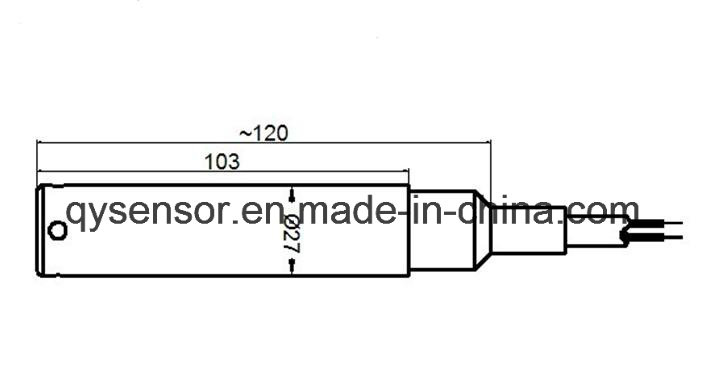

Dimension(mm):
Technical Specifications:
Measuring media |
Liquid which are compatible to 316L stainless steel |
Measuring range |
mH2O |
0~0.6,0~1,0~2,0~5,0~10,0~20,0~30, |
0~50,0~100,0~150,0~200 |
Overload pressure |
%FS |
150 |
Signal output |
transmitter, mA (2 wires) |
4~20 |
transmitter, Vdc (3 wires) |
0~5, 0~10 |
Power supply |
Vdc |
12~36(Model 24) |
Static accuracy |
%FS |
0.1, 0.25(standard), 0.5 |
Zero adjustment |
%FS |
≤±0.25 |
Span adjustment |
%FS |
≤±0.25 |
Long-term stability |
%FS/year |
<±0.5 |
Response time |
ms |
<2 |
Storage temp. |
ºC |
-40~+100 |
Operation temp. |
ºC |
0~+80 |
Compensated temp. |
ºC |
0~+50 |
Temp. coefficient of ZERO |
%FS/10ºC |
0.2 |
Temp. coefficient of SPAN |
%FS/10ºC |
0.2 |
Insulation resistance |
M Ω |
≥500 @ 100 Vdc |
Load resistance |
current output, Ohm |
250~1100 |
voltage output, Ohm |
>5000 |
Environmental protection |
IP rating |
IP 68 |
pressure memberane material |
316L SS |
Material for housing |
304 SS |
Electrical connection |
connector/cable |
4-core,7.6 mm shielded cable with vent pipe which is mechanically strong enough for deep submersible liquid level measurements |

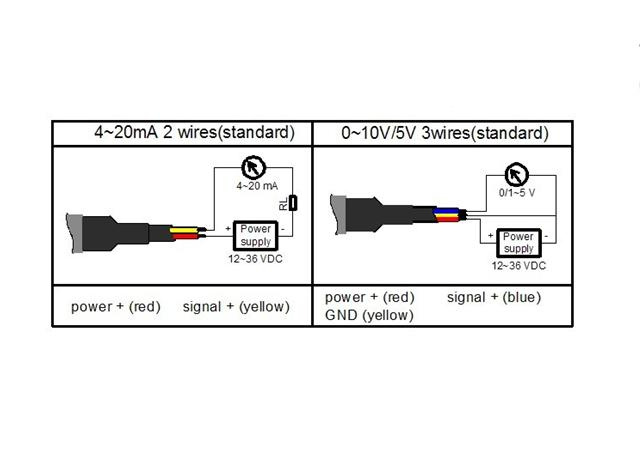

Electronic Connection:
Packaging & Shipping: All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services:
1. OEM/ODM Services:Our company provides OEM/ODM service and Customized products service.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality QuaranteeWe quarantee product quality for one-year starting from the date of delivery.
