| Prod Model: |
WNK805 |
| Pressure Type: |
Gp Ap Vacuum, Negative Pressure |
| Compensation Temp.: |
-10~70ºC |
| Working Temp.: |
-40~85ºC |
| Stability: |
0.25%Fs/Year |
| Accuracy: |
0.25%Fs |
Product Description

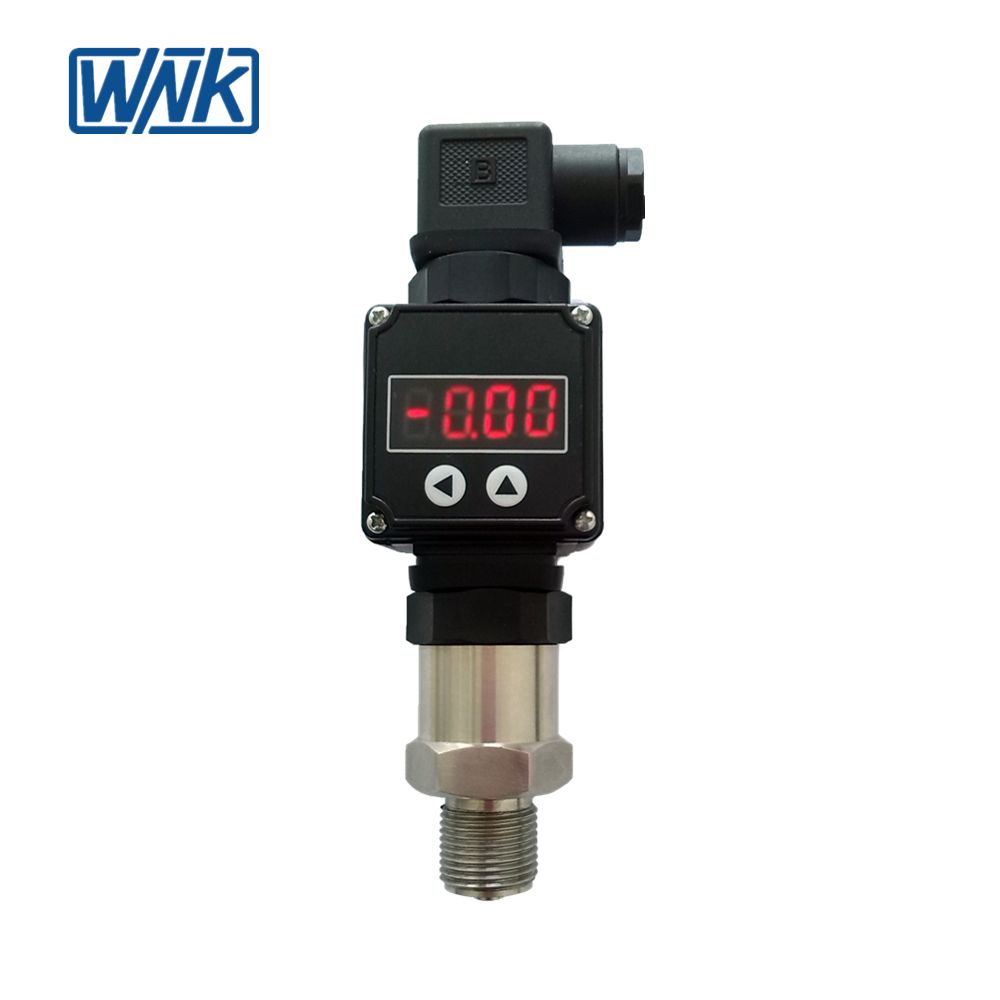

WNK805 Small Size Pressure TransmitterWNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure. WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.

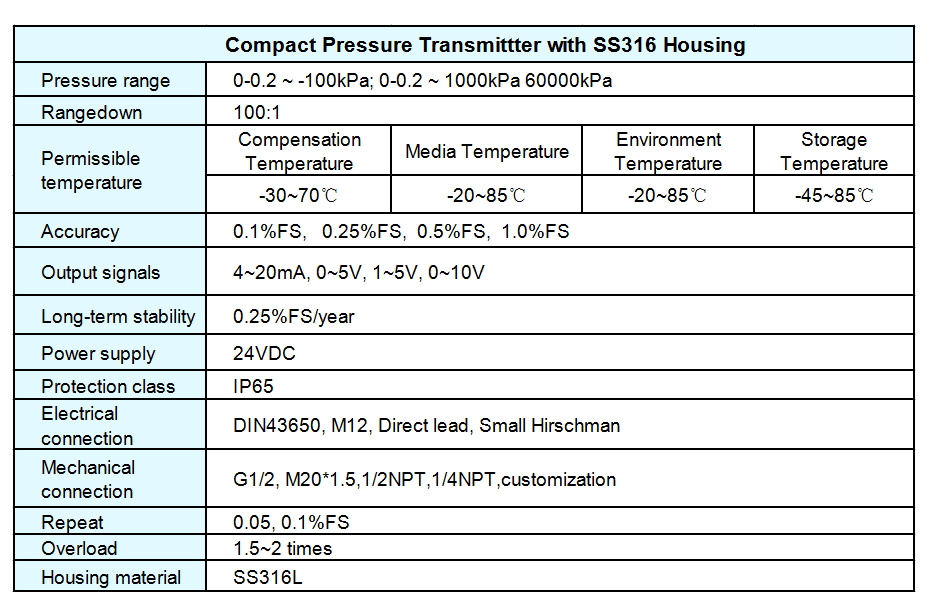

Technical specifications: Pressure range: 0-0.2 ~ -100kPa, 0-0.2 ~ 1000kPa 60000kPa
Pressure type: gauge, absolute, vacuum, negative pressure
Overload: 1.5 ~2 times
Non-linearity: 0. 1, 0.2 5, 0.5, 1%FS
Delay / repeat: 0.05 , 0.1%FS
Temp. compensation: -10-70 ºC
Working temperature: -40 ~ 85 ºC
Media: nonconducting and non - corrosion or weak corrosion gas
Comprehensive accuracy: 0.1, 0.25, 0.5, 1.0
Stability: 0.25% FS/ Year

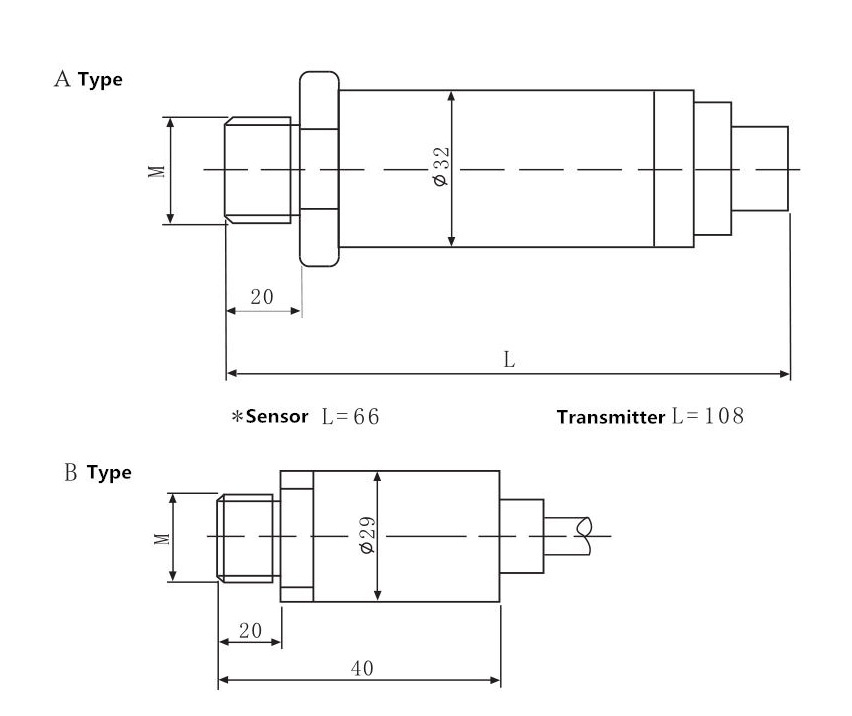

Dimensions: Housing material: 1Cr18Ni9TiConnector size: M20×1.5
Company Info:

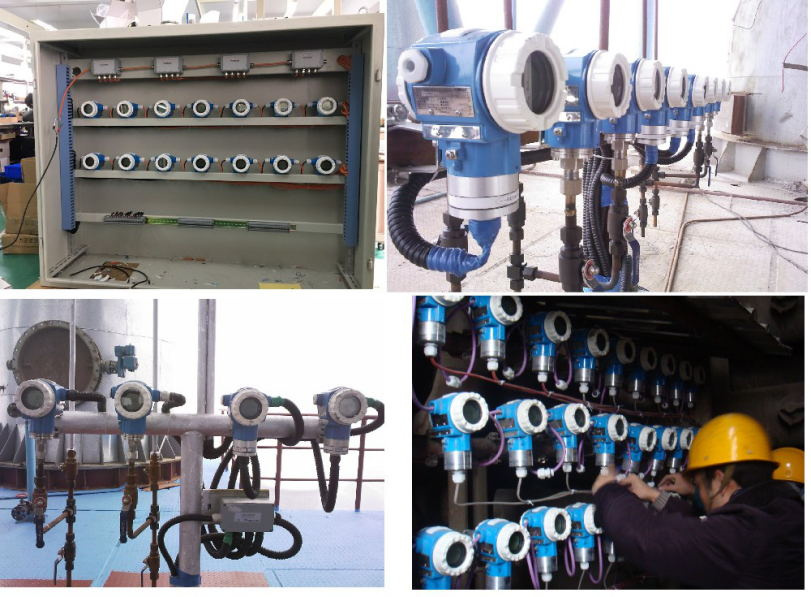

Project Photoes:
Certificates:
FAQ:
Q: Are you manufacturer or trading company?

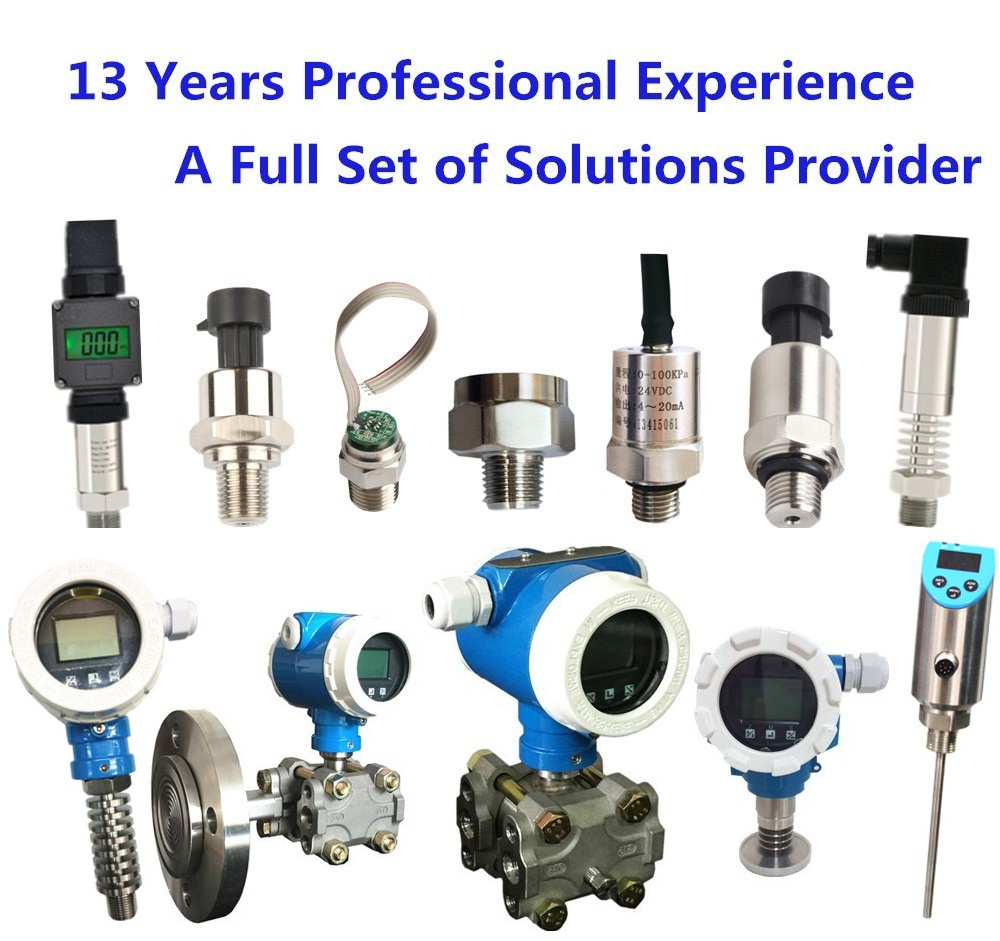

A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What's your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
