| Prod Model: |
DIN2X2 ISOEM U/A-P-O Series |
| Input: |
0-5V, 0-10V, 0-75mv., 4-20mA, 0-20mA, etc |
| Output: |
0-20mA ,4-20mA, 0-10mA, 0-5V, 0-10V, etc |
| Power Supply: |
5V,12V, 15V, 24VDC, 220VAC, etc. |
| Installation: |
35mm DIN Rail-Mounted Type |
| Size: |
83X37X51mm |
Product Description

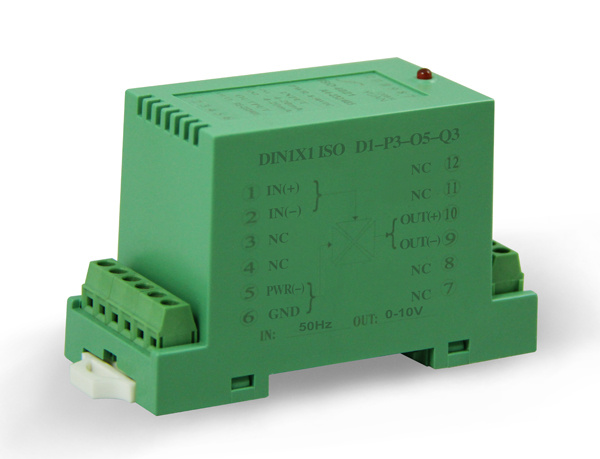

2-IN 2-OUT 0-5V to 4-20mA Converter or 0-5V to 4-20mA Transmitter with 3KV Isolation
Features of 0-5V to 0-20mA/4-20mA Transmitter/Converter
>> Efficiency grade: 0.2, 0.5
>> The modules already been calibrated before ex-factory, user can use it directly.
>> Non-linearity <0.2%, no zero and gain adjustment.
>> Isolation among signal input1/ input 2/ output1/output 2/Auxiliary power
>> Auxiliary power supply: 5VDC, 12VDC, 24VDC single power supply
>> Two-channel input and output can be uniform or different DC current or voltage signal.
>> 0-75mV//0-5V/0-± 100mV/0-± 10V etc voltage signal and 0-10mA/0-± 20mA/4-20mA etc current signal isolation, amplification and conversion
>> Industrial operating temperature: - 45º C ~ + 85º C
0-5V/4-20mA/0-10V Converter Applications:
>> Multi-channel sensor signal display and control.
>> Industrial field signal isolation, conversion, amplification and long-term transmission.
>> Interference rejection of 2X2 4-20mA signal ground.
>> Data acquisition, interference rejection of analog signal ground.
>> Electric power control, medical equipment isolation safety bar
>> Instrument and sensor signal receiving and detection
>> 4-20mA/0-5V etc signal isolation, distribution and conversion.
>> Industrial field analog and digital signal monitoring and control
0-5V/4-20mA/0-10V Converter Description:
Sunyuan DIN 2X2 ISO EM Series Analog Signal Isolation Amplifier/Transmitter is a kind of hybrid integrated modules which convert multi-channel analog voltage or current signals from the sensor, PLC into corresponding standard analog signals with the same accuracy and linearity. Inside the module, it integrates two set of ISO EM series high isolation analog signal isolation amplifier IC and adopts magnetoelectric coupling with low cost, which mainly used in the field with no special requirements for EMC (magnetoelectric interference). By using input and output side creepage distance and inner isolation design, the module realizes the isolation among signal input1, input 2, output 1, output2 and auxiliary power.
0-5V/ 0-10V to 0-20mA / 4-20mA Transmitter/Converter Technical Parameter:
Accuracy ---------- 0.1%, 0.2%, 0.5%
Auxiliary Power---------- DC5V, 12V, 24V, ± 10%
Operating Temp. ---------- -40 ~ +85º C
Working Humidity---------- 10 ~ 90% (No dew)
Storage Temp. ---------- -55 ~ +108º C
Storage Humidity---------- 10 ~ 95% (No dew)
Isolation ----------signal input/output/Auxiliary power
Insulation Resistance ---------- ≥ 20MΩ
2500VDC, 1 minute, leakage current 1mA
Impact Resistance Volt. ---------- 3KV, 1.2/50us(peak value)
| Input Specification | | Output Specification |
| Input | Input Impedance | Power Consumption | Input Overload Capacity | Output | Output Overload Capacity
| Response time |
| 0-5V | ≥300KΩ | Volt. Output
< 0.8W
Current output
<2W | 2.0 times rated:
Continuous | 4-20mA | Load resistance*
≤350Ω | ≤1mS |
| 0-10V | 0-20mA |
| 0-1mA | TYP:250Ω
or
Customized | 1.5 times rated:
Continuous
3.0 times rated:1S | |
| 0-10mA | 0-5V | ≥2KΩ |
| 0-20mA | 0-10V |
| 4-20mA | 1-5V |
