Changzhou Sunlight Electric Co., Ltd. >> 4.2V 0.35A Hybrid Stepper Motor for Printer

4.2V 0.35A Hybrid Stepper Motor for Printer

4.2V 0.35A Hybrid Stepper Motor for Printer
Price: US $ 10-15/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 28HS28-0354
Step Angle: 1.8degree
Rated Voltage: 4.2V
Rated Current: 0.35A
Phase Resistance: 1.2Ω
Phase Inductance: 5.8mh
Holding Torque: 450g.Cm
Rotor Inertia: 6g.Cm²
Motor Length: 28mm
Leads No.: 4
Motor Weight: 105g
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Operate Mode: The Three Single Phase
Type: Electromechanical
Brand: Slt

Product Description

Product description:
1.No. of phase:2
2.Voltage:4.2v
3.Rated Current:0.35A
4.Phase Resistance:12Ω
5.Phase Inductance :5.8mH
6.Holding Torque:450g.cm
7.Rotor Inertia :6g.cm²

8.Motor Length :28mm
9.Leads  No.:4
10.Motor Weight:105g

The specification of 4.2V 0.35A Hybrid Stepper Motor for Printer

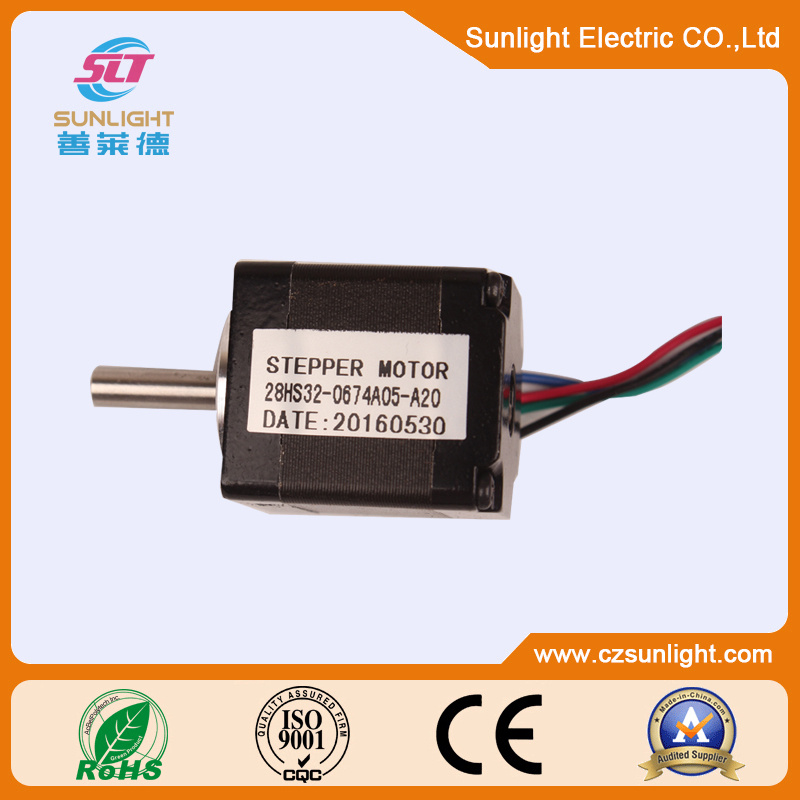

SLT28HS  STEPPER MOTOR
Specification
ModelStep Angle (°)  Rated Voltage (V)Rated Current (A)Phase Resistance(Ω)Phase Inductance (mH)Holding Torque (g.cm)Rotor Inertia (g.cm²)Motor Length (mm)Leads  No.Motor Weight(g)
28HS28-03541.84.20.35125.84506284105
28HS28-06041.82.520.64.22.24506284105
28HS32-06741.83.880.675.83.26009324110
28HS32-09561.82.750.952.90.94309326110
28HS45-06741.84.560.676.84.995012454140
28HS45-09561.83.40.953.41.275012456140
28HS51-06741.83.20.679.27.2120018514200
28HS51-09561.84.40.954.61.890018516200

Application of 4.2V 0.35A Hybrid Stepper Motor for Printer

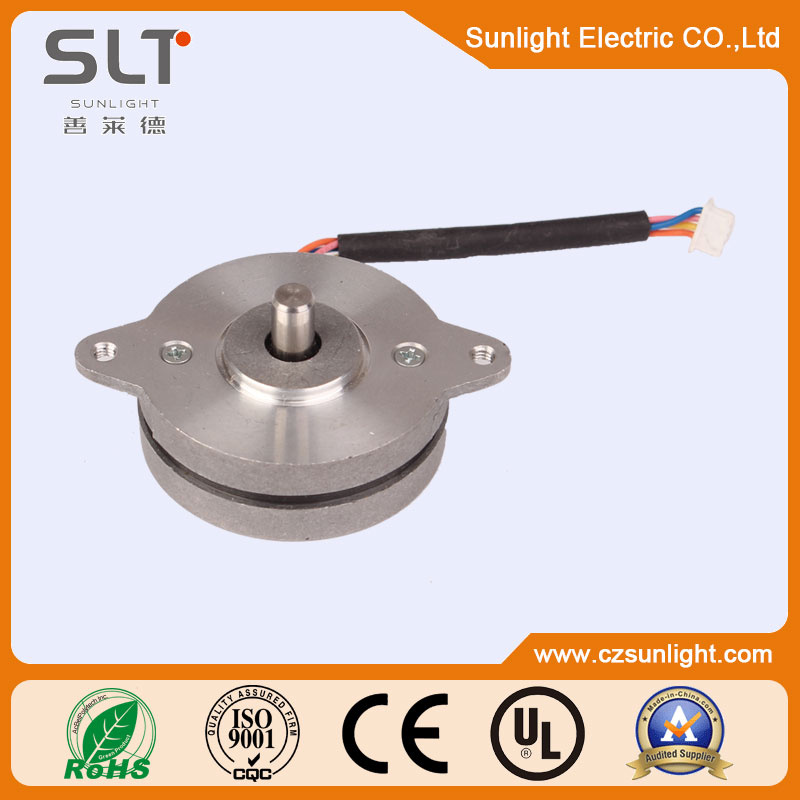

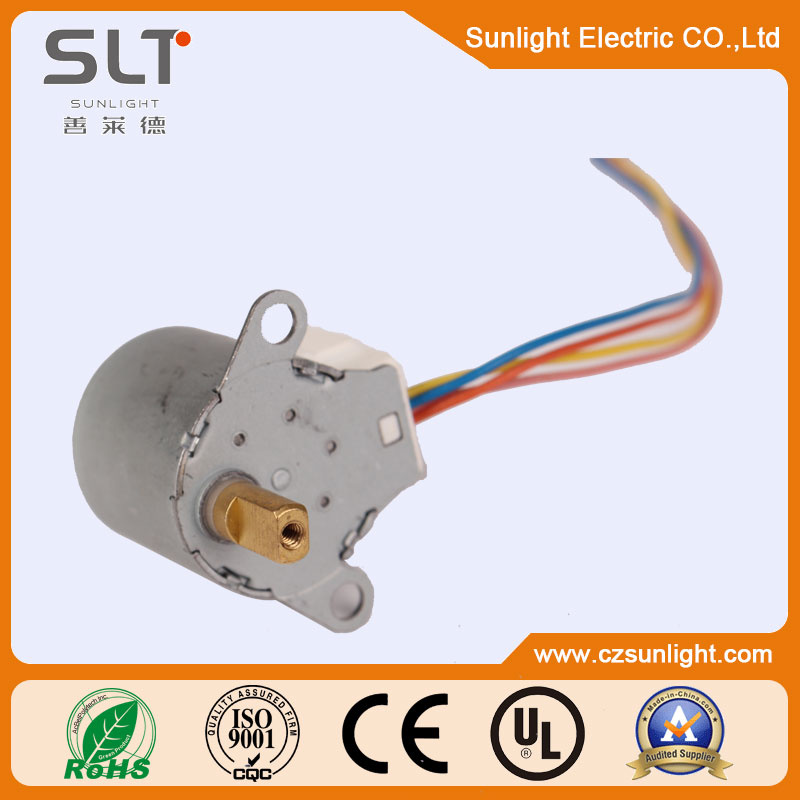

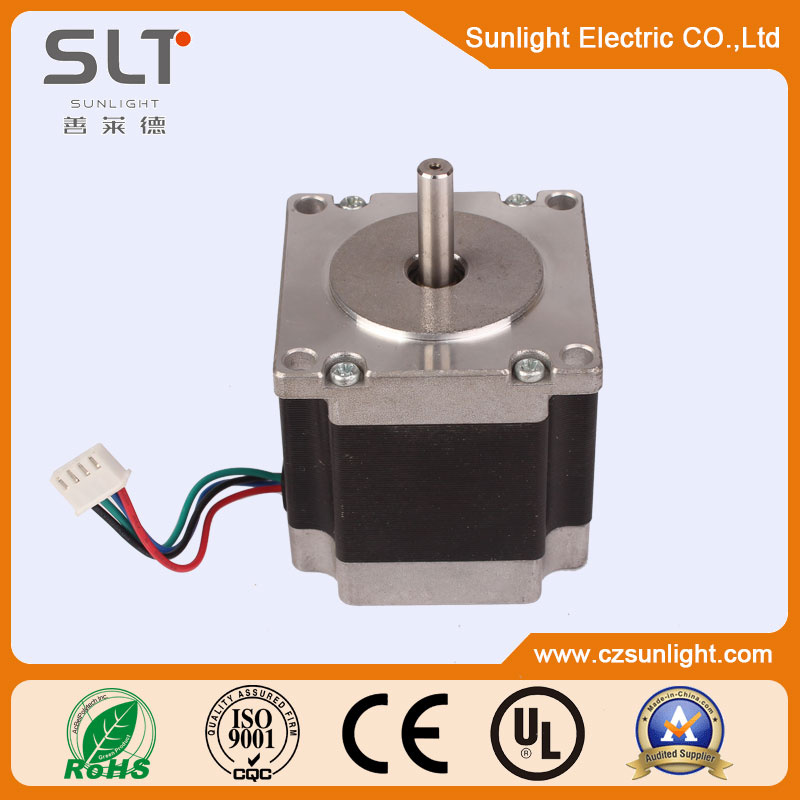

Other products

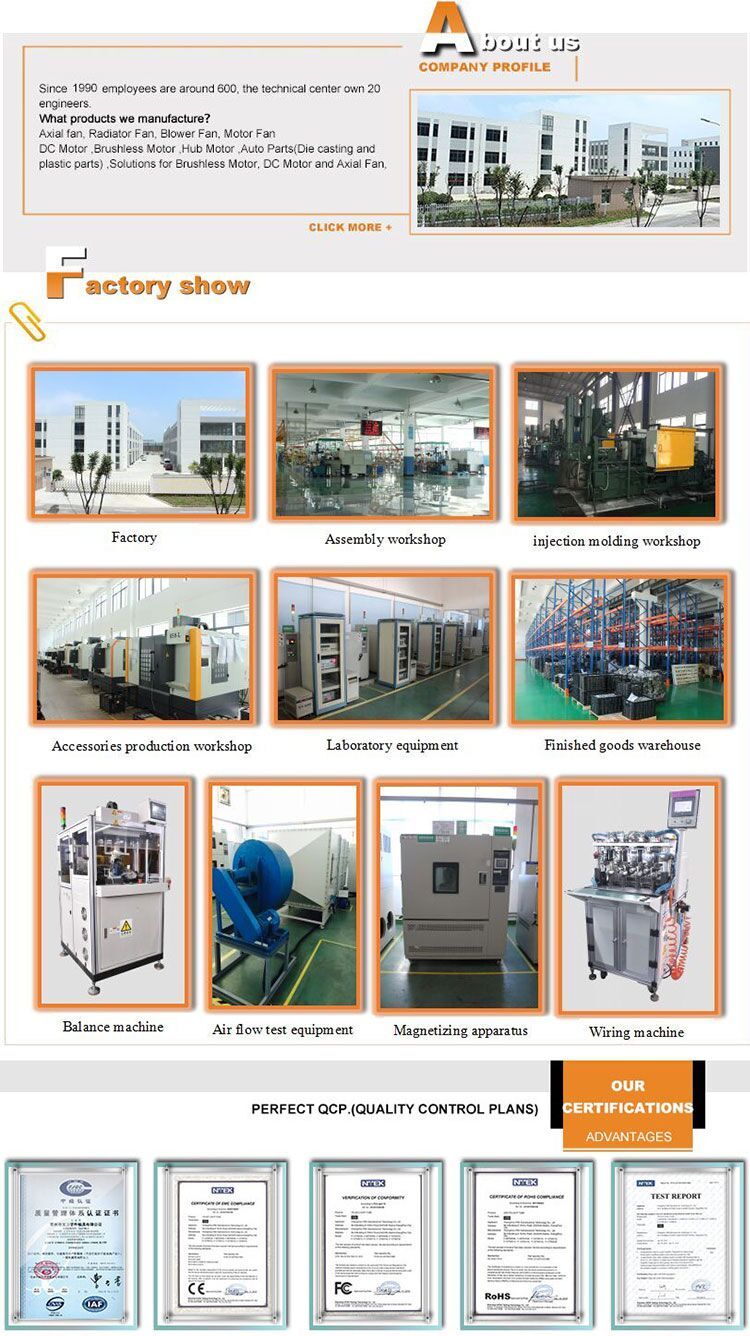

Company Information


Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required



Contact
Changzhou sunlight Co., Ltd
Contact Person: Sally
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15261108617


Website: www.czsunlight.com or www.sunlightmotor.com

Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.

There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.

The main products are DC motor, brushless DC motor, linear actuator and DC fan.

At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.

Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.

We welcome all the global companies to visit our factory and negotiate with us!

Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"

We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.

Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on

The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;

The main linear actuator's series are: ST01, PT01, YT01 and so on;

The main fan's series are: 16inch, 12inch, and so on

So that, If you give us a chance, Sunlight Motor will not let you disappoint.
