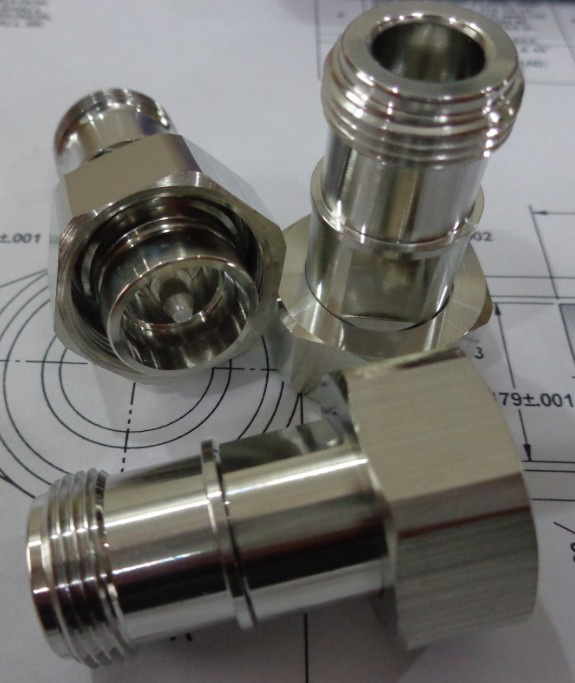

4.3-10 Male Ton Female Adaptor

Prod Model:	Adaptor N to 4.3-10, f-m, screw type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Interface Type:	4.3/10 Type
Brand:	Rfconnector

Product Description

The new 4.3-10 connector system is designed to meet the rising performance needs of mobile network equipment and at the same time reducing its size supporting the ongoing space reduction requirements.

This new interface offers very low PIM performance together with weight and compactness advantages. A key feature of this connector is the separation of electrical from mechanical plane, which implies a PIM and RL optimized contact independently from the coupling mechanism. This characteristics gives the possibility of offering the connector plug with screw, hand screw and quick lock design, thus simplifying the installation effort and offering for all mechanisms a very high electrical performance.

Applications

Because of its characteristics the 4.3-10 is the ideal candidate for applications as in new base stations as well as for solutions for distributed antenna systems (DAS), in-building architecture and in small cells applications.

In base stations the 4.3-10 can be used for interconnections in the remote radio head as well as interface on the antenna and on the jumpers.
In multi-operator/multiband DAS the 4.3-10 can be used where RF signals have to be combined, terminated, or distributed to the antenna.
In small cells applications the 4.3-10 is particularly suited for the challenging space restrictions and electrical performances requirements.

Key features

Excellent RL and PIM performances independently from the torque applied or mechanism used
High screening efficiency
Electrical contact protected against accidental hits
Compactness: the connector is fitting in 1 inch flange (25.4 mm)
Low weight (60% lighter compared to bigger RF interfaces)
3 possible mechanical connections (screw, hand screw and quick lock) on 1 universal female connector
IEC standardization

Benefits

High density module design because of smaller flange and a minimum pitch 25.4 mm for hand screw and quick lock
Light weight modules because of low components weight and no need of thick-walled modules (no torque or small torque required)
High flexibility in connector choice of the best matching coupling mechanism according to the application
Reliable electrical performance
Easy installation
Interface

According to

IEC61169-54

Electrical

1	Characteristic Impedance	50ohm
2	Frequency Range	DC-7.5GHz
3	VSWR	1.15
4	Dielectric withstanding voltage	≥2500RMS,50Hz,at sea level
5	Dielectric Resistance	≥5000MΩ
6	Contact Resistance	Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ
7	PIM3 ( @2-tonex20w)	≤-155dBc
8	Insertion Loss	≤0.10dB

Mechanical

1

Durability

Mating cycles ≥500

Material and plating

	Description	Material	Plating
1	Body	Brass	Tri-alloy
2	Insulator	PTFE	-
3	Center conductor	Phosphor bronze	Ag
4	Other	Brass	Tri-alloy

Environmental

1	Temperature Range	-40ºC~+85ºC
2	Watertightness	IP67
3	Rosh-compliance	Full ROHS compliance
4	Salt-fog test	96h

FAQ
1, What is your MOQ?
Our MOQ usually is 10,00pcs, but we accept lower quantity for your trial order.
2, Can we use our brand?
Sure, we provide OEM service ,just send us your packing design and company logo .
3,Can you supply sample for test and your samples are free?
 Yes, usually we will make sample specially according to clients' request , and the sample cost and freight charge will be paid by clients, but the sample cost will be return back to client after  order confirmed in future.
4,Do you have different quality grade to meet our customer and market?
Yes ,different customer market ,different quality grade .
5,what's your competitive advantage?
First, our company is a manufacturer, so the price must be the best for you .
Second, We have full-automatic machine to produce product , it can make our quality steady and safety.
Third, we worked on international trade for about 8years,have enough export experience.
Four, we have a professional technological team and develop develop new product  every year.
Five, every business personnel will responsible for his/her own order from sample confirm to shipment .
