0.4-315kw 3phase 380V Variable Frequency Drive for Spinning Frame

0.4-315kw 3phase 380V Variable Frequency Drive for Spinning Frame
Price: US $ 80/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: Z900
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: 380V Variable Frequency Drive
Color: Black
Voltage: 220V/380V
Power: 0.4kw-315kw
Phase: 1/3 Phases
Apply: General Use
Certificate: Ce;ISO9001
Protection: IP20
Communication Method: RS485
Speed Range: 1:100(Sfvc)
Application: General Transducer
Output Type: Triple
Principle Of Work: Vector Control Transducer
Switch Mode: PWM Control
Main Circuit Type: Voltage
Brand: Machtric
Function: General Used

Product Description

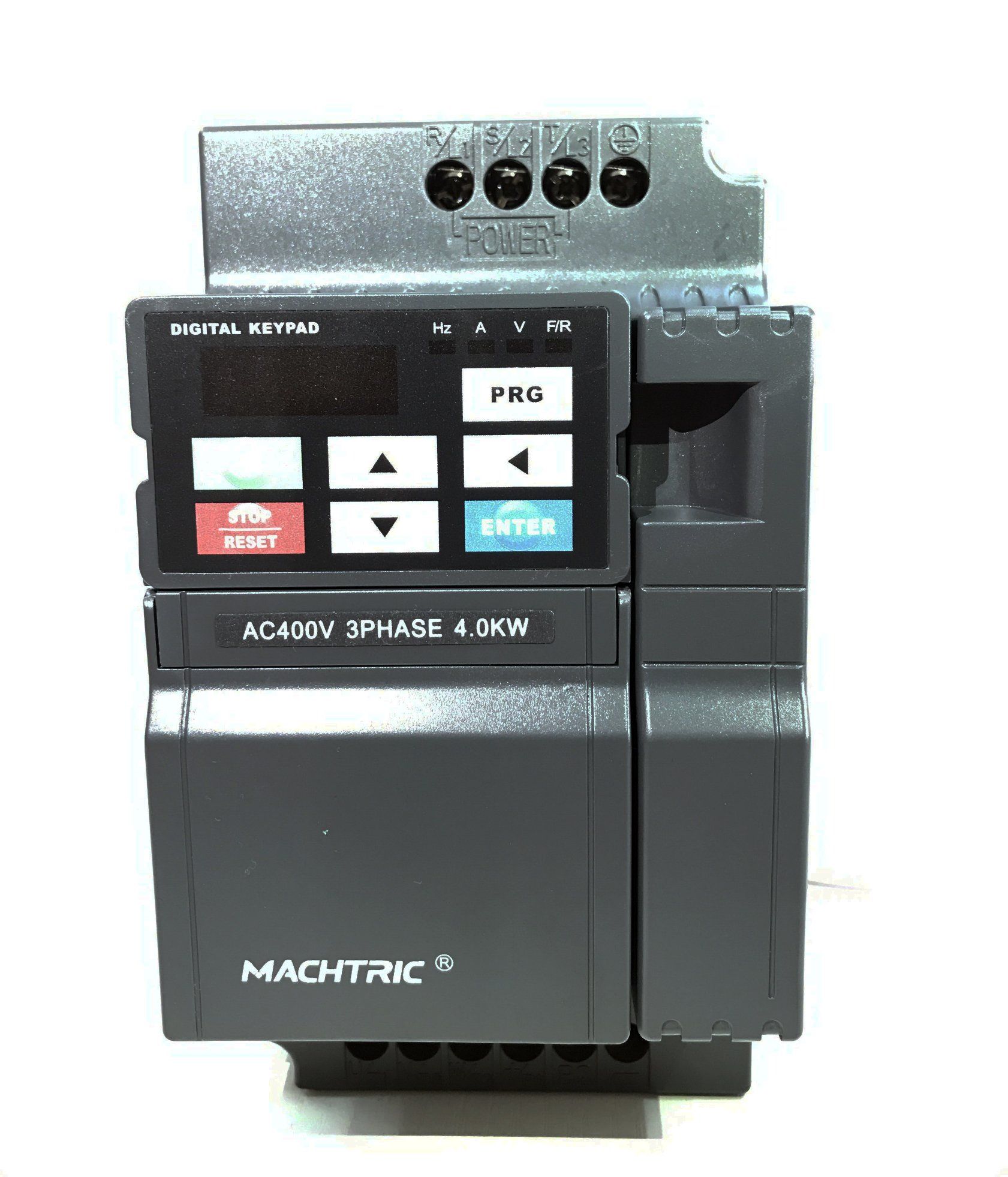

 0.4-315kw 3phase 380V Variable Frequency Drive for Spinning Frame

Product description


Items

Z900GE
Power
Supply
Rated voltage, FrequencySingle phase/Three phase  220V 50/60Hz
Voltage Range220V:170V~240V   380V:330~440V
OutputVoltage Range220V:0~220V,380V:0~380V
Frequency Range0.10`400.00Hz
Control methodSensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control
IndicationOperating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on.
Control SpecificationsOutput Frequency Range0.10Hz~400.00Hz
Frequency Setting ResolutionDigital input:0.01Hz, analog input:0.1% of maximum output frequency
Output Frequency Accuracy0.01Hz
V/F ControlSetting V/F curve to satisfy various load requirements
Torque ControlAuto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque
Multifunctional lnput
Terminal
Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions
Multifunctional Output
Terminal
2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings
Acceleration/deceleration Time Setting0~-999.9s acceleration/deceleration time can be set individually
   Other  FunctionsPID ControlBuilt-in PID control
RS485Standard RS485 communication function(MODBUS)
Frequency SettingAnalog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN
Multi-speedSix multifunction input terminals, 15section speed can be set
Automatic voltage regulationAutomatic voltage regulation function can be selected
CounterBuilt -in 2group of counters
Protection
Warning Function
Overload150%,60 second(Constant torque)
Over VoltageOver voltage protection can be set
Under VoltageUnder voltage protection can be set
Other ProtectionsOverheat, short circuit, over current, and parameter lock and so on
EnvironmentAmbient Temperature-10ºC to 40ºC(non-freezing)
Ambient HumidityMax.95%(non-condensing)
AltitudeLower than 1000m
VibrationMax. 0.5G
StructureCooling ModeForced air cooling
Protective StructureIP20
InstallationModeWall Mounted

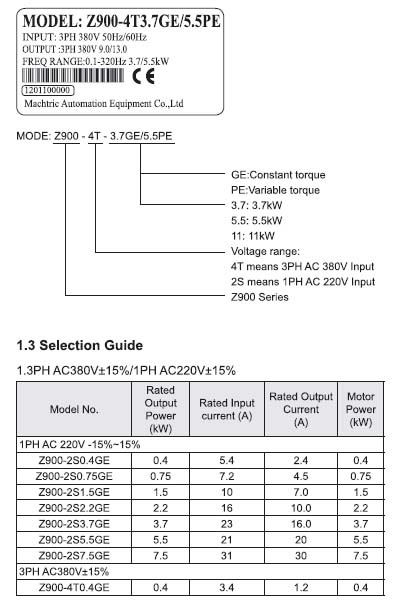

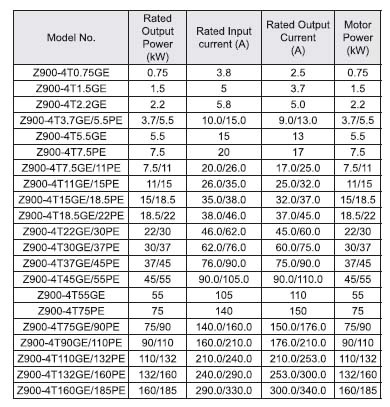

Power reference

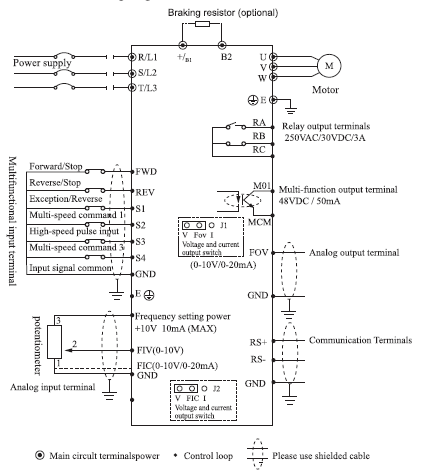

Wiring diagram


Target market of Z900A series inverter
Food machinery-Feeder, mixer, bag filling machines, pastry forming machine
Woodworking Machinery-Polishing machine, grinding machine, carving machine
Textile Machinery-winding machine, fabric inspection machine
Packaging Machinery-Liquid filling machine, pharmaceutical filling machine
Other: Stone cutting machine
Blowing machine, Water-pump-housetop/a fan to fill and exhaust gas, small
Pump for water supply
Printing equipment-offset
Conveyor belt-Small conveyor belt, common conveyor belt
Feeding equipment-Tool machine, winding machines, weaving machines equipment
Rubber and plastic industry-Sealing machine, various types of small machine
General business-Common household, air conditioning, automatic door
