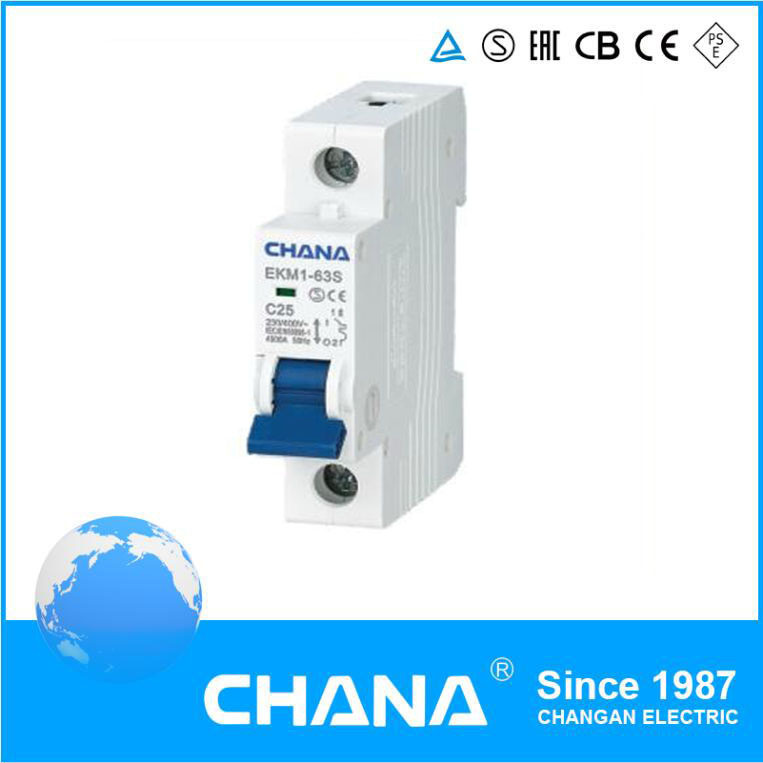

4.5ka Economic MCB Devre Kesiciler with CB Ce and TUV Approvals

Name: 4.5ka Economic MCB Devre Kesiciler with CB Ce and TUV Approvals
Brand: all-electronics-online.com
SKU: 817106365
Availability: InStock
Rating: 4.9 (33 reviews)

Price:	US $ 0.58-3/Piece
Min Order:	180/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-63S 1P 25A 4.5KA
Rated Current:	25A
Indicator:	No Indicator
Rated Breaking Capacity:	4500A
Frequency:	50/60Hz
OEM:	Acceptable
Standard:	IEC60898-1
Frame Type:	C45
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	TUV
Poles Number:	1p
Function:	Overload and Short-Circuit Protection

Product Description

1. Electrical Features

Rated current In	1,2,3,4,6,10,13,16,20,25,32,40,50,63A
Poles	1P,1P+N,2P,3P,3P+N,4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	4500/6000A
Energy limiting class	3
Rated impulse withstand voltage(1.2/50) Uimp	4000V
Dielectric test voltage at ind.Freq. for 1 min	2kV
Pollution degree	2
Thermo-magnetic release characteristic	B,C,D

2. Mechanical Features

Electrical life	4000 cycles
Mechanical life	6000 cycles
Contact position indicator	Yes
Protection degree	IP20
Reference temperature for setting of thermal element	30ºC
Ambient temperature (with daily average≤35ºC)	-5ºC...+40ºC
Storage temperation	-25ºC...+70ºC

3. Installation

1) Terminal connection type: Cable/pin-type busbar
2) Terminal size top/buttom for cable:25mm² 18-3AWG
2) Terminal size top/buttom for busbar:25mm² 18-3AWG
3) Tightening torque 2.0 N*m 22 In-Ibs
4) Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
5) Connection: From top and bottom

4. Combination with accessories

1) Auxiliary contact: Yes
2) Shunt release: Yes
3) Under voltage release: Yes
4) Alarm contact:yes

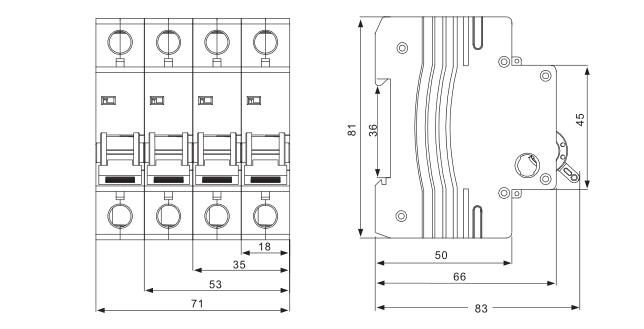

5. Overall and Installation Dimension (mm)

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
