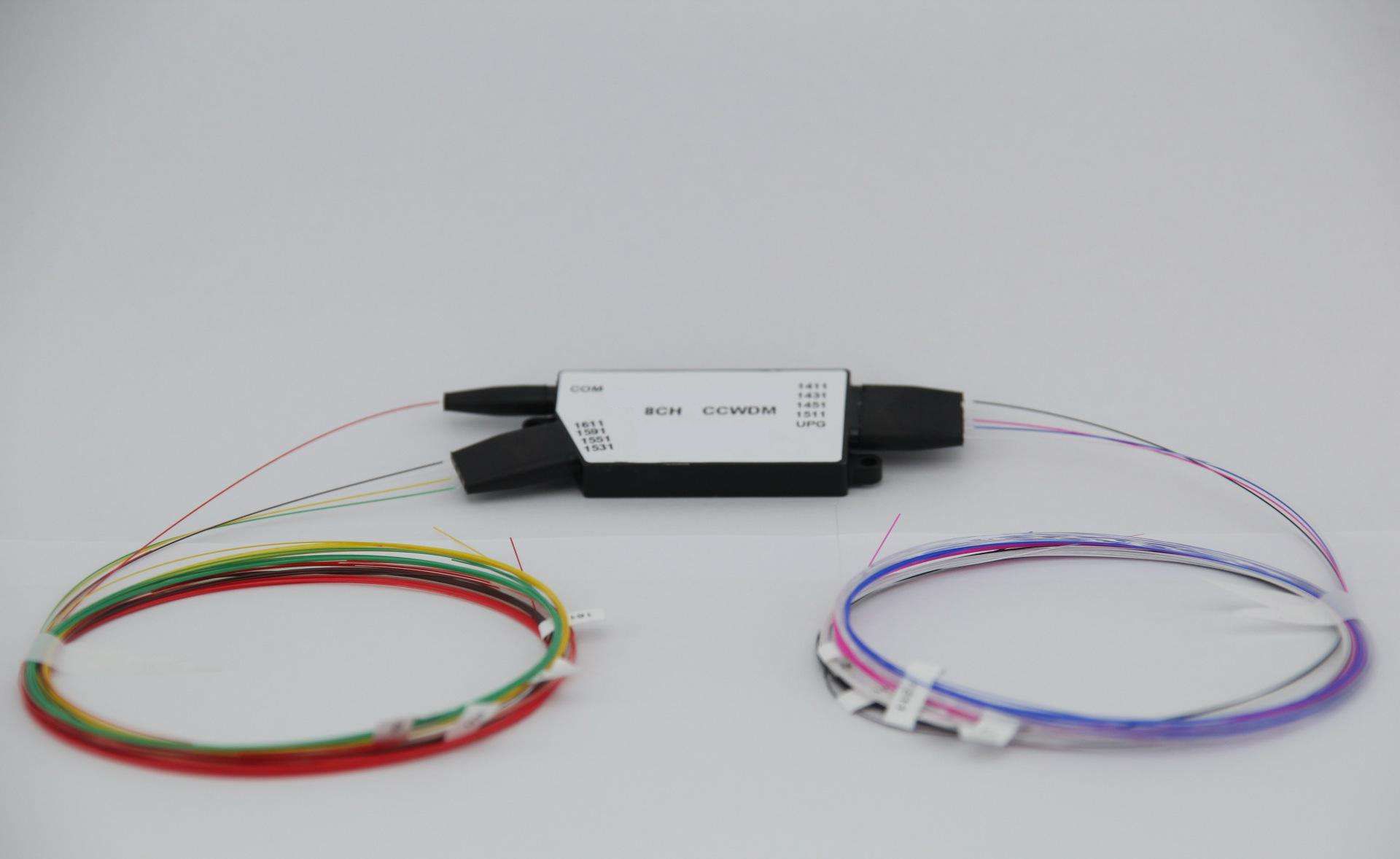

4-8 Channel Ccwdm Mux&Demux Module

4-8 Channel Ccwdm Mux&Demux Module
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CCWDM-20-4/ 8-1471-0-00-LC/PC-M/D
Usage: CATV, FTTH, Wdm Systems
Type: Wireless
Support Network: Ethernet
Information Content: Data
Certification: RoHS
Condition: New

Product Description

4-8 Channel CCWDM Mux&Demux Module

Features

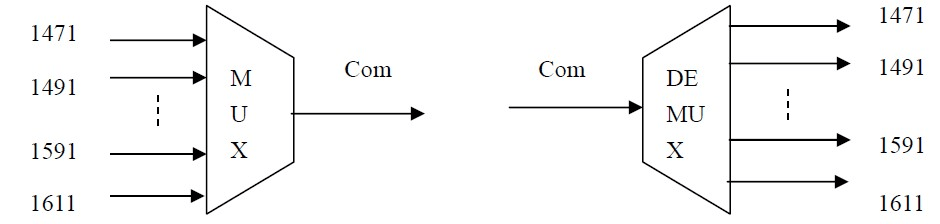

Product application drawing



Applications
Optic and/or Electric Specification

ItemParametersUnitValueNote
1Channel NumberNA4/ 8
2Operating wavelengthNA1260-1620, 1460-1620
3Channel Spacing nm20
4Center Wavelength(Channel)nmITU, ITU+1
5Pass Band nmITU±6.5
6Ripple over Pass BanddB≤0.5
7Channel Insertion LossdB4channle≤ 1.0, 8channel≤ 1.51
8Adjacent Channel IsolationdB≥30
Non-Adjacent Channel IsolationdB≥45
9Insertion Loss Thermal StabilitydB/ºC≤0.007
10Wavelength Thermal Stabilitynm/ºC≤0.002
11Return lossdB≥45
12DirectivitydB≥50
13PDLdB≤0.20
14PMDPS≤0.10
15Power HandlingmW≤500
16Operating temperatureºC-5~+65
17Storage temperatureºC-40~85
18Dimensionsmm44*25*6

Note1: IL Without connector.

Pigtail and Connector

ItemParametersSpecificationNote
1Fiber Type (All ports)SMF28e
2Connector Type (All ports)LC/PC with Duplex Adaptor

Order Information

   CCWDM-20-4/8-1471-0-00-LC/PC-M/D
CCWDMCoarse Wavelength Division Multiplexer
20Channel Spacing: 20nm
88 channels
1471Transmission starts at 1471nm
0NA
00NA
LC/PCConnector Type: LC/PC
M/DMux & Demux in one package


Shenzhen Link-all Technology Ltd (manufacturer) was founded in 2012, and we have been endeavored in research and development, production and sale of passive optical components and modules, all kinds of transceivers, PLC Splitters, broadband access products and so on.

The predecessor of our company Unisky Creacom Technology Co., Ltd (Trading company ) was founded in 2006, Since then, we've provided to major Telecomm Operators of Hong Kong, Macao and Singapore with multiple communication products and solutions, The outstanding features and advantage are professional and excellent sales team, efficient and orderly management, competitive price, extensive superior sales channels, as well as high standard quality and flexible prices

Over the years we have gained extensive technical expertise as well as practical experience in the field of optic communication products. Link-all is committed to product design, research and development, manufacturing, service support for global data center, cloud computing, TV broadcasting network, metro network, broadband access network and so on.

Up to now, Link-all's products have been shipped to over 60 countries including USA, Europe, South America, Asia, Arica and other regions as well, we also have offered OEM and ODM custom design services to customers now, welcome any inquiries. Join us today, let's shake hands and create double wind world.
