4 Buttons 433MHz RF Universal Remote Control Kl300-4

Name: 4 Buttons 433MHz RF Universal Remote Control Kl300-4
Brand: all-electronics-online.com
SKU: 825783605
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	US $ 1.5-2.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL300-4
Ambient Temperature:	-20 C -- +50 C
Adjustable Frequency:	250-460MHz
Weight/G:	32g
Current/Ma:	12
Frequency:	315MHz, 433MHz, Optional
Buttons:	4
Application:	Gates/Door
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

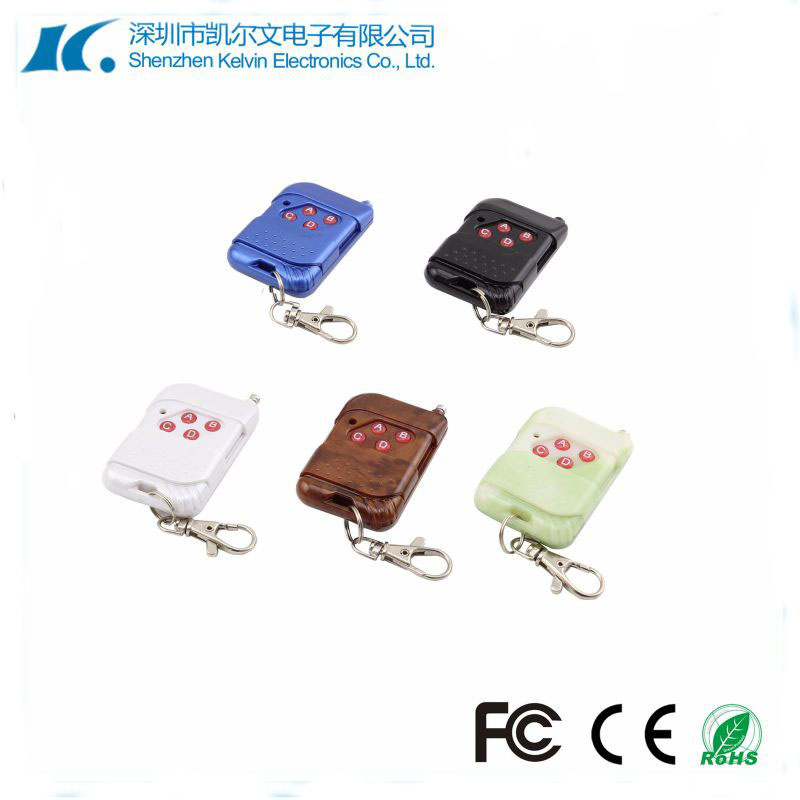

4 buttons 433MHz RF universal remote control KL300-4

Technical SpecificationsSize and weight

Weight	32g
Dimension	583814mm
Relative humidity	5% to 95% noncondensing

Power and batteryBattery type: 12V 27A AlkalineEnvironmental requirementsOperating temperature: -4° to 122° F (-20° to 50° C)Relative humidity: 5% to 95% noncondensingFace to face copy: fixed code ,learning code and so on,Copy / Clone Instructions
Step 1 - Code Clear
To clear factory preset codes used for testing purpose, you need to do the following.
Press and hold the top two buttons (lock and unlock label) at the same time for approximately 3 seconds, then LED indicator flashes three times, followed by a continuous slow blinking, indicating that the remote control codes stored is deleted.

Step 2 - Code Clone
Place the original remote c

ontrol and copy remote close together (<10mm). Press and hold one button on your original remote and the button on copy remote which you wish to be programmed on at the same time for approximately 3 seconds, then LED indicator flashes three times, followed by a continuous fast blinking, indicating that the button is successfully copied.

Repeat the above clone step for other buttons you wish to copy.
NOTE: The best duplicating position varies depending on the original remote control you are using, you can try different positions until the code is successfully copied.

Code Recovery - Use ONLY when you mistakenly removed the code copied
Press and hold the left two buttons (lock and mute label) at the same time for approximately 3 seconds, then LED indicator flashes three times and stops blinking, indicating that the original remote control codes have been restored.
The alternate way to code recovery step is clear the codes and relearn them again.

Note: This gadget DO NOT copy rolling code or hopping code remote controls.

Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.

Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established

Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB

Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Prospects for development: Bright future is coming
