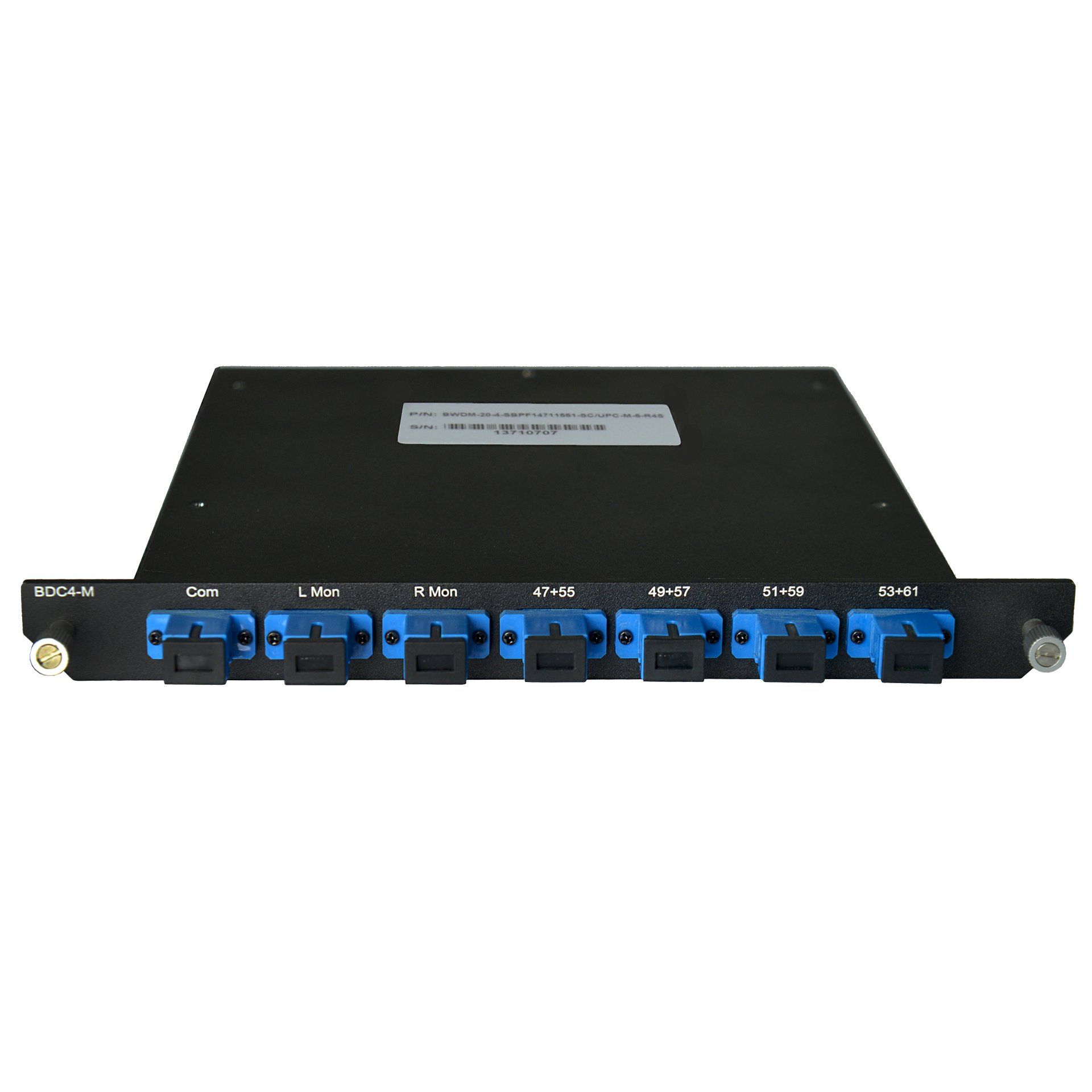

4 channel BIDI CWDM Mux&Demux Plug-in Module

Product Overview

4 Channels BiDi Coupler with Monitor ports, 20nm Channel Space 1RU 19" rack mount chassis, 4 slots & Standalone
with 5% Power Monitor

Features

Cost-effective CWDM technology
Terminates eight wavelengths
Reliable passive thin film filter WDM optical technology
Low optical insertion loss
Low-profile modular design

Applications

Metro Network
Access Network
FTTH Application
Unidirectional network traffic rings
Point-to-point applications
CATV Fiberoptic Links

Performance Specification

No.	Parameter	Unit	Specification
3.1	Operating Wavelength	nm	1260~1620
3.2	Channel Spacing	nm	20
3.3	Channel Number	N/A	4
3.4	Central Channel	N/A	1471/1551 1491/1571 1511/1591 1531/1611
3.5	Pass Bandwidth	nm	l ITU-T±6.5
3.6	CWDM→MON L(5% tap) Insertion Loss	dB	≤17
3.7	CWDM→MON R(5% tap) Insertion Loss	dB	≤14.5
3.8	Insertion Loss (with connector)	dB		Demux	Mux
			CH1(1471+1551)	≤1.8	≤3.4
			CH2(1491+1571)	≤2.3	≤2.8
			CH3(1511+1591)	≤2.8	≤2.3
			CH4(1531+1611)	≤3.4	≤1.8
3.9	End to End Insertion Loss	dB	≤5.2
3.10	Ripple over Pass Band	dB	≤0.5
3.11	Adjacent Channel Isolation	dB	≥30
3.12	Non- adjacent Channel Isolation	dB	≥45
3.13	Insertion Loss Thermal Stability	dB/ºC	≤0.006
3.14	Wavelength Thermal Stability	nm/ºC	≤0.002

3.16	Directivity	dB	≥55
3.17	PDL	dB	≤0.25
3.18	PMD	PS	≤0.15
3.19	Power Handling	mW	300
3.20	Connector Type		SC/UPC or Customer Specified

Pigtail and Connector

NO	PARAMETER	SPECIFICATION	Remark
6.1	Fiber Type	Corning SMF-28e with ¢2mm tube, color yellow	Or customer specified
6.2	Pigtail length	1000+/-50 mm	Or customer specified
6.2	Connector Type	SC/UPC	Or customer specified

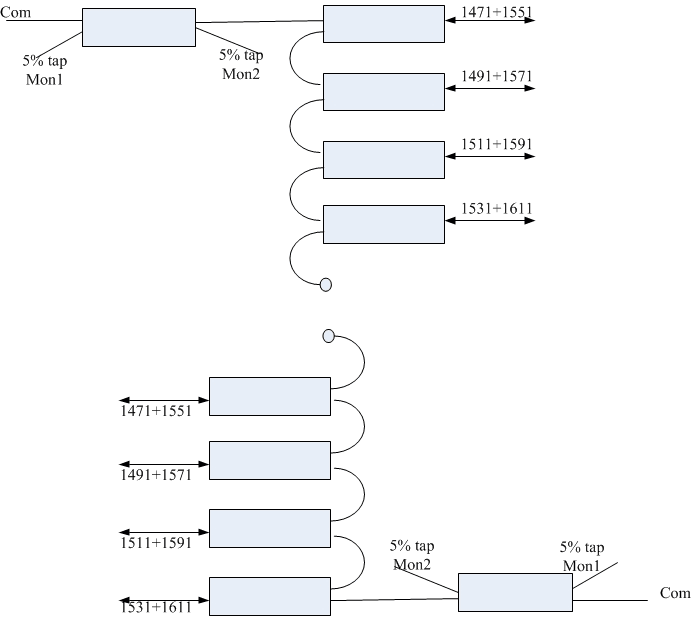

Product Application Drawing

Order Information

a. Chassis

4-slot, 19'' 1RU Chassis

b. Plug-in Module

BWDM-20-4-DBPF14711551-SC/UPC-D/M-5-R4S

BWDM	Band WDM
20	Channel Spacing: 20nm
4	4 channels
DBPF14711551	Dual Band Pass Fiber, channel 1 transmission starts at 1471 & 1551 nm
SC/UPC	Connector type: SC/UPC
D/M	Mux Or Demux
5	Power monitor port at 5%
R4S	19" 1RU rack-mount with 4 slots

c. Standalone

BWDM-20-4-DBPF14711551-20-1-SC/UPC-D/M-5

BWDM	Band WDM
20	CWDM
4	4 channels
DBPF14711551	Dual Band Pass Fiber, channel 1 transmission starts at 1471 & 1551 nm
20	¢2.0mm fiber
1	Pigtail Length: 1m
SC/UPC	Connector type: SC/UPC
D/M	Mux Or Demux
5	Power monitor port at 5%
