| Prod Model: |
Fiber Optic Video converter |
| Transmission Wavelength: |
1310nm&1470nm~1610nm |
| Size(mm): |
113*95*25 |
| Weight: |
0.175kg/Set |
| Mode Type: |
Single Mode |
| Interface Type: |
1 Sc + 1 RJ45 |
| Transmission Distance: |
20km |
| Signal: |
Video+Data |
| Operating Voltage: |
DC5V |
| Operating Temperature: |
-10°c~75°c |
| Storing Temperature: |
-40°c~85°c |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
GS |
| Condition: |
New |
Product Description

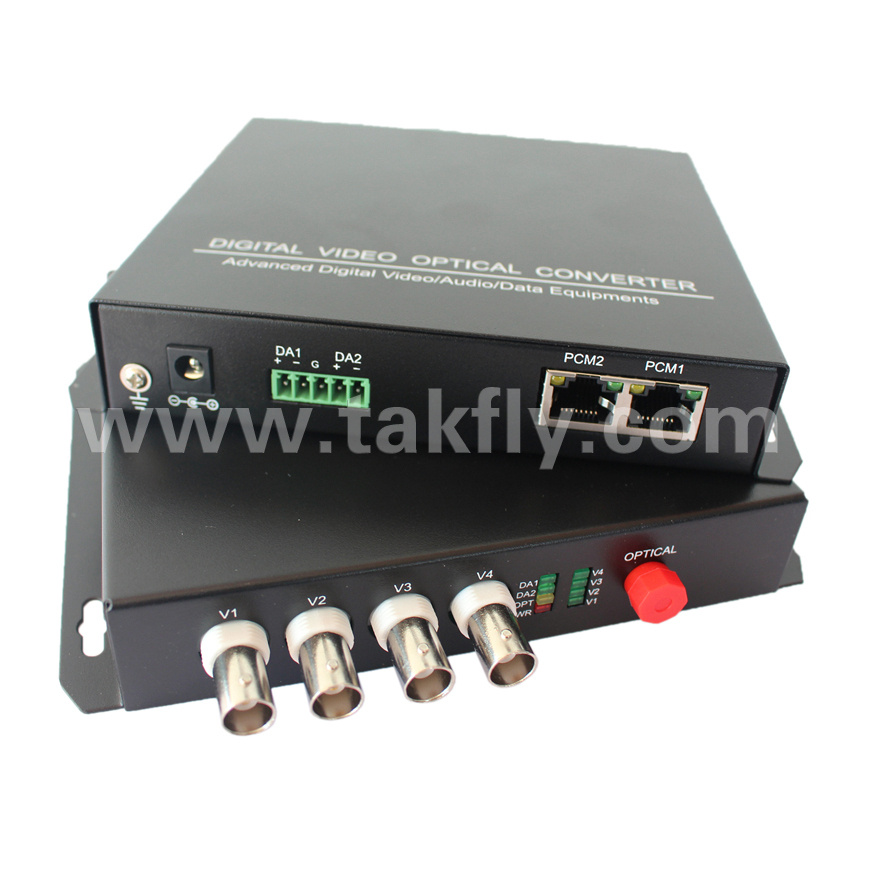

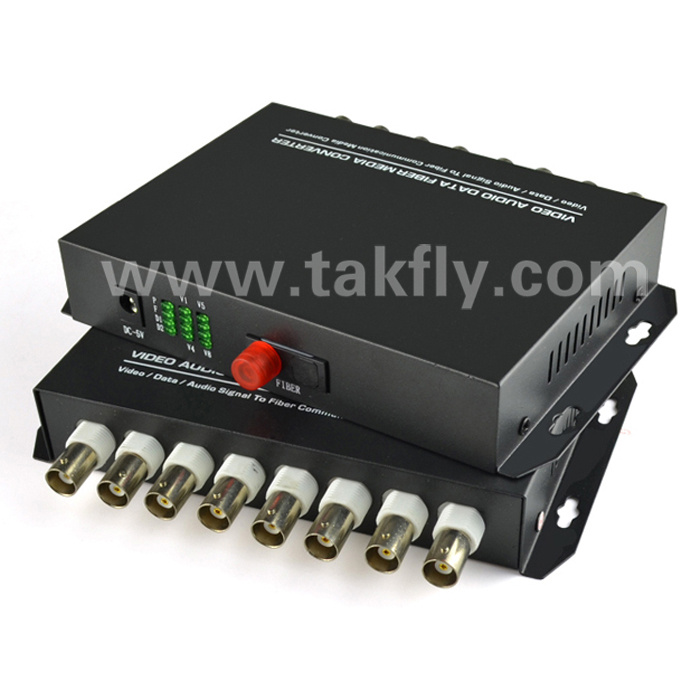

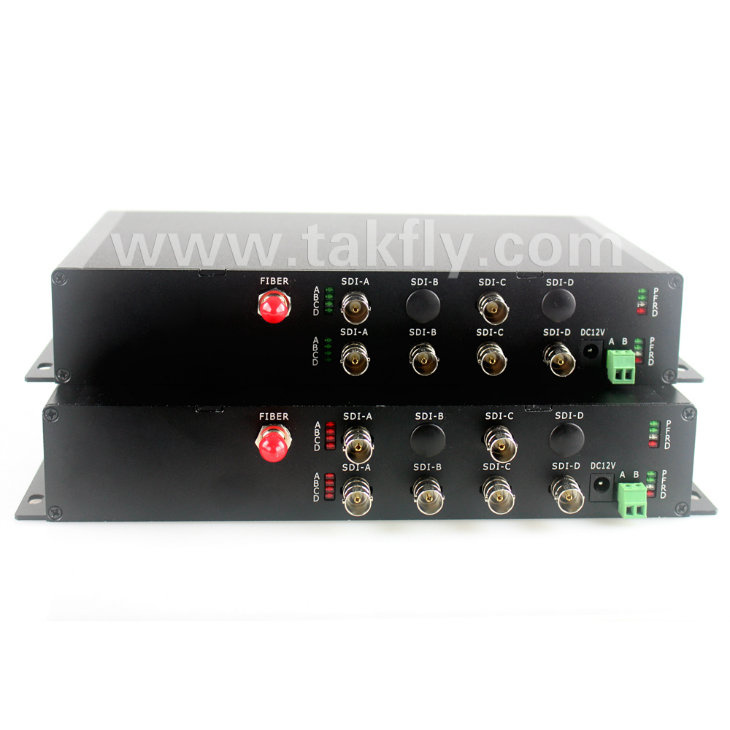

4 Channel Digital Video Audio Data Fiber Optical Video Multiplexer
Product Description:Fiber optic video transceivers can simultaneously transmit 1-8 channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one multimode or single-mode optical fiber.
These multiplexers are typically used in applications where the cameras have P/T/Z capabilities.
Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.
Product Characteristics: 8-bit digitally encoded and non-compression broadcast quality video transmission
Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols
Support any high-resolution video signal
Automatic compatible PAL, NTSC and SECAM video system
Power supply and other parameter state indication, which can monitor the operation condition of system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range, no Electrical or Optical Adjustments Required .
Special ASIC design.
Industry-grade of operating temperature from -40ºCto 85ºC, which is applied to the different working environment
Hot-swap function

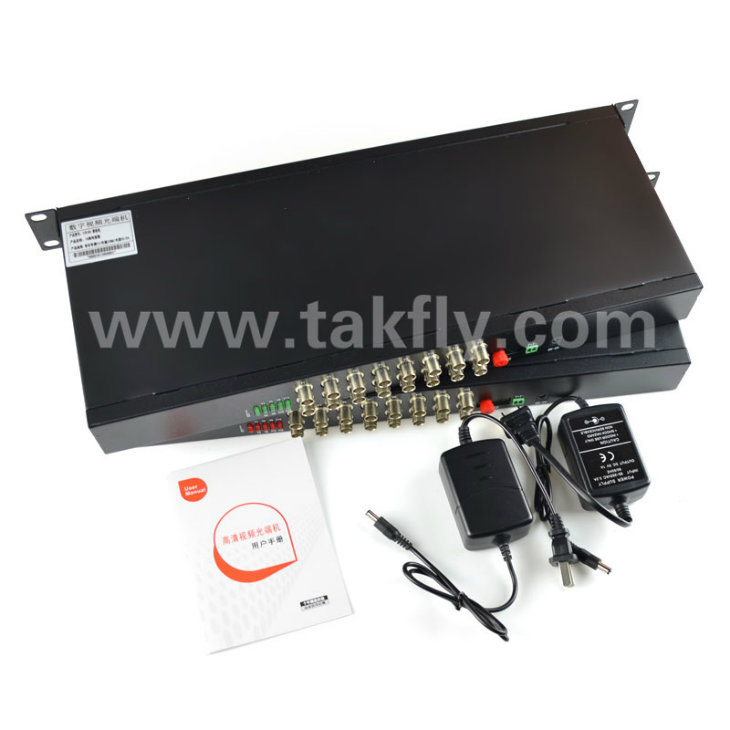

Stand-alone type or card-type installed in 19'' 2U or 4U rack-mount chassis.
Applications:Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance
Coliseum using for TV-live ,audio transmission
Technical Specification:
Operating Voltage: DC5V (we will offer external power supply from AC96-240V to DC5V for each unit )
Operating Temperature: -40ºCto +85ºC
Storing Temperature : -55ºC to +85ºC
Humidity: 0 to 95% non-condensing
MTBF: ≥ 105 hours
Warranty: 3 years
| Video channels | 1 channel |
| Video bandwidth | 8 MHz |
| Automatic compatible video system | PAL, NTSC, SECAM |
| Video input / output impedance | 75 Ω (unbalance) |
| Video signal-to-noise ratio | ≥67dB |
| Differential gain | (10%-90%APL) DG <1% (typical value) |
| Differential phase | (10%-90%APL) DP <0.7° (typical value) |
| Video connector | BNC |
| Fiber-optic Specification | F/O connector: FC/ST/SC
TX: Power: -5 ~ -0dBm Sensitivity: ≤-34dBm
RX: Power:-5 ~ -0dBm Sensitivity: ≤-34dBm
Transmission Distance: 60KM (single mode)
Operating Wavelength: TX1310/RX1550nm (Transmitter)
TX1550/RX1310nm (Receiver) |
| Specification of custom-made options |
| Data | Connector: Terminal Blocks
Encoded type: RS485 / RS422 / RS232 / Manchester
Data rate: 0 - 400Kbps
BER: ≤10-9 |
| Audio | Connector: Terminal Blocks
Audio input / output impedance: 600Ω (Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted) |
| Telephone | Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO |
| Ethernet | Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M |
Dimensions: 11.1(L)×10.7(W)×2.8(H) cm
| Video channels | 4 channels |
| Video bandwidth | 8 MHz |
| Automatic compatible video system | PAL,NTSC,SECAM |
| Video input / output impedance | 75 Ω(unbalance) |
| Video signal-to-noise ratio | ≥67dB |
| Differential gain | (10%-90%APL) DG <1% ( typical value) |
| Differential phase | (10%-90%APL) DP <0.7° ( typical value) |
| Video connector | BNC |
| Fiber-optic Specification | F/O connector: FC/ST/SC
TX :Power:-5 ~ -0dBm Sensitivity :≤-34dBm
RX:Power:-5 ~ -0dBm Sensitivity :≤-24dBm
Transmission Distance :60KM (single mode) Operating Wavelength: TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver) |
| Specification of custom-made options |
| Data | Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER: ≤10-9 |
| Audio | Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted) |
| Telephone | Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO |
| Ethernet | Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 100M / 1000Mbps
Bandwidth: 25M |
Dimensions :19.2(L)×17.3(W)×2.8(H) cm
| Video channels | 8 channels |
| Video bandwidth | 8 MHz |
| Automatic compatible video system |
PAL,NTSC,SECAM |
| Video input / output impedance | 75 Ω(unbalance) |
| Video signal-to-noise ratio | ≥67dB |
| Differential gain | (10%-90%APL) DG <1% ( typical value) |
| Differential phase | (10%-90%APL) DP <0.7° ( typical value) |
| Video connector | BNC |
| Fiber-optic Specification | F/O connector: FC/ST/SC
TX :Power:-5 ~ -0dBm Sensitivity :≤-34dBm
RX:Power:-5 ~ -0dBm Sensitivity :≤-24dBm
Transmission Distance :60KM (single mode) Operating Wavelength: TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver) |
| Specification of custom-made options |
| Data | Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER: ≤10-9 |
| Audio | Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted) |
| Telephone | Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO |
| Ethernet | Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 100M / 1000Mbps
Bandwidth: 25M |
Dimensions :19.2(L)×17.3(W)×5.6(H) cm
